Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (3) from the license lamp.
  2. Remove the license lamp (1) from the rear bumper fascia.
  3. Remove the bulb/socket from the license lamp by rotating counterclockwise.
  4. Remove the bulb from the socket, if required.

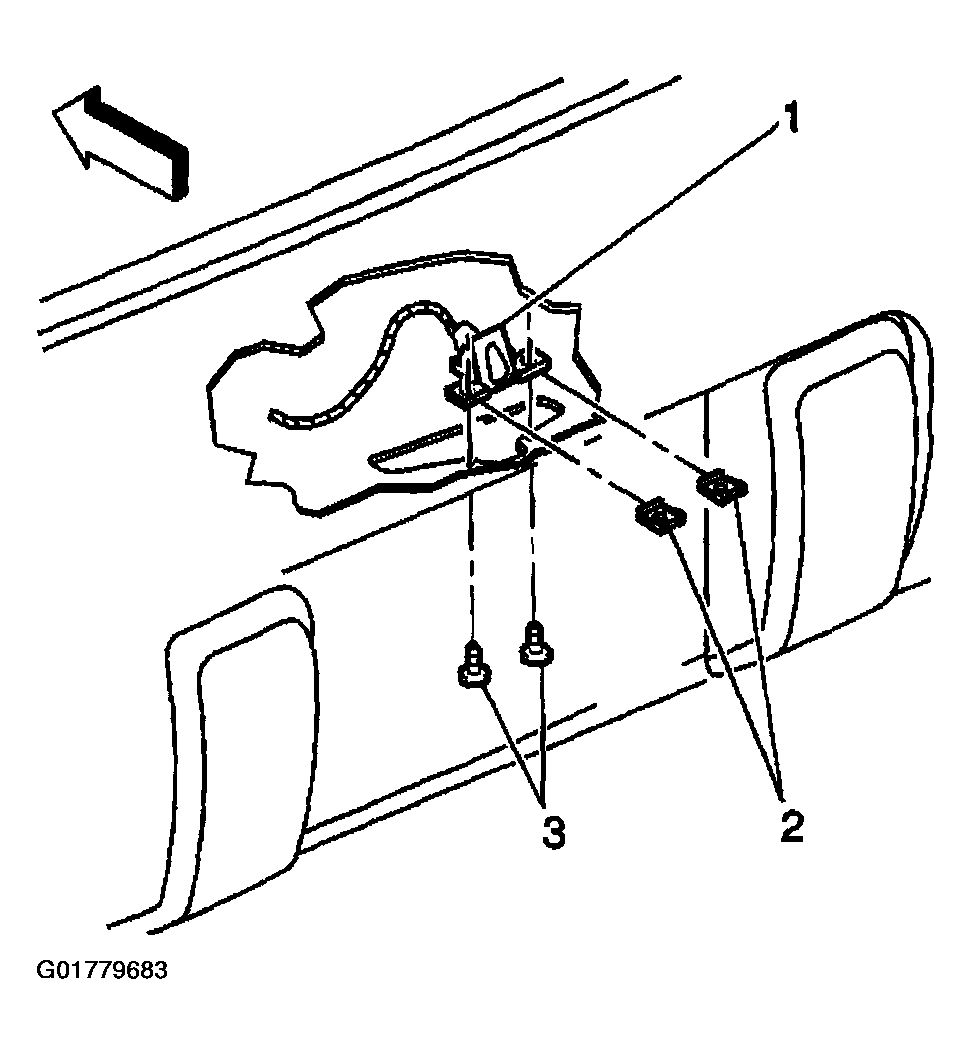

    Fig 1: Removing License Lamp
    G01779683Courtesy of GENERAL MOTORS CORP.
