Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container pressing in until fully seated.
  2. Position the washer pump to the washer solvent container pressing in until fully seated.
  3. Connect the washer hose.
  4. Connect the washer pump electrical connector.
  5. Install the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  6. Fill the washer solvent container with washer solvent.

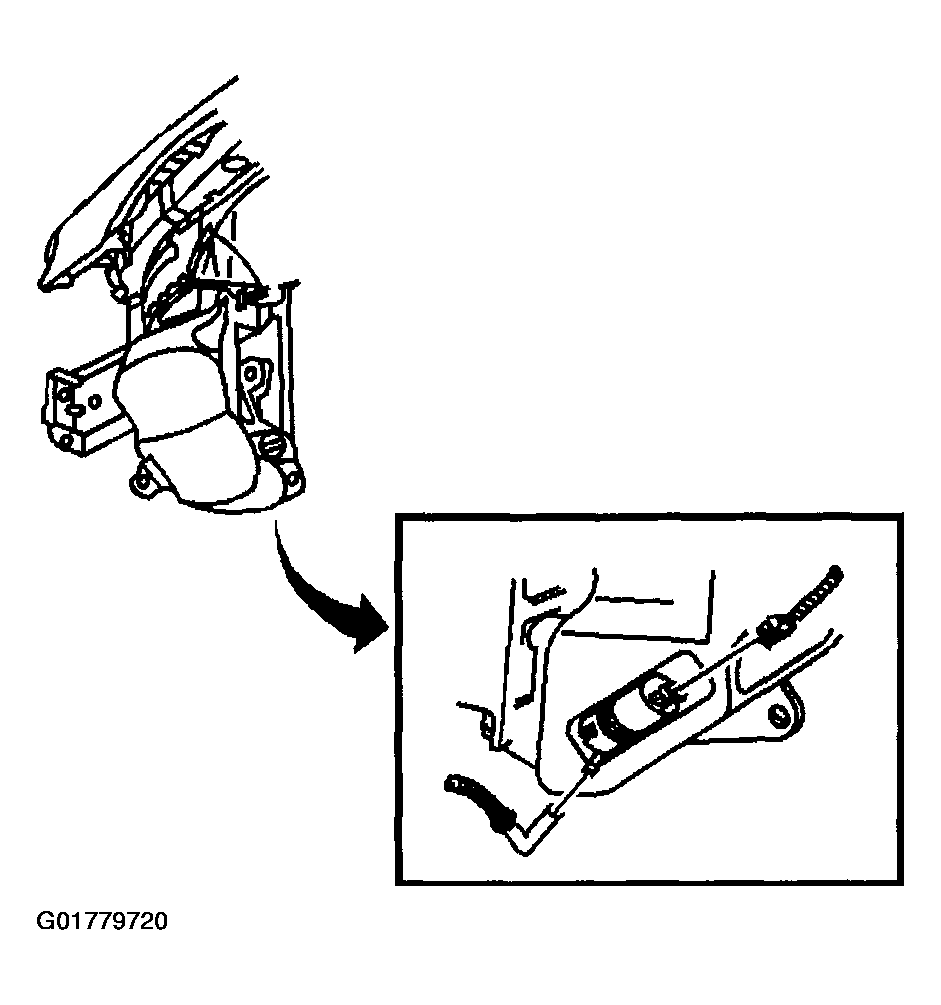

    Fig 1: Installing Washer Pump
    G01779720Courtesy of GENERAL MOTORS CORP.
