Removal Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

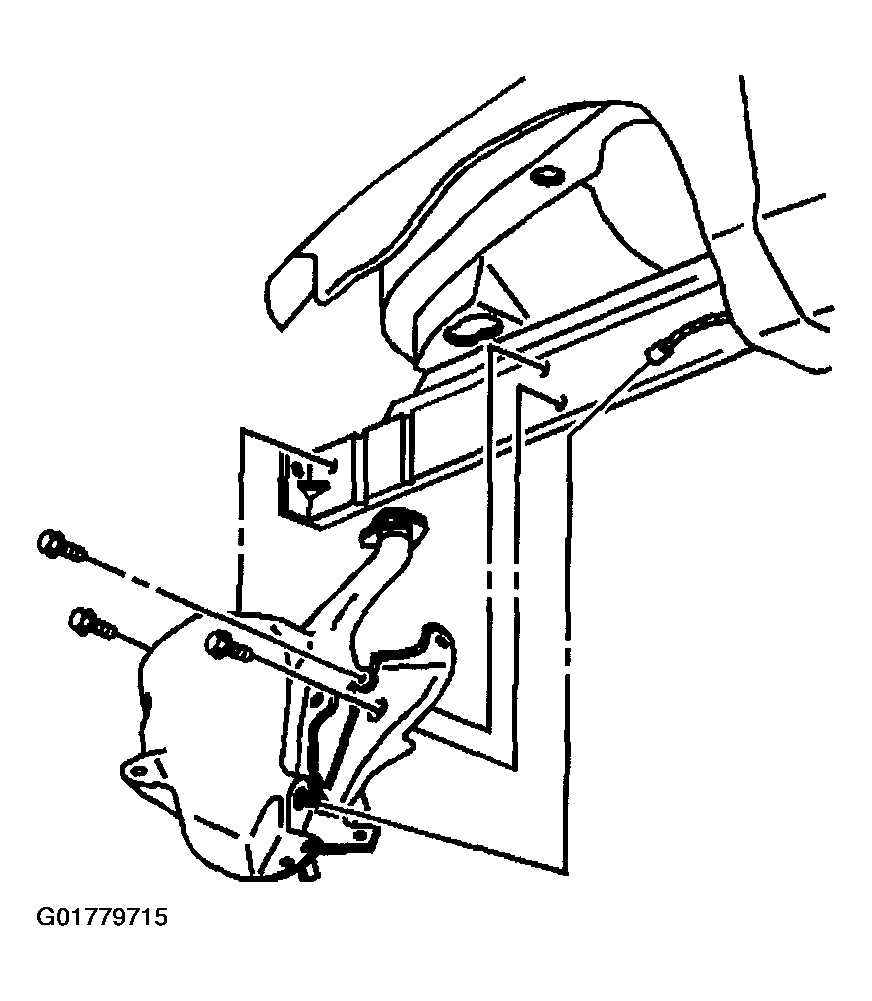

- Remove the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
- Disconnect the washer solvent container level sensor electrical connector.
Courtesy of GENERAL MOTORS CORP.
Important: The washer solvent will drain from the washer solvent container when the washer solvent container level sensor is removed. Place a suitable drain pan under the container before removing the washer solvent container level sensor.

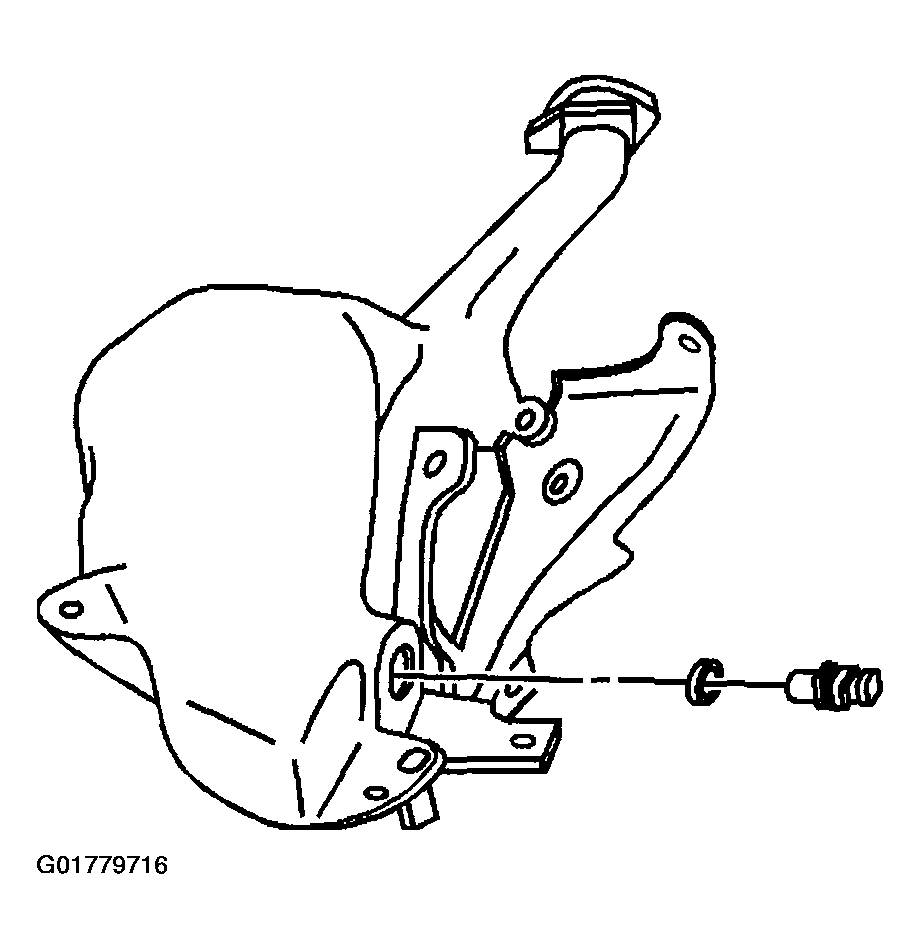

- Using a small flat-bladed tool, remove the washer solvent container level sensor from the washer solvent container.
- Using a small flat-bladed tool, remove the seal from the washer solvent container.
