Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the frame rail.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the washer solvent container screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  3. Connect the washer solvent level sensor electrical connector.
  4. Connect the washer hose to the washer pump.
  5. Connect the washer pump electrical connector.
  6. Install the air cleaner intake duct.
  7. Fill the washer solvent container with washer solvent.

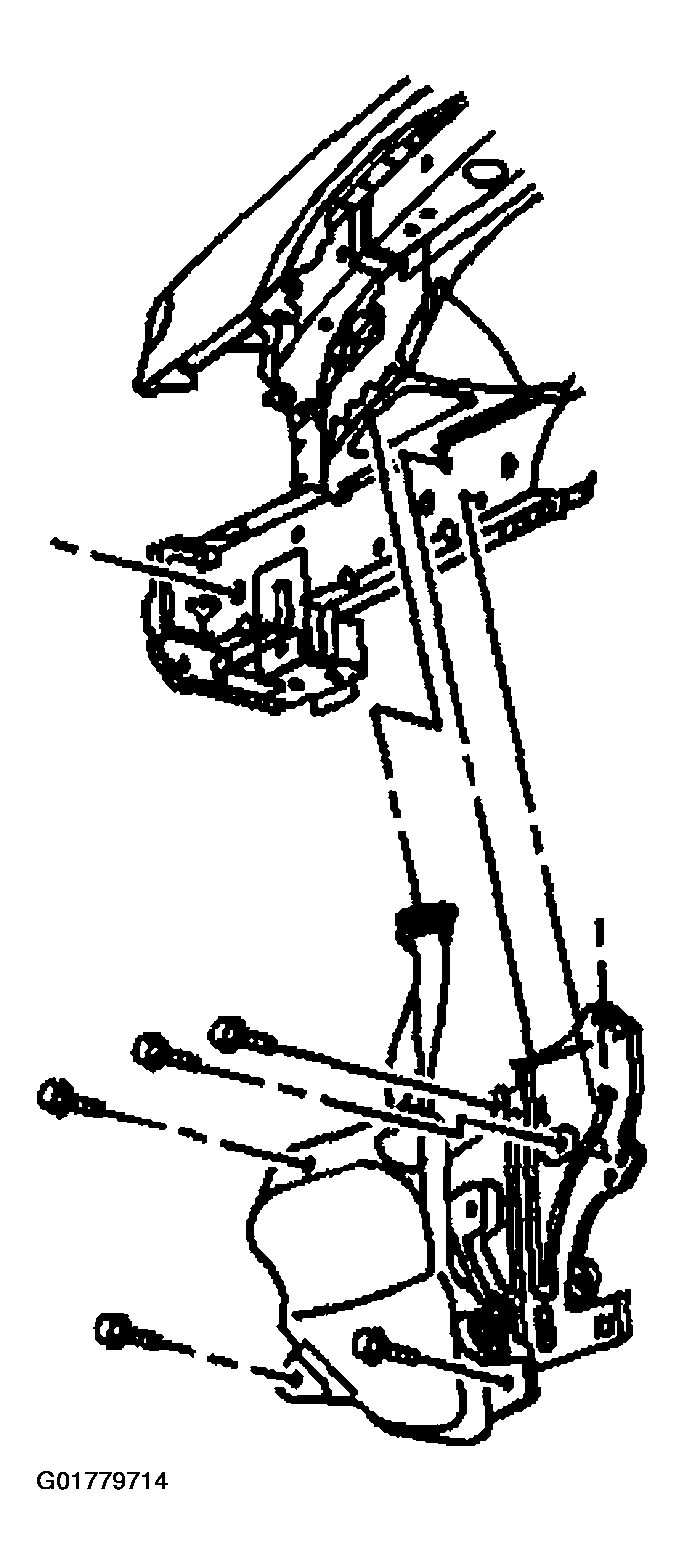

    Fig 1: Installing Washer Solvent Container
    G01779714Courtesy of GENERAL MOTORS CORP.
