Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor to the wiper transmission.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the wiper motor screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

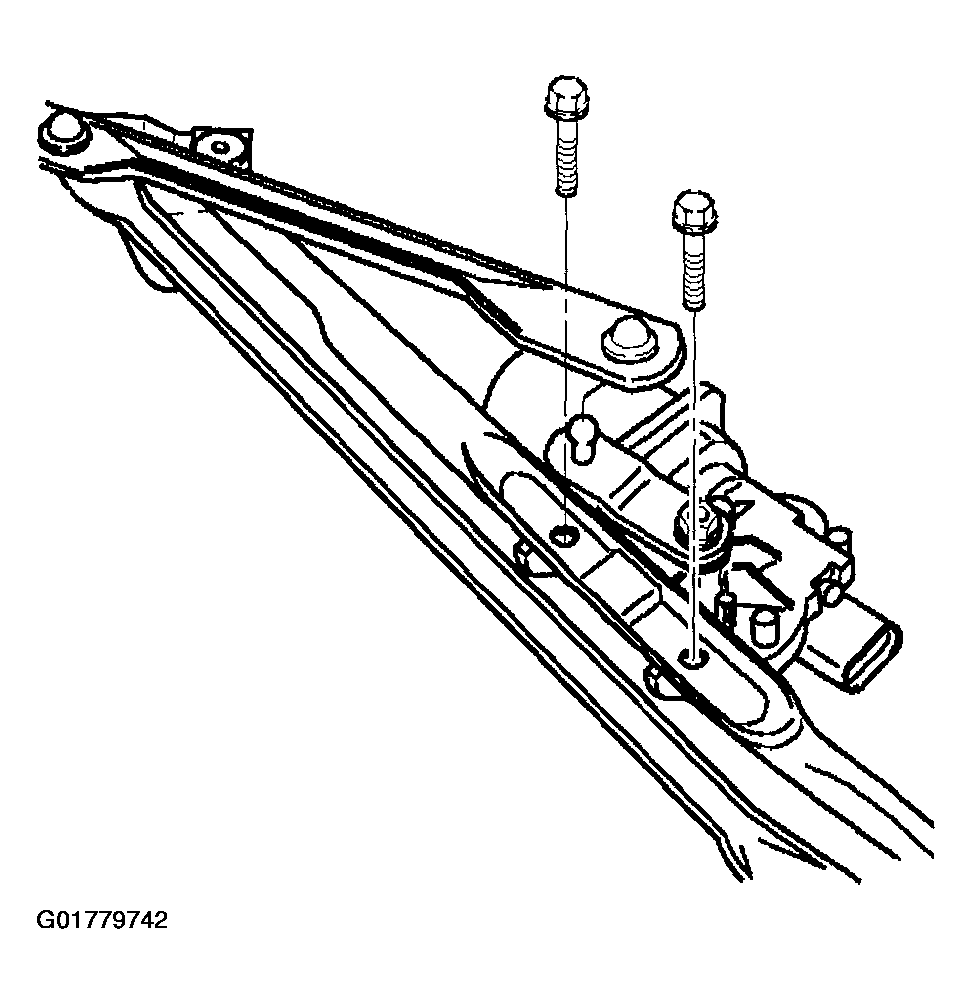

    Fig 1: Installing Wiper Motor
    G01779742Courtesy of GENERAL MOTORS CORP.
  3. Using the J 39529  , connect the wiper transmission to the wiper motor crank arm.

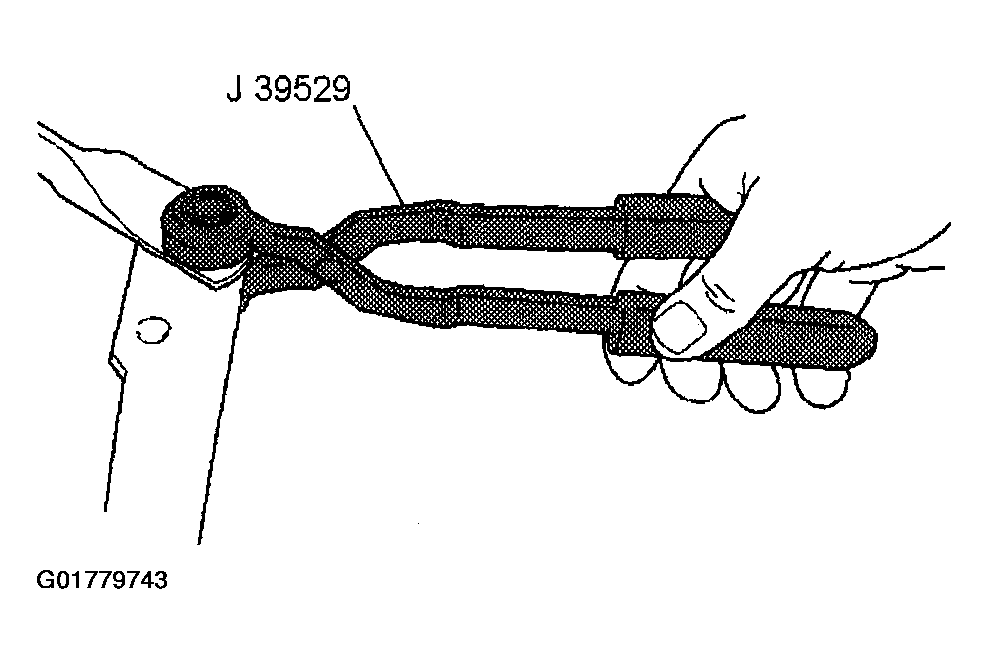

    Fig 2: Connecting Wiper Transmission
    G01779743Courtesy of GENERAL MOTORS CORP.
  4. Position the wiper drive system module to the vehicle.
  5. Install the wiper drive system module screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  6. Connect the wiper motor electrical connector.
  7. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .

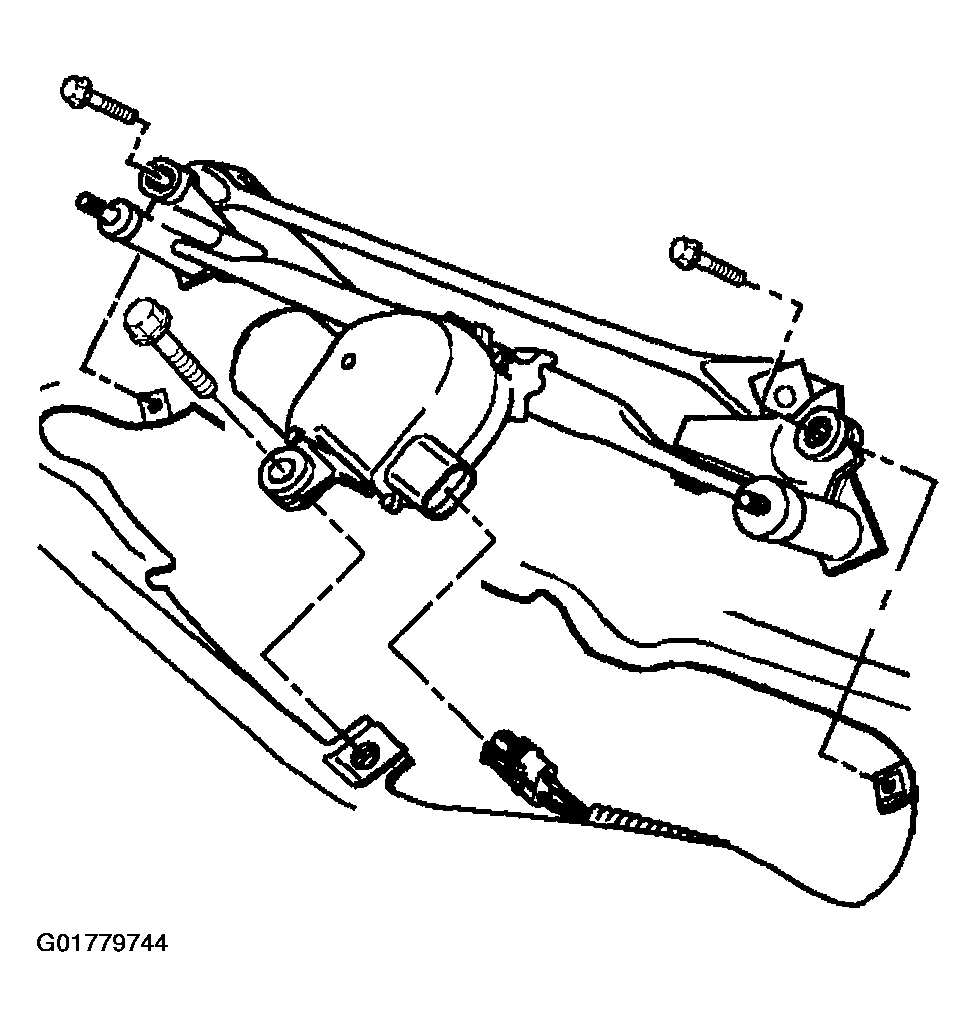

    Fig 3: Installing Wiper Drive System Module
    G01779744Courtesy of GENERAL MOTORS CORP.
