Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull back the rear compartment trim on the left side. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
  2. Loosen the nuts (3) on the amplifier bracket.
  3. Remove the amplifier (2) from the left wheelhouse, lifting up and pulling back.
  4. Disconnect the electrical connector (1) from the amplifier (2).
  5. Remove the amplifier (2) from the rear compartment.

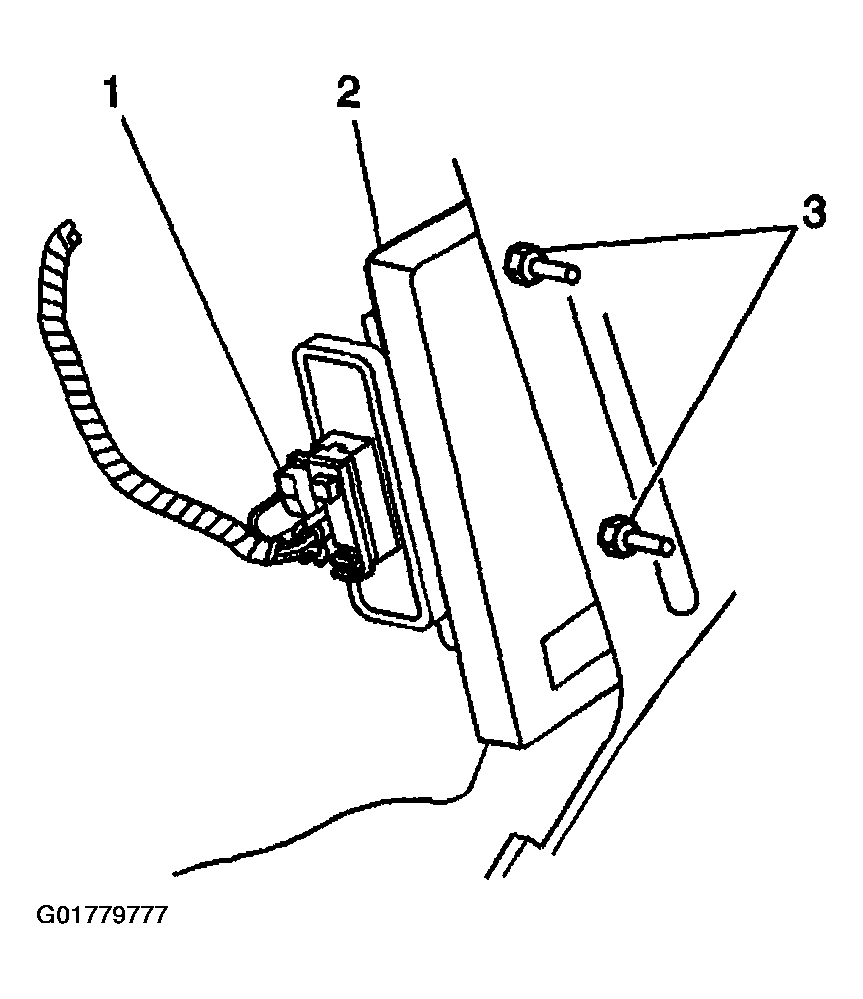

    Fig 1: Removing Amplifier
    G01779777Courtesy of GENERAL MOTORS CORP.
