Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the antenna extension cable (2) to the vehicle.

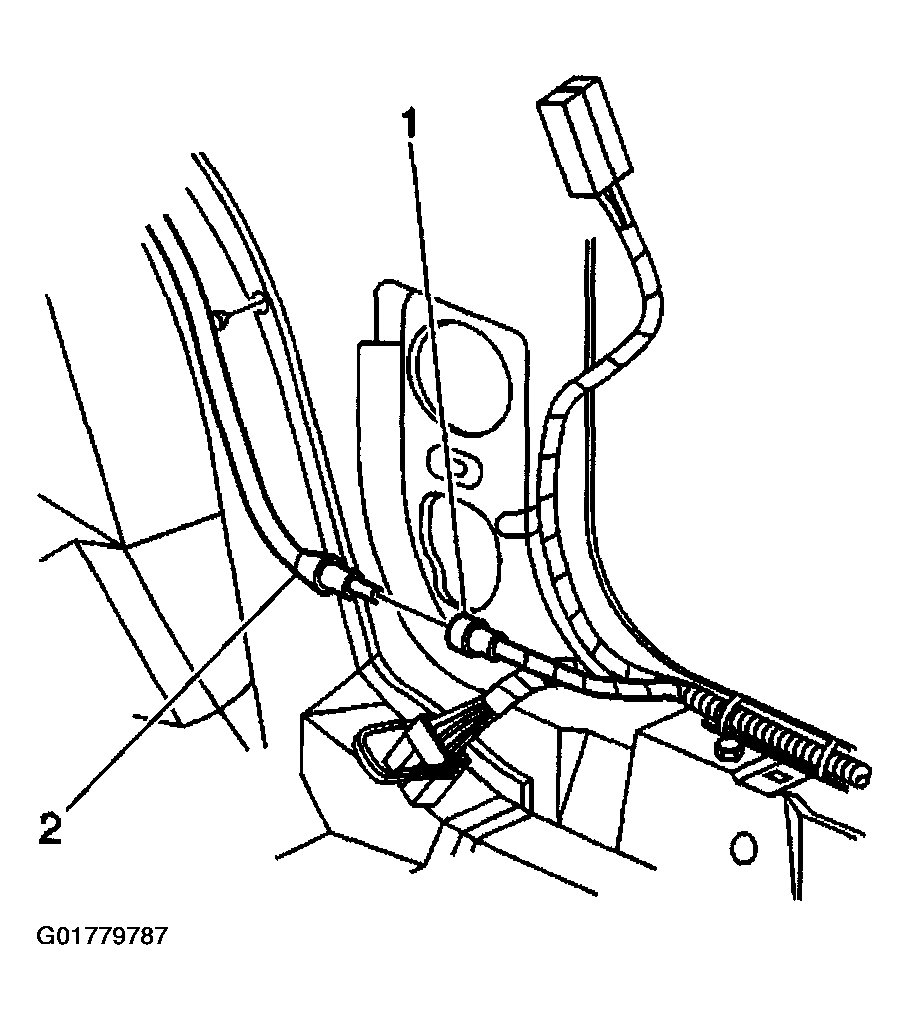

Fig 1: Installing Antenna Extension Cable
Courtesy of GENERAL MOTORS CORP.
Connect the antenna extension cable (2) to the main body harness (1).
Reposition the carpet to a desired appearance.
Install the right side carpet retainer. Refer to CARPET RETAINER REPLACEMENT .
Install the antenna extension cable rosebud retainers (2) to the instrument panel (1).

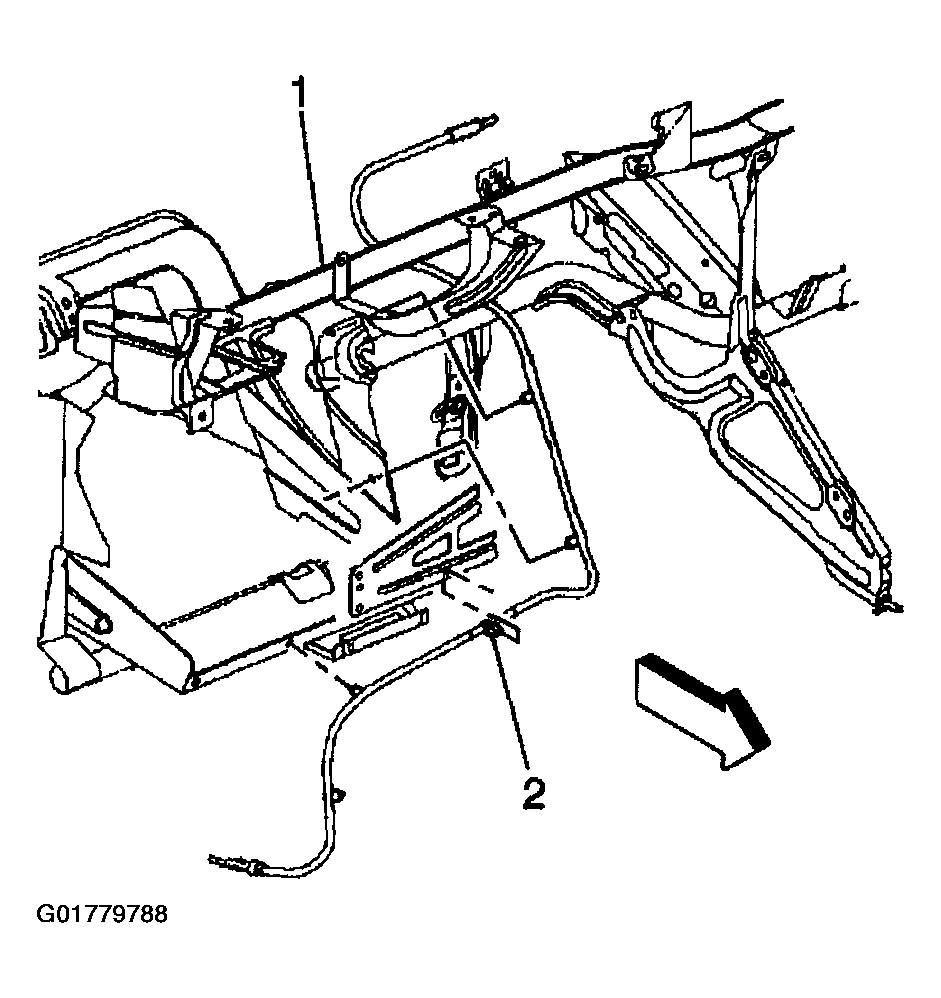

Fig 2: Installing Antenna Extension Cable Retainers

Courtesy of GENERAL MOTORS CORP.

Install the instrument panel storage compartment. Refer to COMPARTMENT REPLACEMENT -- IP .
Install the radio. Refer to Radio Replacement .
