Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT -- IP ACCESSORY .
  2. Remove the remote cassette player nuts (2) from the remote cassette player (1).
    Fig 1: Removing Remote Cassette Player Nuts
    G01779779Courtesy of GENERAL MOTORS CORP.
  3. Pull the remote cassette player (2) from the instrument panel (1) in order to gain access to the electrical connector (3).
  4. Disconnect the electrical connector (3) from the remote cassette player (2).
  5. Remove the remote cassette player (2) from the instrument panel (1).

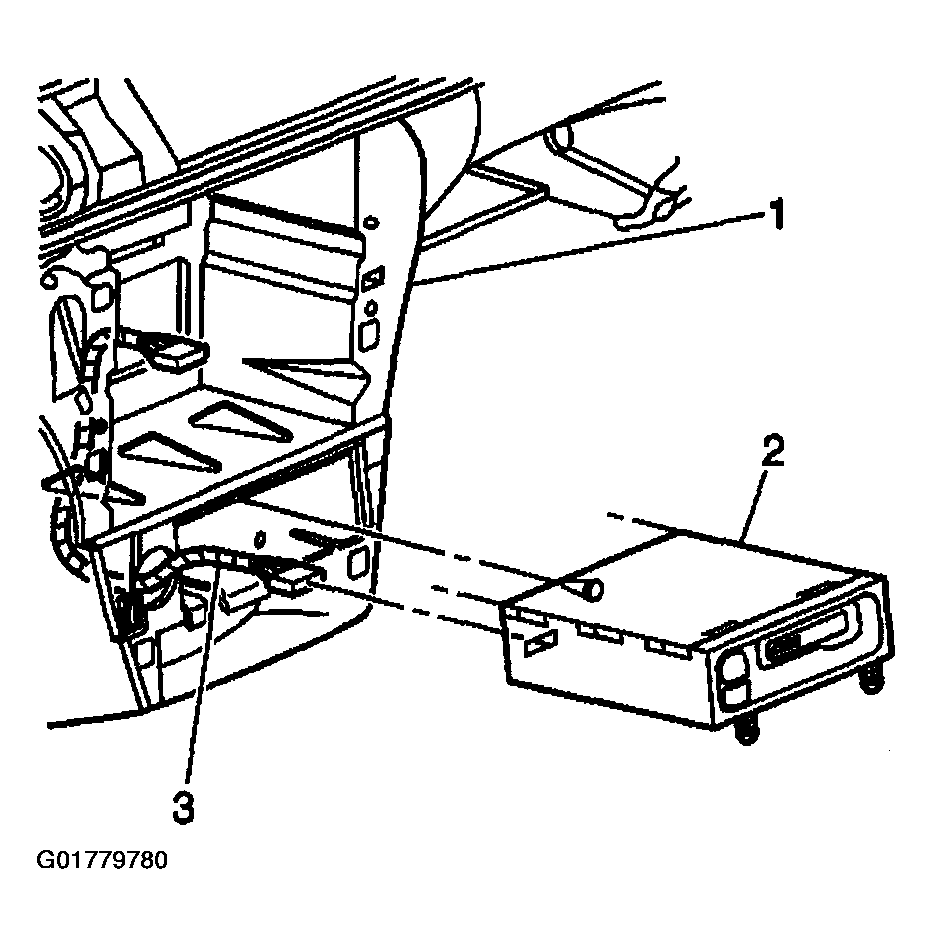

    Fig 2: Removing Remote Cassette Player
    G01779780Courtesy of GENERAL MOTORS CORP.
