Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the muffler to the hangers.

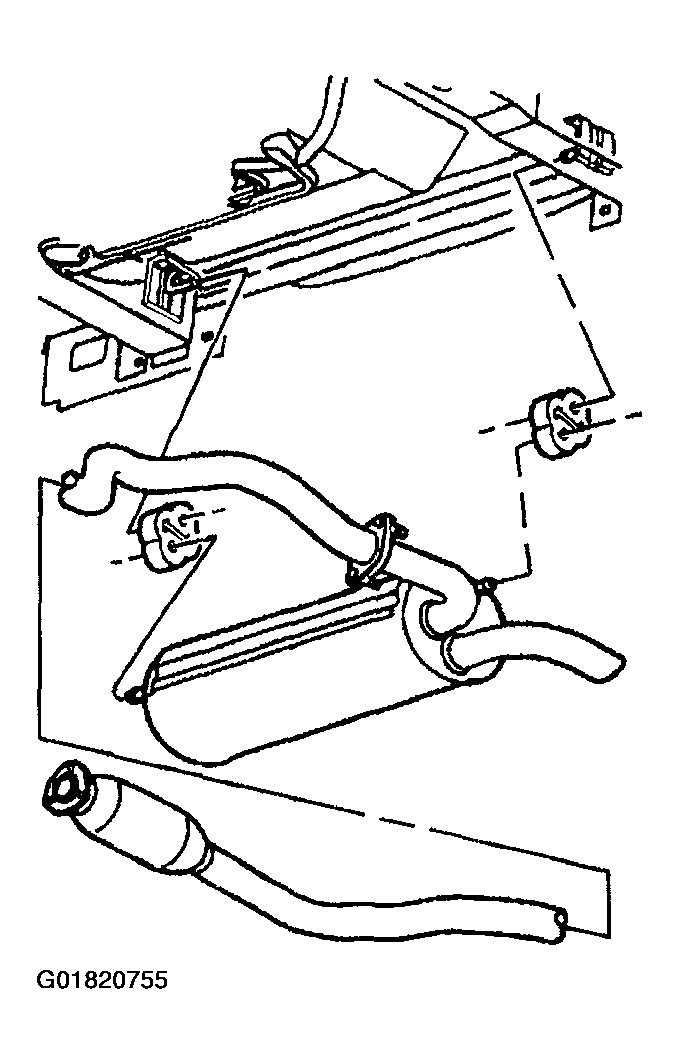

    Fig 1: Installing Muffler
    G01820755Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the muffler to the intermediate pipe nuts.

    Tighten

    Tighten nuts to 50 N.m (37 lb ft).

  3. Lower the vehicle.

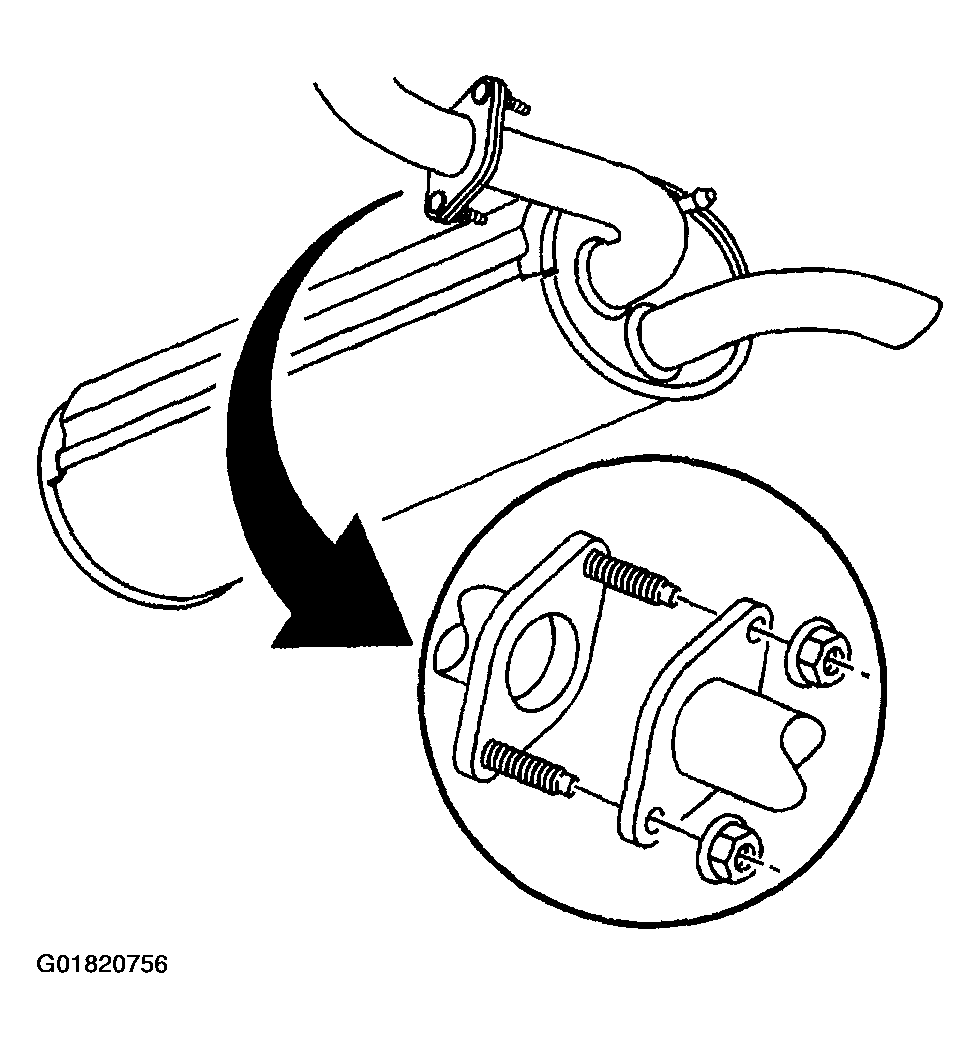

    Fig 2: Installing Exhaust Muffler To Intermediate Pipe
    G01820756Courtesy of GENERAL MOTORS CORP.
