Timing Chain Installation Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

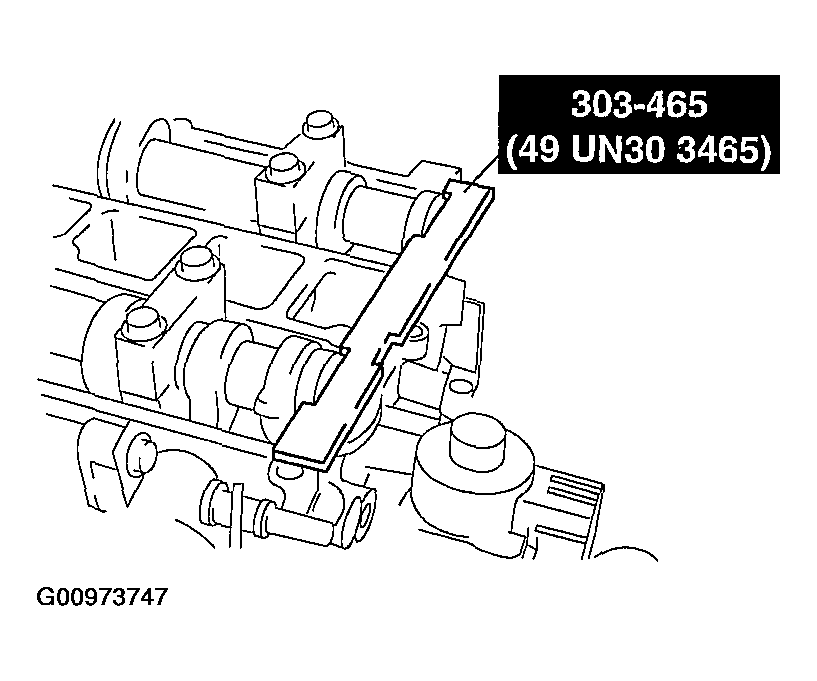

- Install the SST
to the camshaft as shown in the figure.
- Install the timing chain.
- Remove the retaining wire or paper clip from the auto tensioner to apply tension to the timing chain.
Courtesy of MAZDA MOTORS CORP.
