Interior Trim Location Index

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

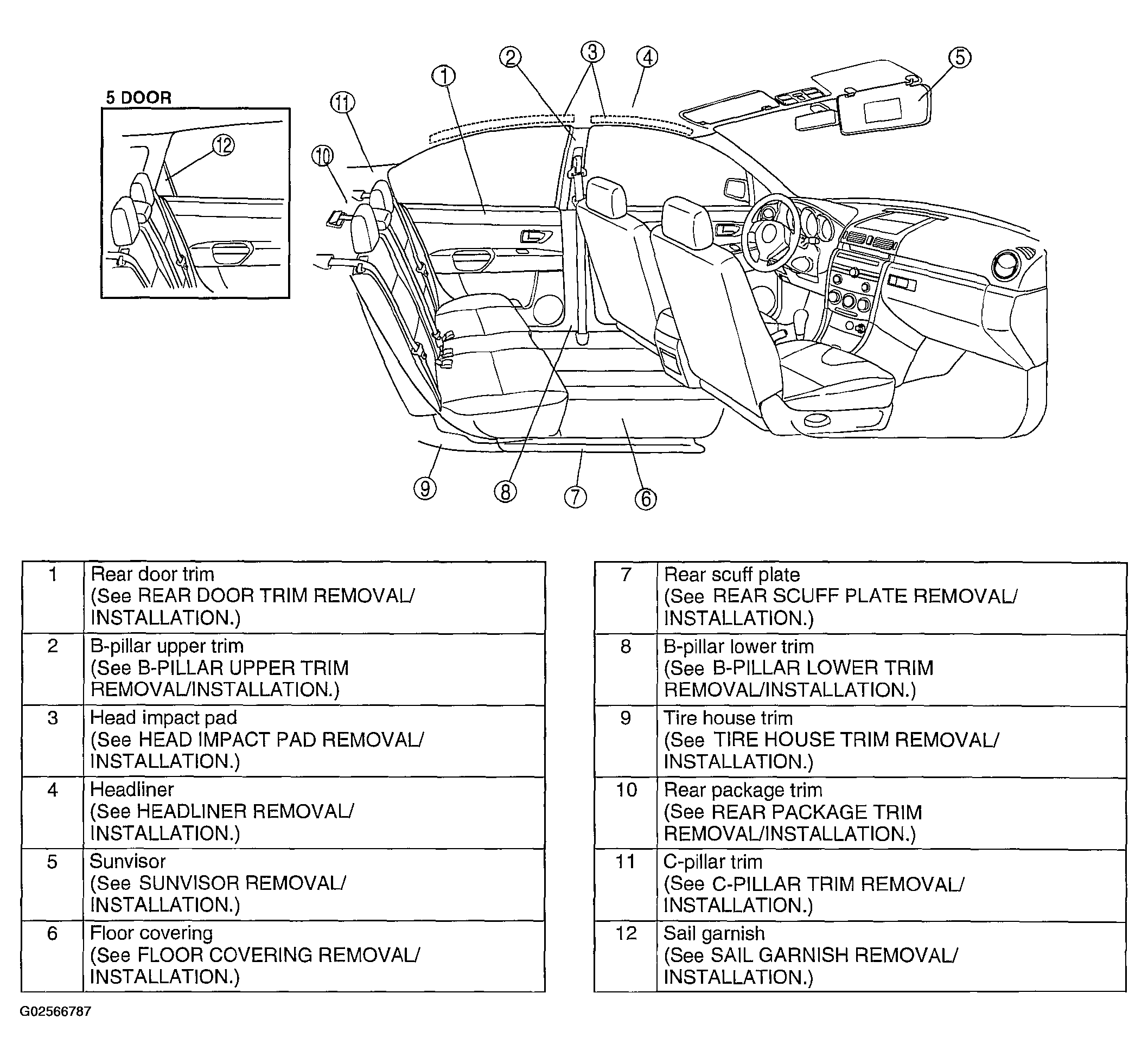

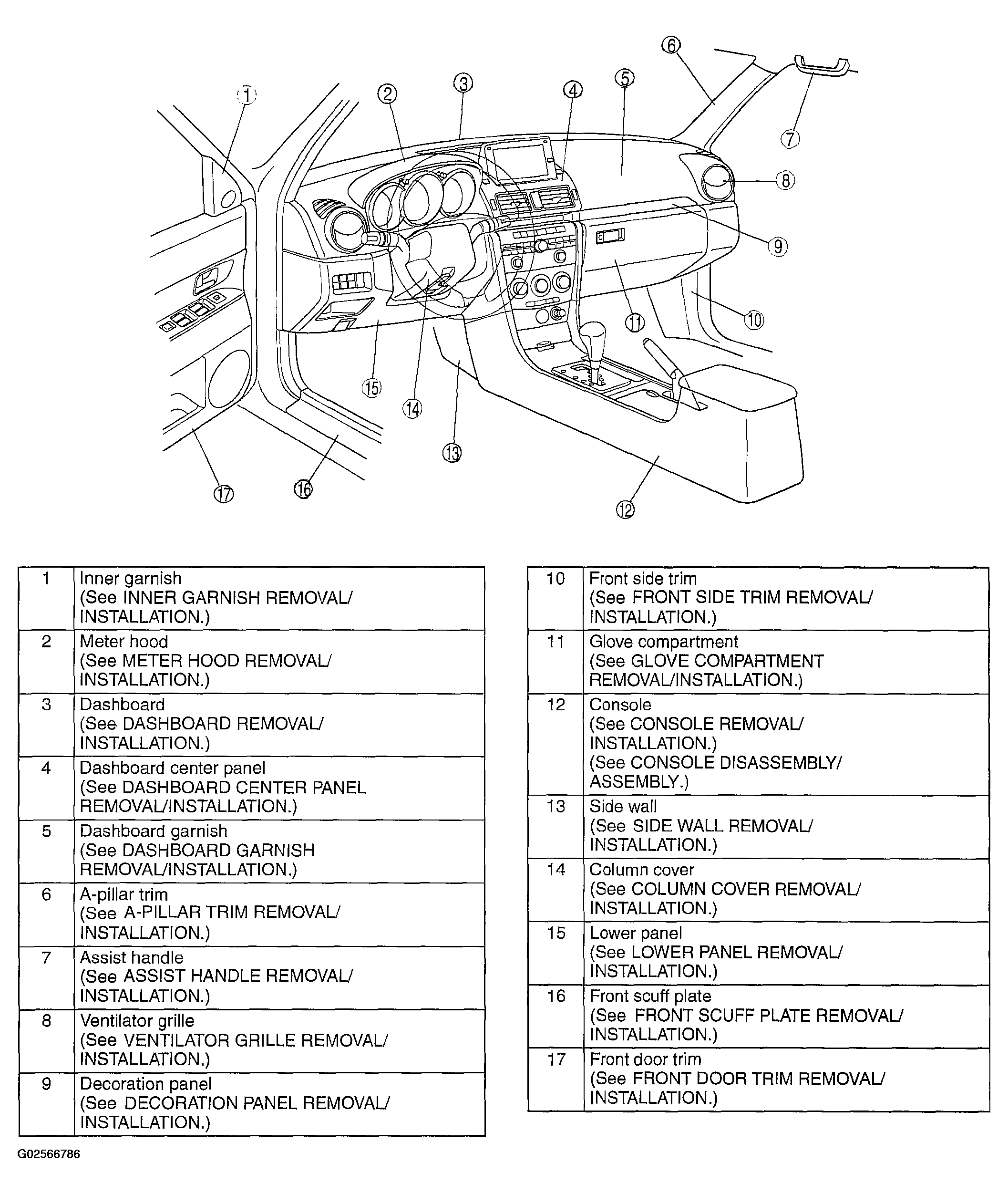

Fig 1: Interior Trim Location Index

Courtesy of MAZDA MOTORS CORP.

Fig 2: Interior Trim Location Index - 5 Door

Courtesy of MAZDA MOTORS CORP.

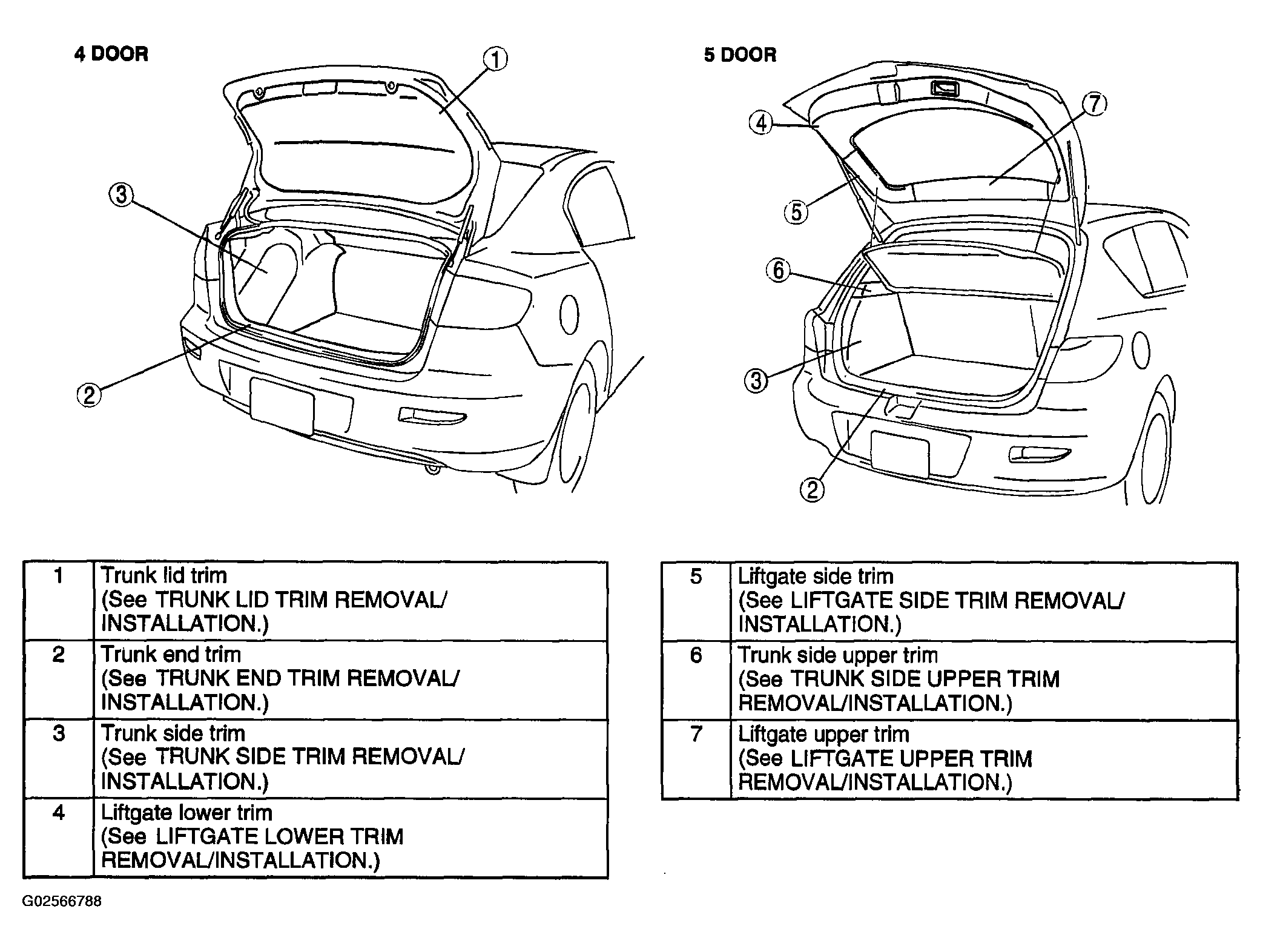

Fig 3: Interior Trim Location Index - 4 Door

Courtesy of MAZDA MOTORS CORP.
