Lower Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Detach the hood release lever from the lower panel. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  3. Remove the front scuff plate. (Driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  4. Remove the front side trim. (Driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  5. Remove the screw.
  6. Pull the lower panel outward, and detach clips A and tab.
  7. Disconnect the panel light control switch connector and the headlight leveling switch connector.
  8. Remove the lower panel.
  9. Install in the reverse order of removal.

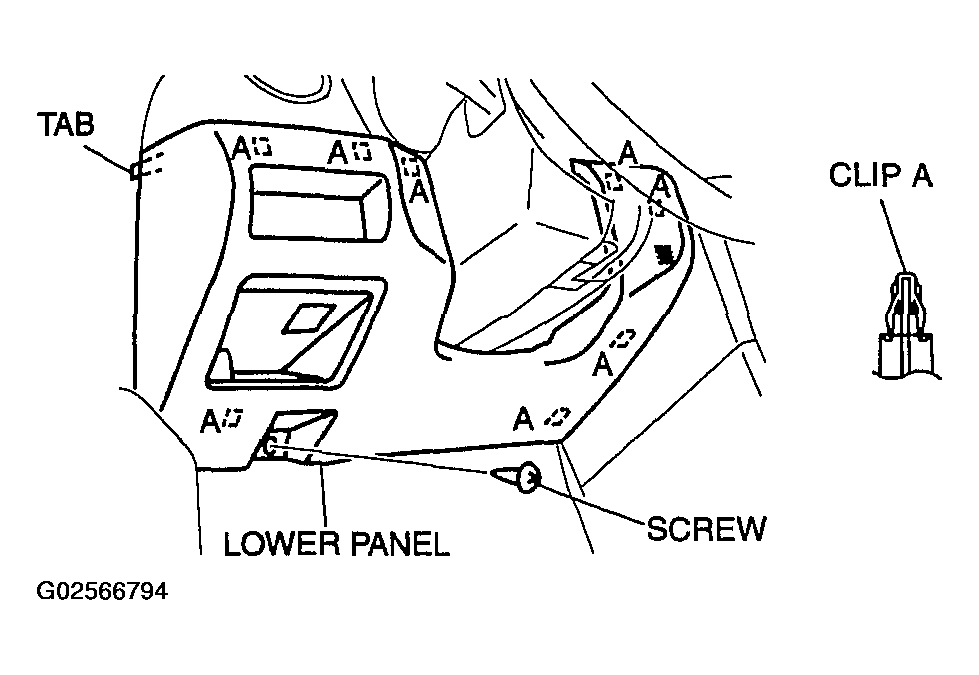

    Fig 1: Removing/Installing Lower Panel
    G02566794Courtesy of MAZDA MOTORS CORP.
