Passenger Junction Box (PJB) Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When replacing the PJB, perform the following:
- PJB configuration (See PASSENGER JUNCTION BOX (PJB) CONFIGURATION .)
Disconnect the negative battery cable.
Remove in the order indicated.

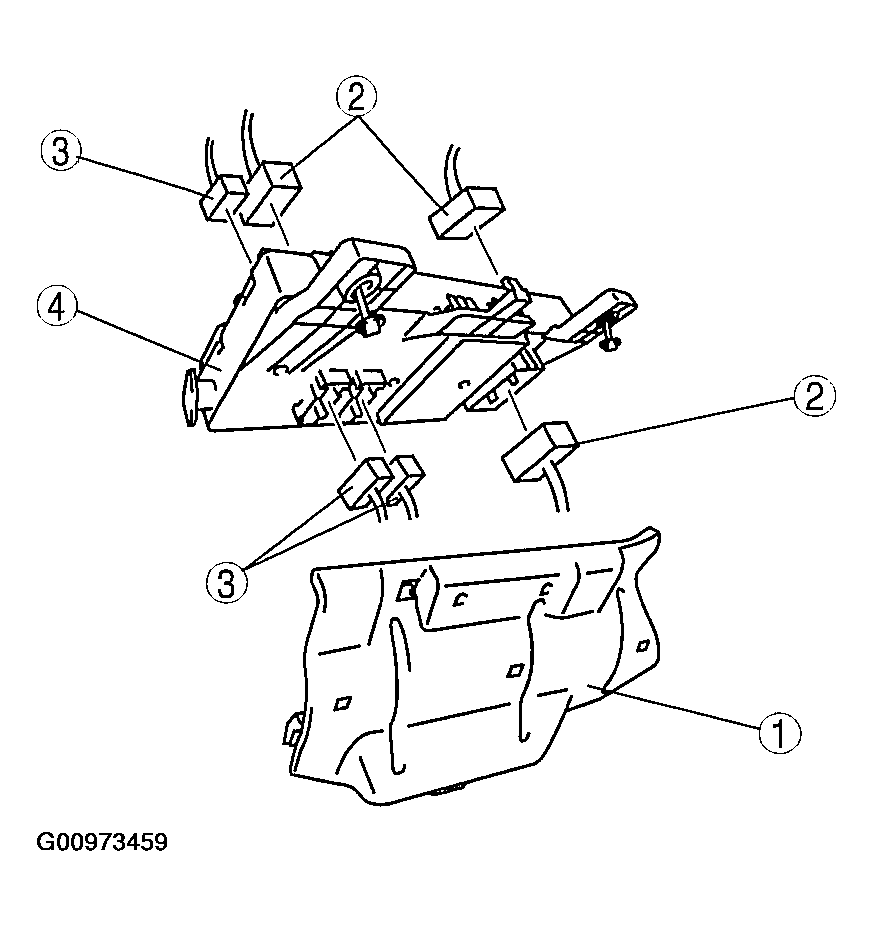

Fig 1: Removing/Installing Passenger Junction Box
Courtesy of MAZDA MOTORS CORP.

Fig 2: Passenger Junction Box Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
