Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the lower control arm.
Connect the ball joint stud to the steering knuckle.
CAUTION: Refer to FASTENER NOTICE .
Install the lower ball joint stud nut.
Tighten

Tighten the lower ball joint stud nut to 100 N.m (74 lb ft).
Install the lower control arm bolts for the 15 Series.
Install the lower control arm nuts and the washers for the 15 Series.
Tighten

Tighten the lower control arm nuts to 150 N.m (110 lb ft).

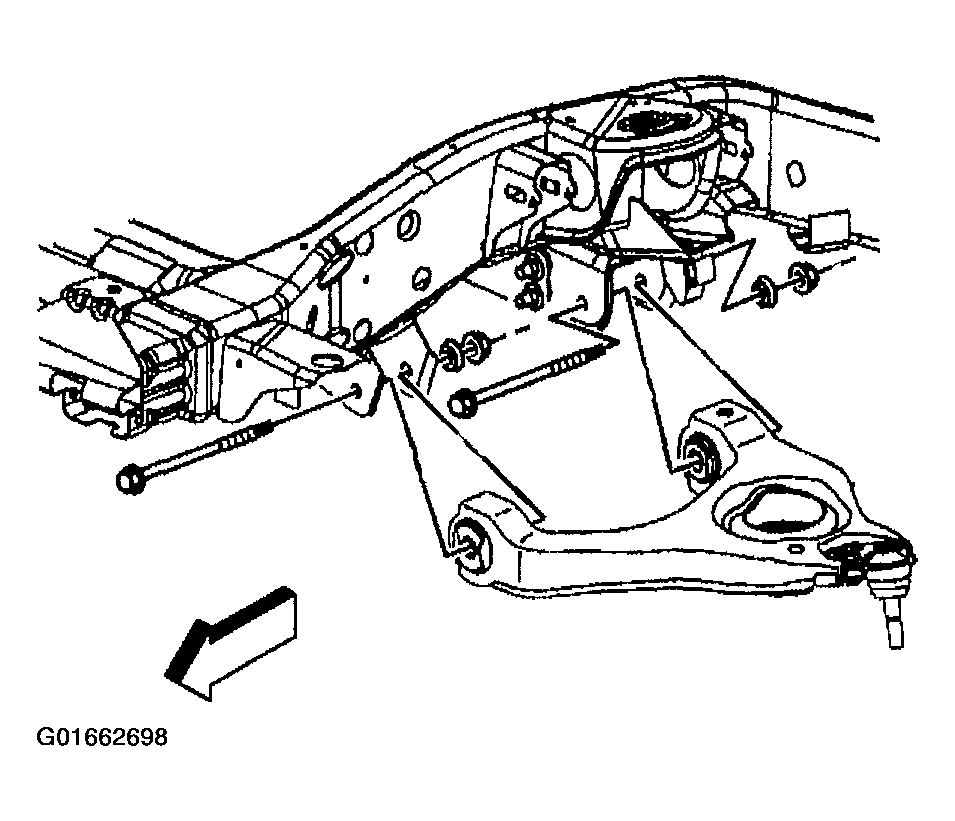

Fig 1: Installing Lower Control Arm (15 Series)
Courtesy of GENERAL MOTORS CORP.
Install the lower control arm bolts for the 25/35 Series.
Install the lower control arm nuts and the washers for the 25/35 Series.
Tighten

Tighten the lower control arm nuts to 150 N.m (110 lb ft).

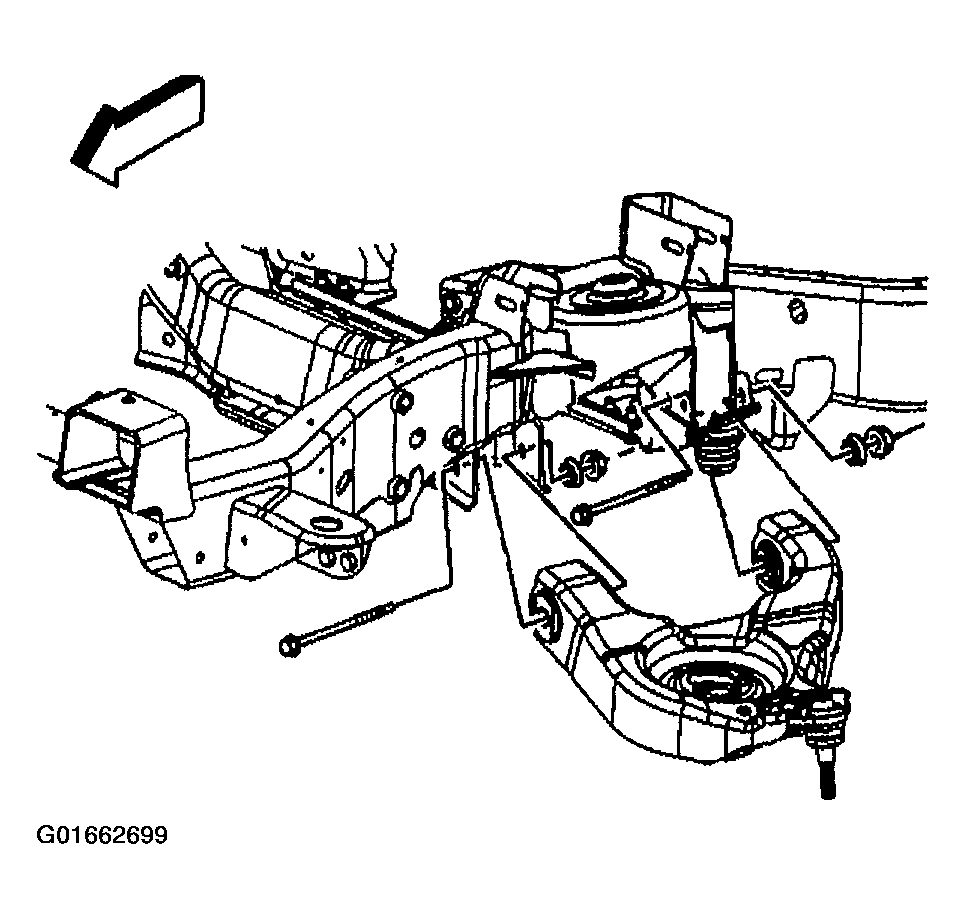

Fig 2: Installing Lower Control Arm (25/35 Series)

Courtesy of GENERAL MOTORS CORP.

Install the torsion bar. Refer to Torsion Bar Replacement .
Install the front stabilizer shaft link. Refer to Stabilizer Shaft Replacement .
Install the shock absorber. Refer to Shock Absorber Replacement (2WD) or Shock Absorber Replacement (4WD) .
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Remove the safety stands.
Lower the vehicle.
Verify the wheel alignment. Refer to SPECIFICATIONS .
