Rear Axle Disassembled Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

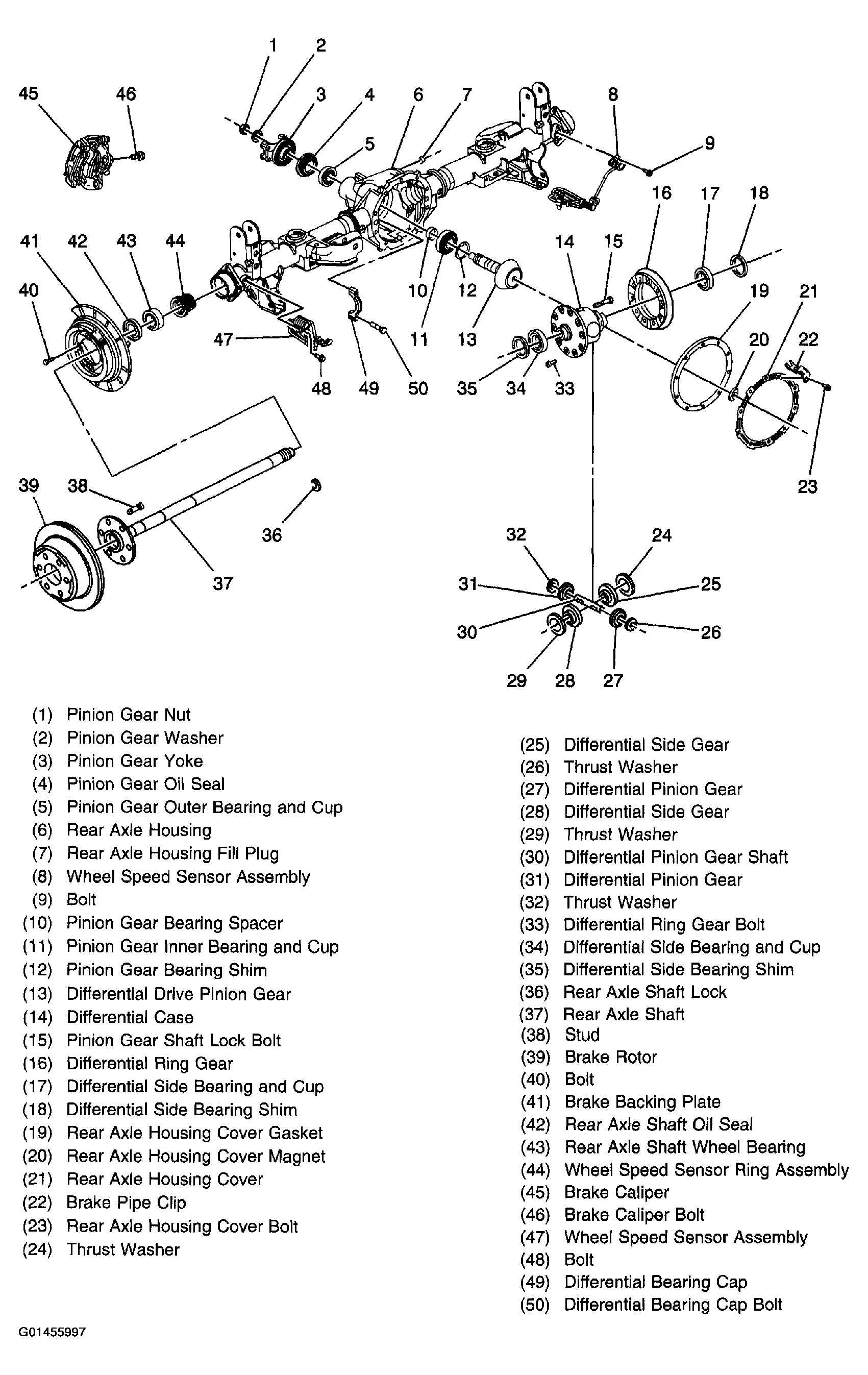

Fig 1: Exploded View - 8.6 Inch Rear Axle

Courtesy of GENERAL MOTORS CORP.

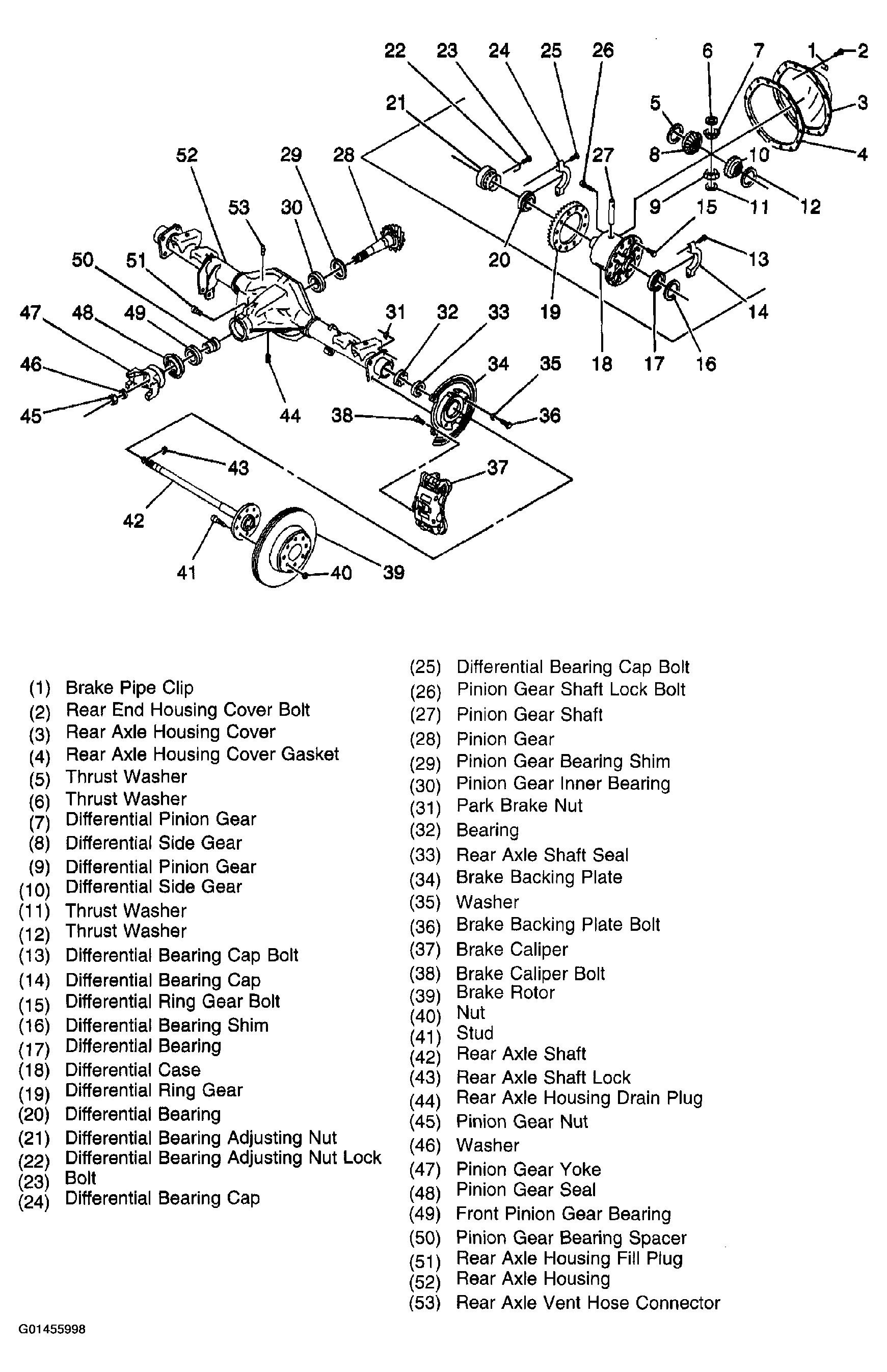

Fig 2: Exploded View - 9.5 Inch Rear Axle

Courtesy of GENERAL MOTORS CORP.

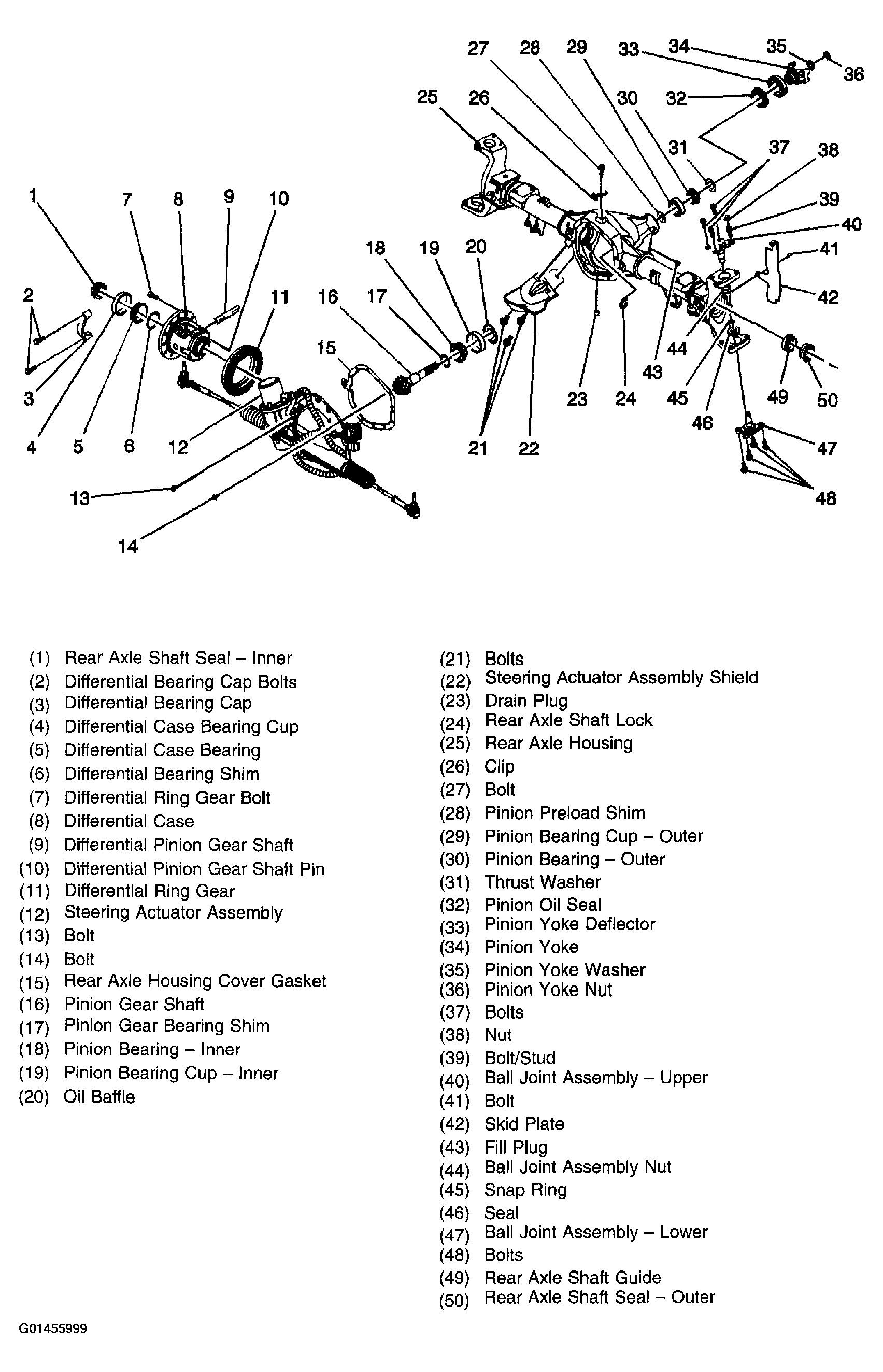

Fig 3: Exploded View - 9.75 Inch Rear Axle - Axle Housing Components

Courtesy of GENERAL MOTORS CORP.

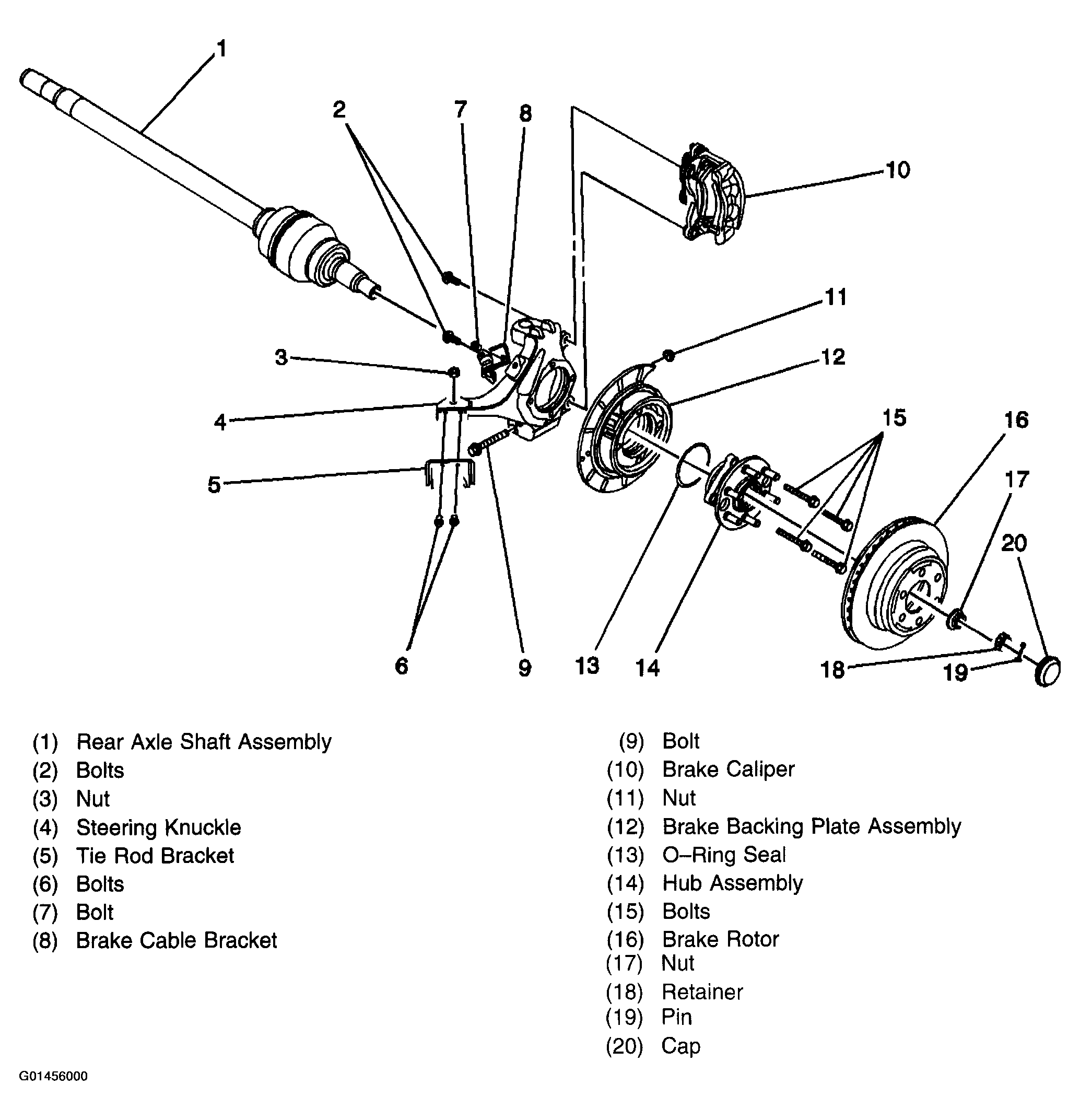

Fig 4: Exploded View - 9.75 Inch Rear Axle - Wheel End Components

Courtesy of GENERAL MOTORS CORP.

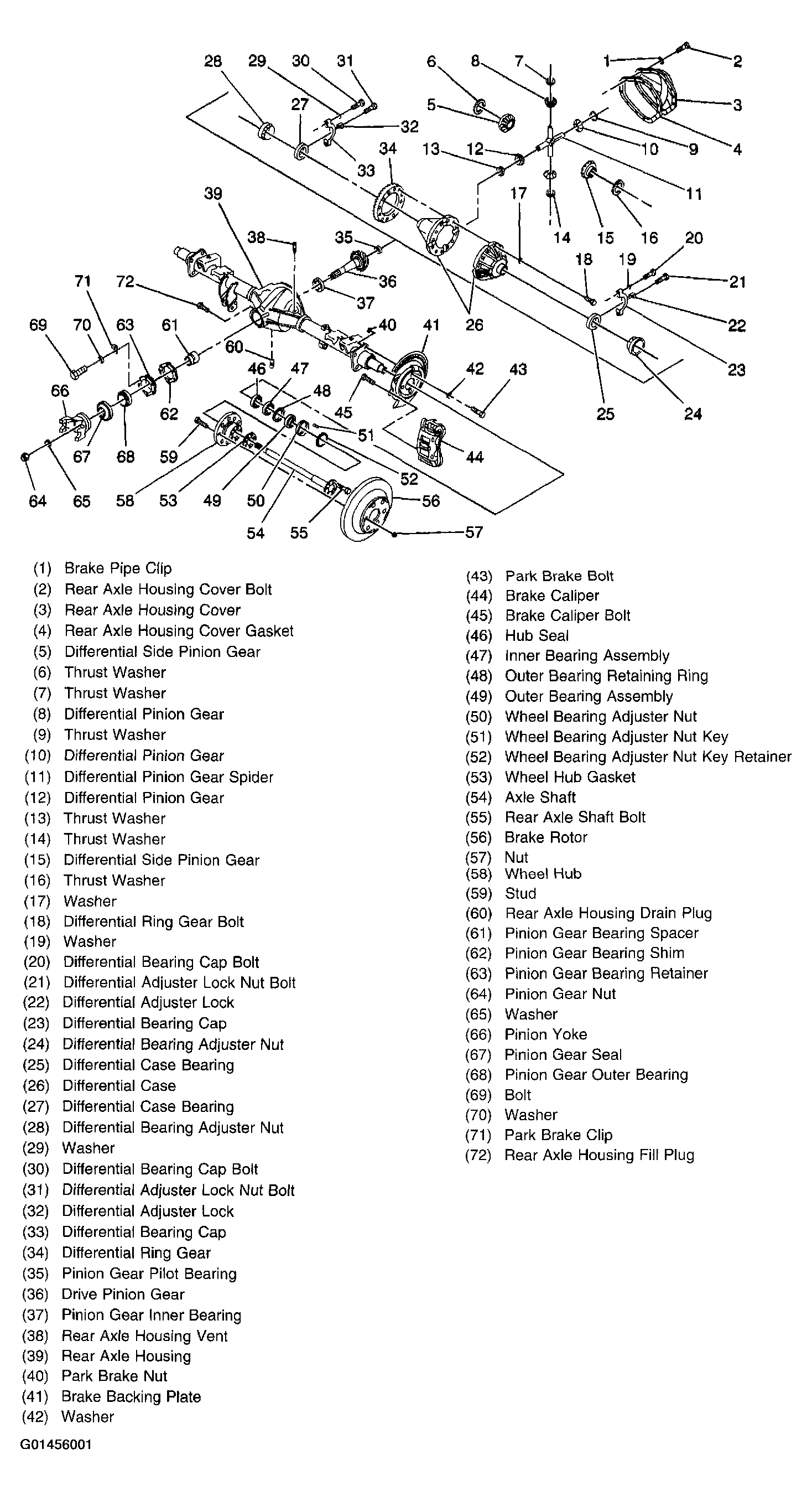

Fig 5: Exploded View - 10.5 Inch Rear Axle

Courtesy of GENERAL MOTORS CORP.
