Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation actuator.
  2. Install the recirculation actuator mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

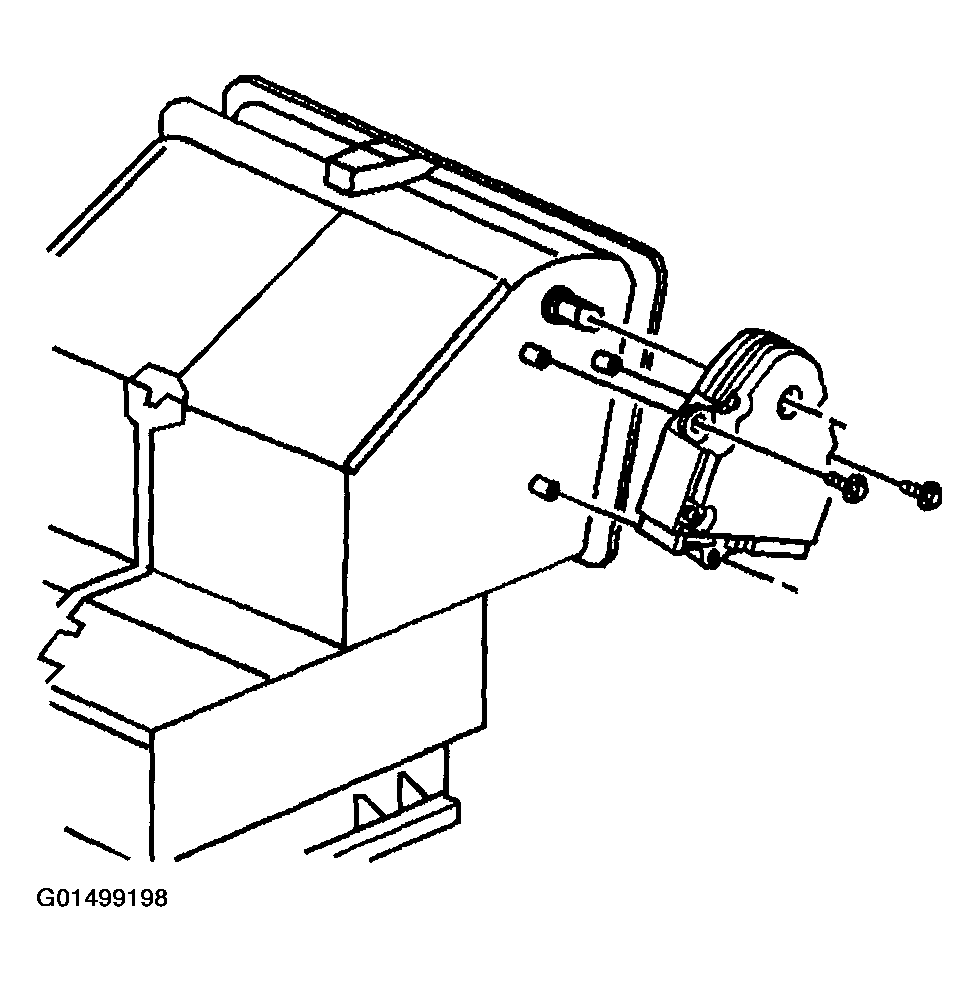

    Fig 1: Installing Recirculation Actuator Mounting Screws
    G01499198Courtesy of GENERAL MOTORS CORP.
  3. Connect the recirculation actuator electrical connector.
  4. Install the upper I/P trim pad. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .
  5. Recalibrate the actuators. Refer to RE-CALIBRATING ACTUATORS  .

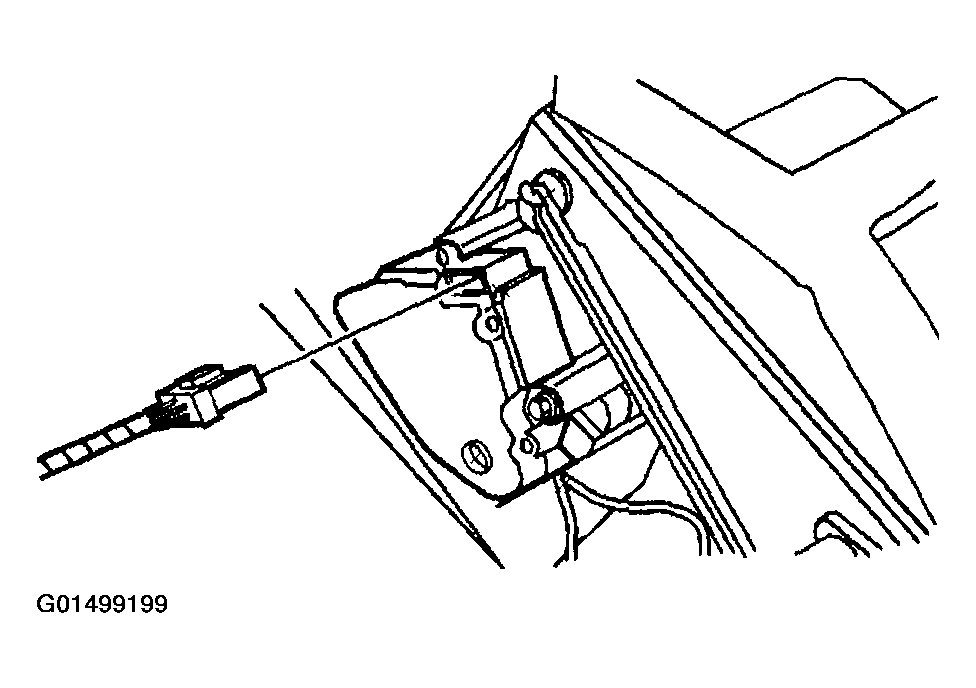

    Fig 2: Connecting Recirculation Actuator Electrical Connector
    G01499199Courtesy of GENERAL MOTORS CORP.
