Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft to the vehicle from the right side of the vehicle.
    Fig 1: Installing Stabilizer Shaft
    G01499512Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft insulators (4) and brackets. Refer to STABILIZER SHAFT INSULATOR REPLACEMENT  .
  3. Install the stabilizer shaft bolts.

    Tighten  Tighten the stabilizer shaft bolts to 48N-m(35lb ft).

  4. Install the left and right stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT  .
  5. Install the tires and wheels.
  6. Lower the vehicle.

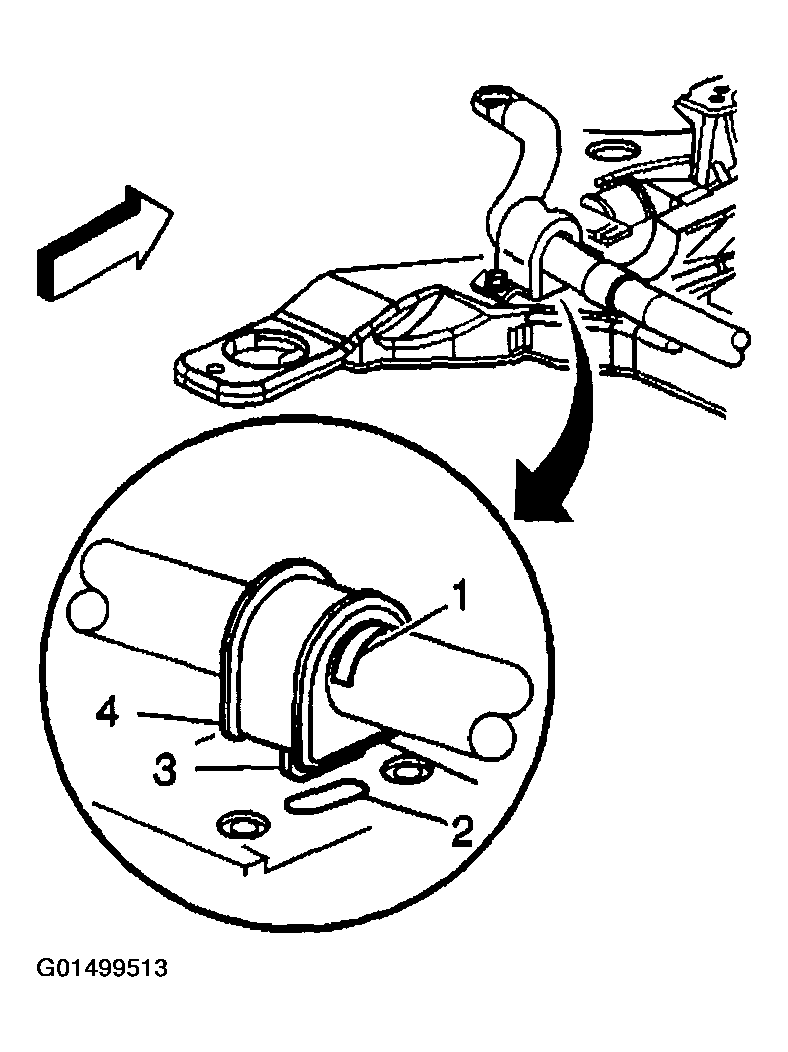

    Fig 2: Installing Stabilizer Shaft Insulators
    G01499513Courtesy of GENERAL MOTORS CORP.
