Cruise Release Switch Adjustment

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Proper stoplamp switch adjustment is essential. Improper stoplamp switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.

Remove the left side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
Rotate the switch counter-clockwise until the travel stop is reached (approximately 60 degrees).
Important: Do NOT move or push the brake pedal.
Insert the switch into the retainer until the switch plunger is fully depressed into the switch barrel.
Rotate the switch until the travel stop is reached (approximately 60 degrees). The electrical connector index notch should be at the 12 o'clock position.
Ensure that the cruise control system operates properly.
Install the left side instrument panel insulator.
Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .

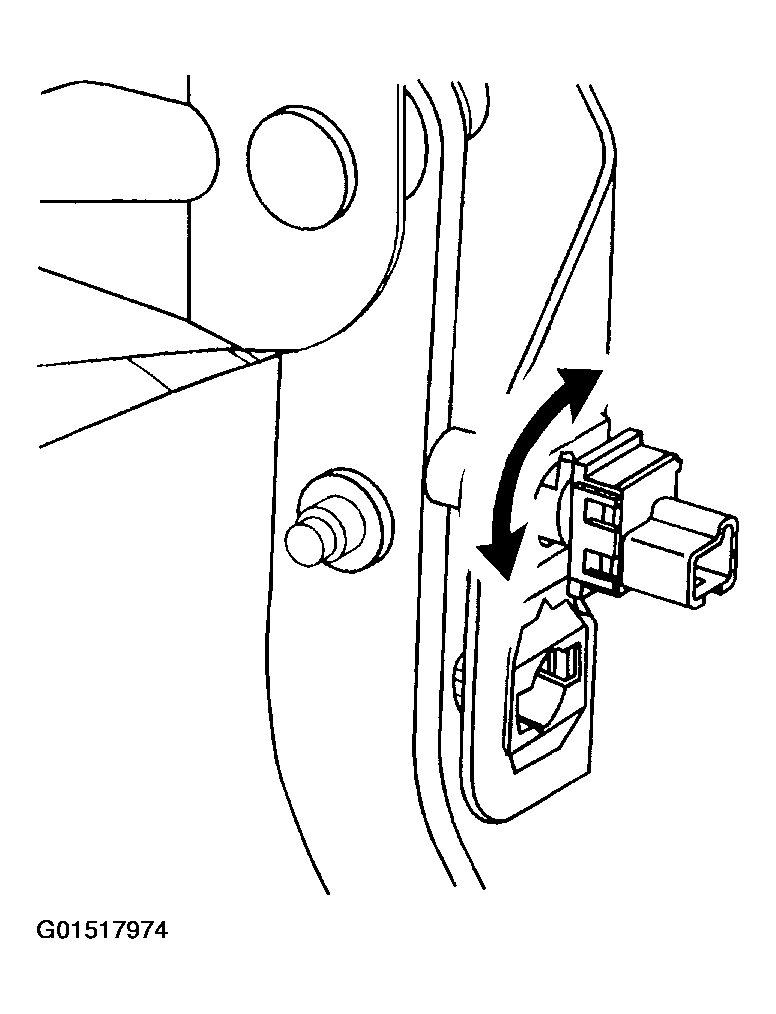

Fig 1: Rotating Switch Counter-Clockwise
Courtesy of GENERAL MOTORS CORP.
