Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Use a small flat-bladed tool to disengage the retainer clips located at the front and rear of the power sunroof switch. Hold the flat-bladed tool parallel to the roof and push straight in.

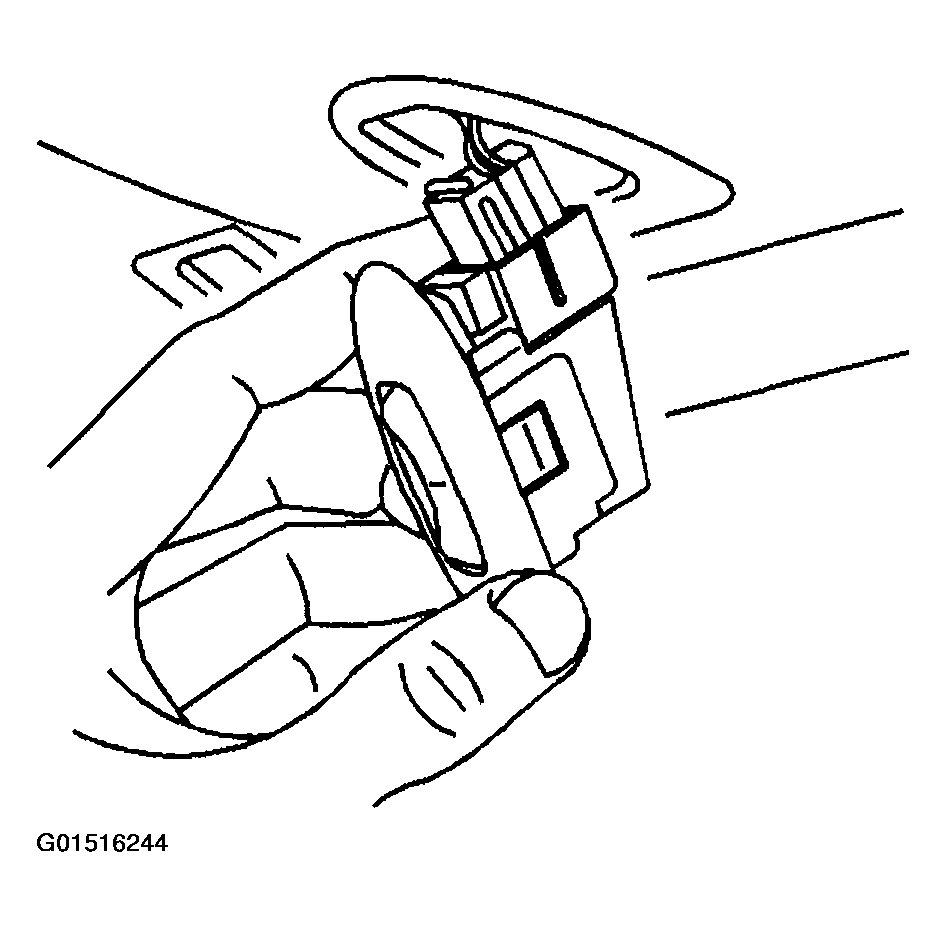

Fig 1: Disengaging Retainer Clips
Courtesy of GENERAL MOTORS CORP.
Rotate the power sunroof switch toward the left side to disengage the retainer clips from the mounting bracket and pull down.

Fig 2: Rotating Power Sunroof Switch Toward Left Side
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the power sunroof switch.

Fig 3: Disconnecting Electrical Connector From Power Sunroof Switch
Courtesy of GENERAL MOTORS CORP.
Remove the power sunroof switch from the bezel.

Fig 4: Removing Power Sunroof Switch From Bezel
Courtesy of GENERAL MOTORS CORP.
