Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lift gate applique. Refer to LIFT GATE APPLIQUE REPLACEMENT .
  2. Remove the backup lamp bulb/sockets from the applique by rotating counterclockwise.
  3. Remove the backup lamp bulbs from the socket, if required.

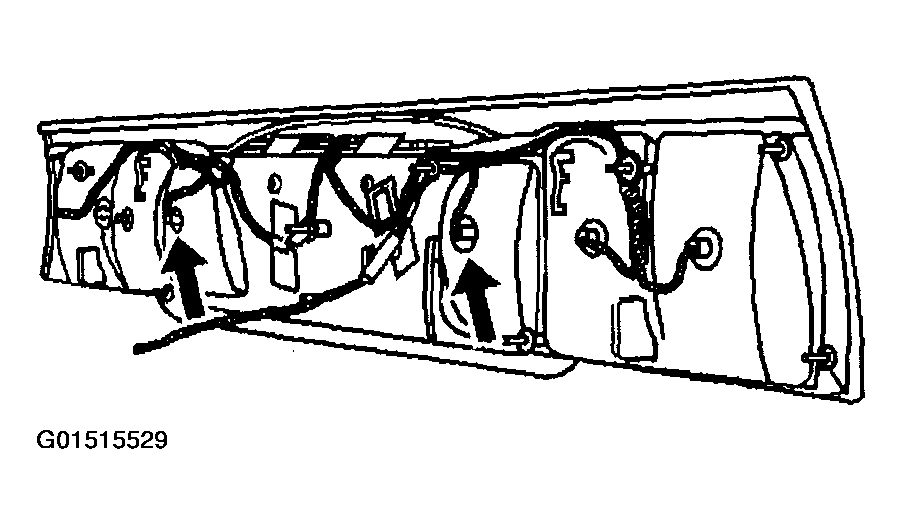

    Fig 1: Backup Lamp Removal
    G01515529Courtesy of GENERAL MOTORS CORP.
