Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry the lens from the bulb housing.
  2. Release the locking tabs in order to remove the bulb and socket from the lens.
  3. Pull the bulb straight out of the socket.

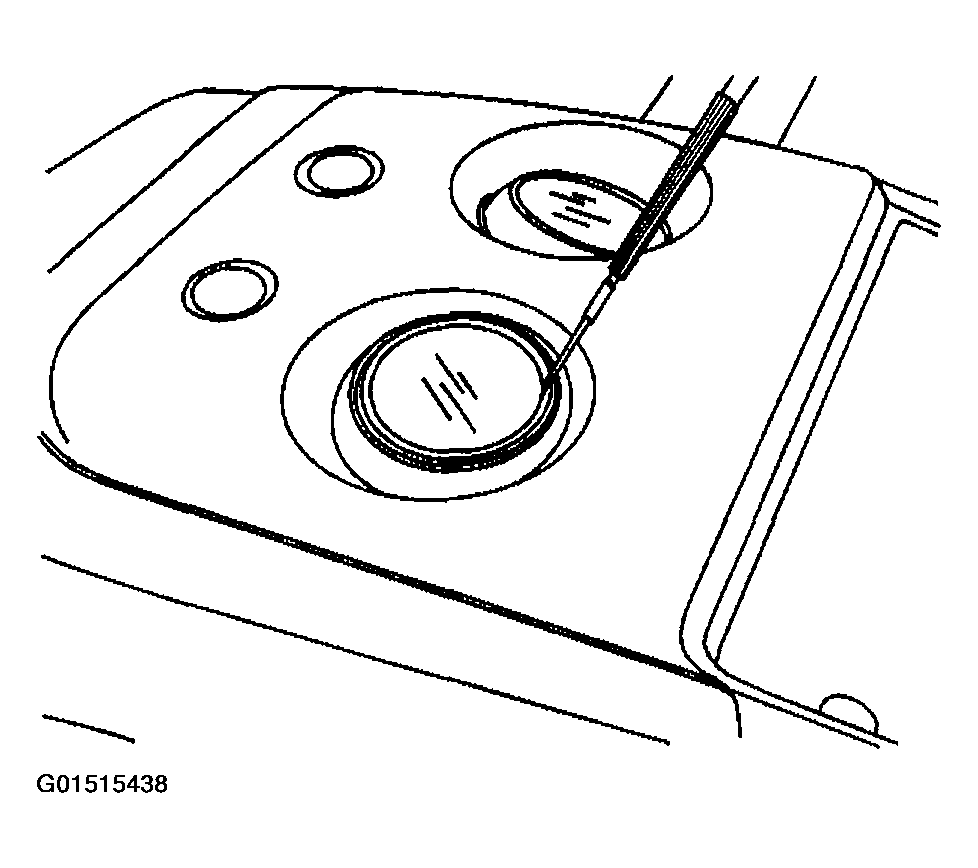

    Fig 1: Console Lamp Removal
    G01515438Courtesy of GENERAL MOTORS CORP.
