Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the headlamp switch.
Position the headlamp switch to the retainers in the I/P carrier.

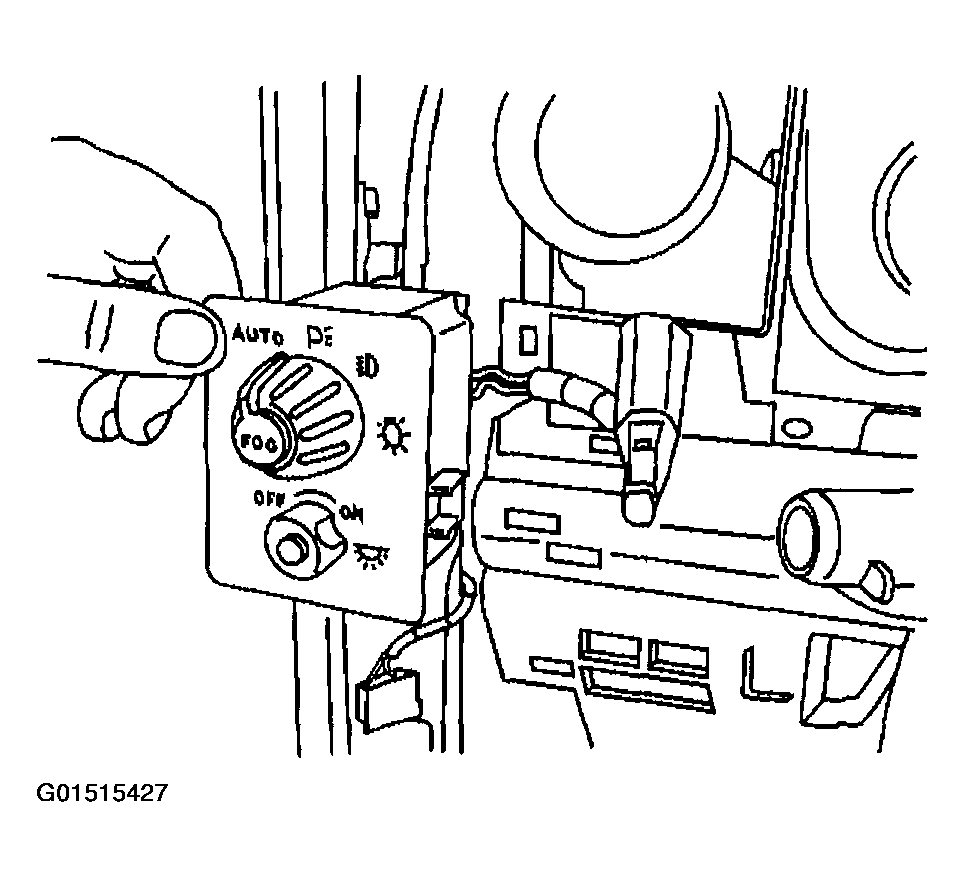

Fig 1: Headlamp Switch Installation Procedure (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the headlamp switch to the I/P carrier. Press the switch into place until fully seated.
Install the I/P I cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .
