Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .
  2. Grasp the headlamp switch and pull firmly to release the retaining tabs from the I/P carrier.

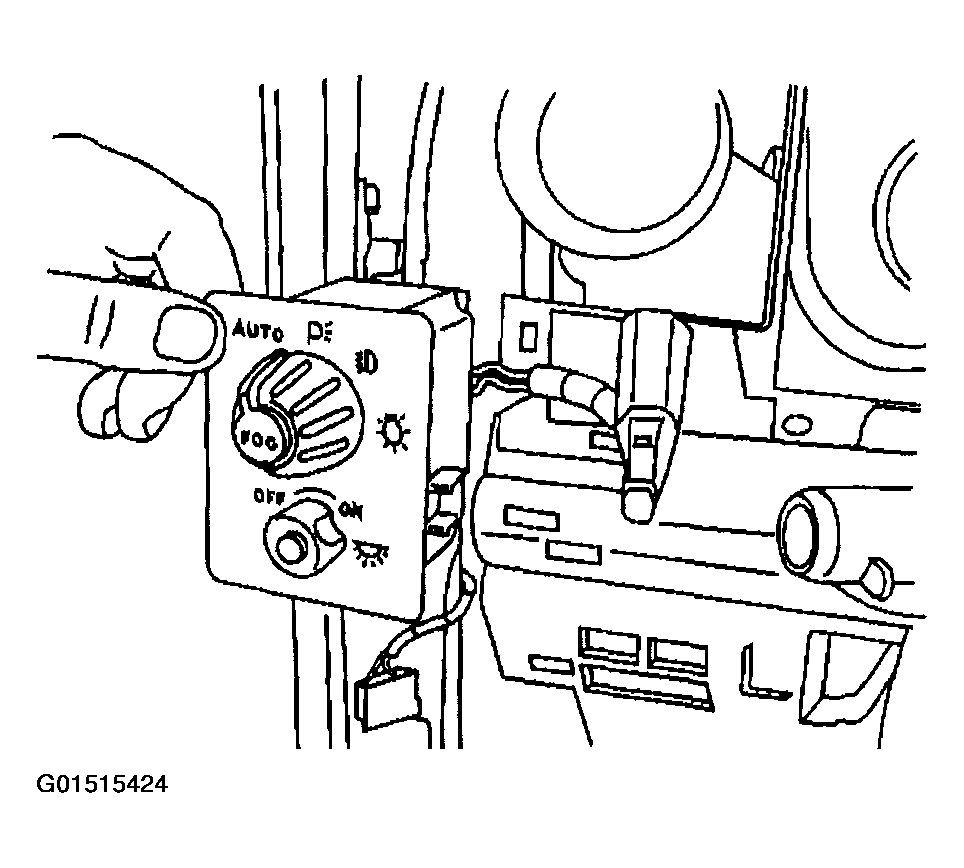

    Fig 1: Headlamp Switch Removal Procedure (1 Of 2)
    G01515424Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the headlamp switch.

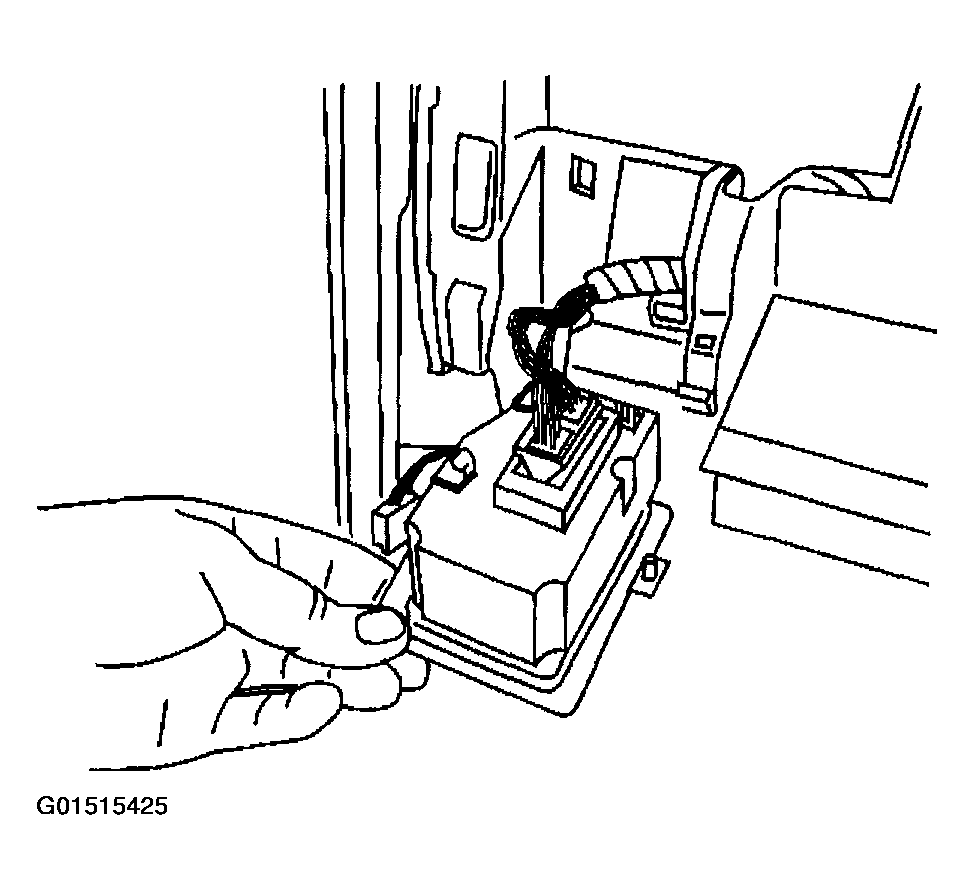

    Fig 2: Headlamp Switch Removal Procedure (2 Of 2)
    G01515425Courtesy of GENERAL MOTORS CORP.
  4. Remove the headlamp switch.
    Fig 3: Headlamp Switch Installation Procedure (1 Of 2)
    G01515426Courtesy of GENERAL MOTORS CORP.
