Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the high mounted stop lamp plastic retainer nuts to the roof panel pressing into place until fully seated.

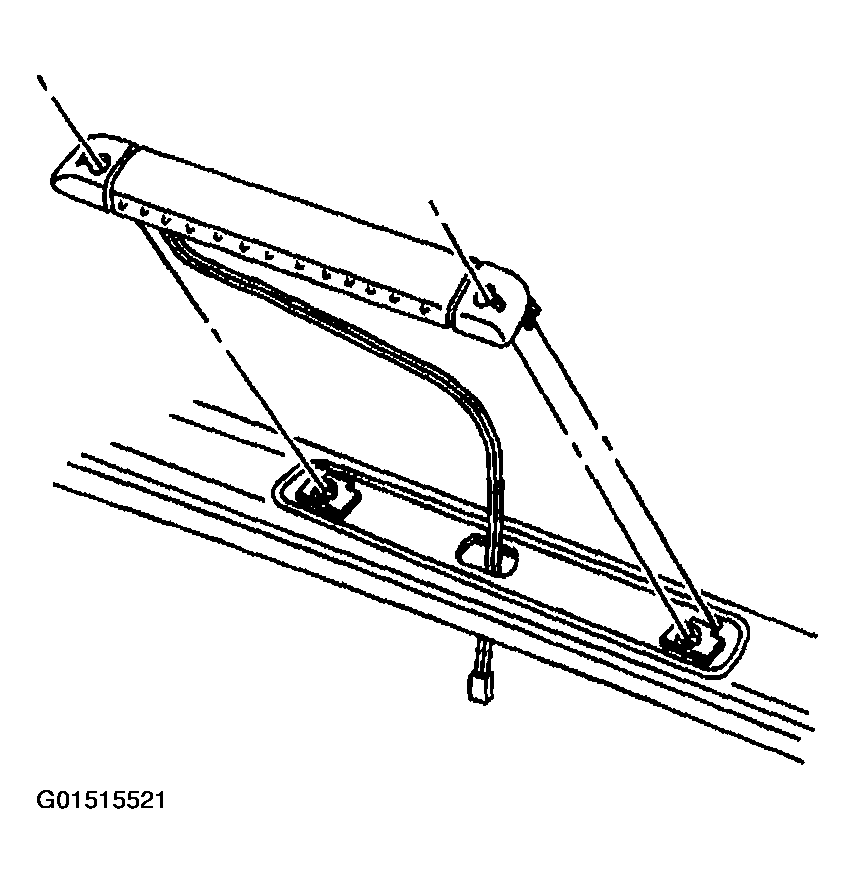

Fig 1: High Mounted Stop Lamp Installation - Aztek (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the high mounted stop lamp.
Position the high mounted stop lamp retainer tabs to the slots in the roof panel.
Press the high mounted stop lamp in place until fully seated.

Fig 2: High Mounted Stop Lamp Installation - Aztek (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Install the screws to the high mounted stop lamp.
Tighten

Tighten the high mounted stop lamp screws to 2 N.m (18 lb in).

Fig 3: High Mounted Stop Lamp Installation - Aztek (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
