Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the license plate lamp socket.
Install the license plate lamp socket, turning clockwise.
Install the license plate lamp to the end gate.

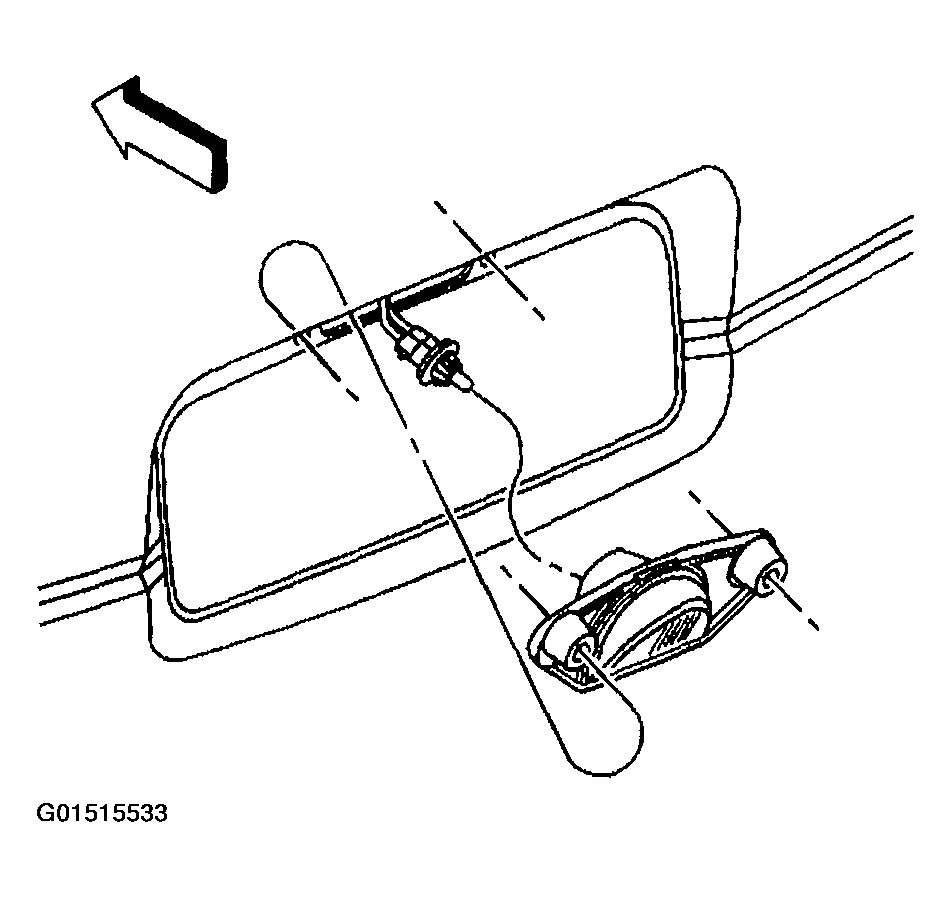

Fig 1: License Lamp Installation - Aztek (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Install the screws to the license plate lamp.
Tighten

Tighten the screws to the license plate lamp to 2 N.m (18 lb in).
Install the license plate.

Fig 2: License Lamp Installation - Aztek (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
