Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license plate.
  2. Remove the screws from the license plate lamp.
    Fig 1: License Lamp Removal - Aztek (1 Of 2)
    G01515531Courtesy of GENERAL MOTORS CORP.
  3. Remove the license plate lamp from the end gate.
  4. Remove the license plate lamp socket, turning counterclockwise.
  5. Remove the bulb from the license plate lamp socket.

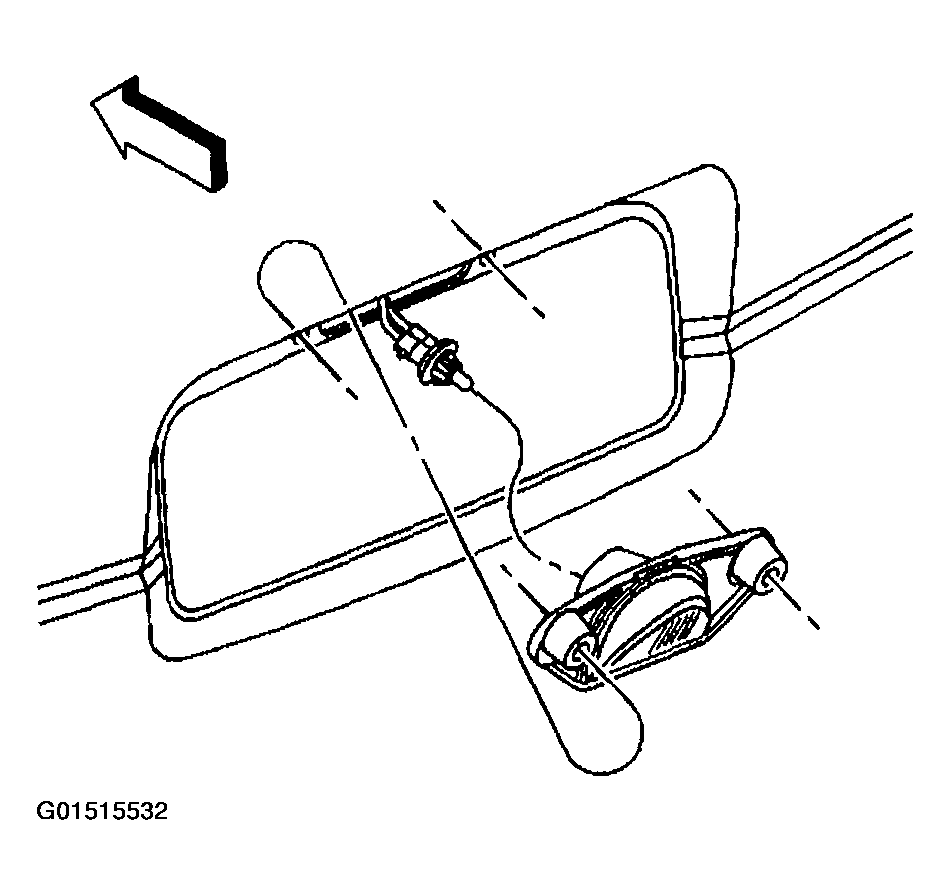

    Fig 2: License Lamp Removal - Aztek (2 Of 2)
    G01515532Courtesy of GENERAL MOTORS CORP.
