Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  2. Disconnect the electrical connectors.
  3. Remove the stop lamp switch (1) from the brake pedal bracket by turning the switch counterclockwise approximately 1/4 turn, and pulling back.

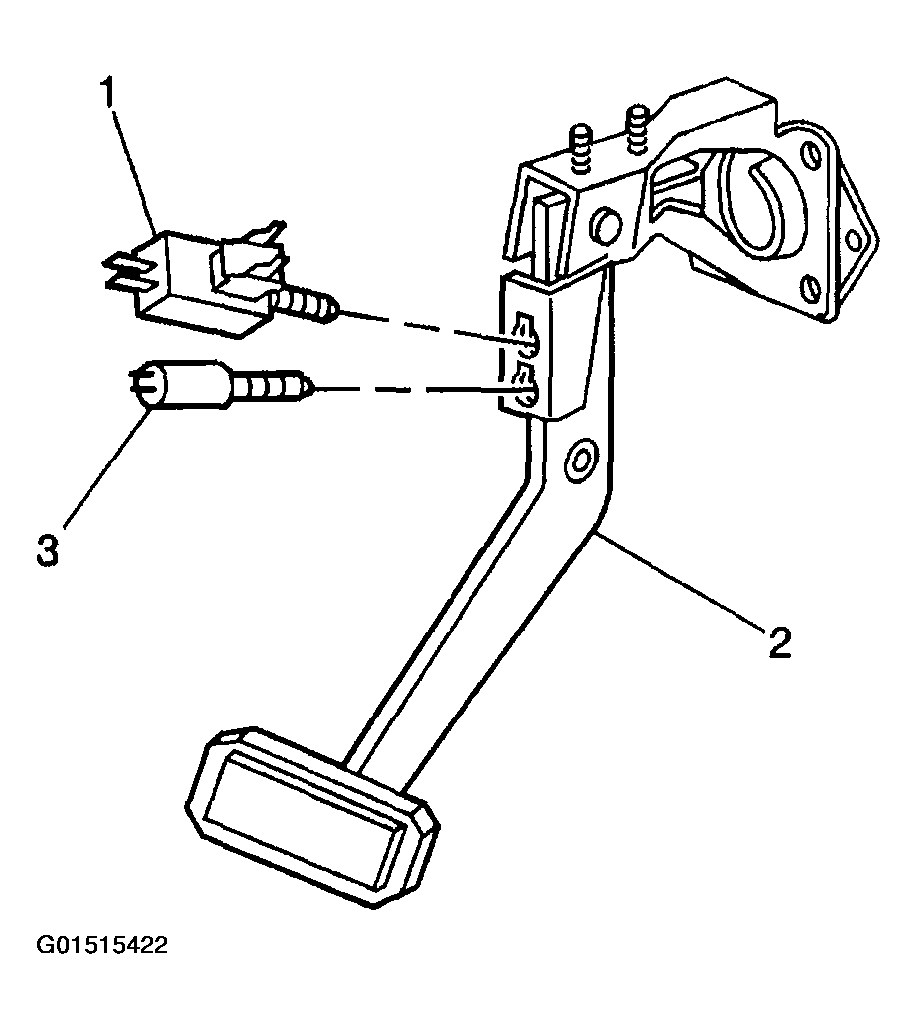

    Fig 1: Removing Stop Lamp Switch From Brake Pedal Bracket
    G01515422Courtesy of GENERAL MOTORS CORP.
