Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument accessory panel trim plate. Refer to TRIM PLATE REPLACEMENT -- INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK) , TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .
  2. Remove the radio screws.

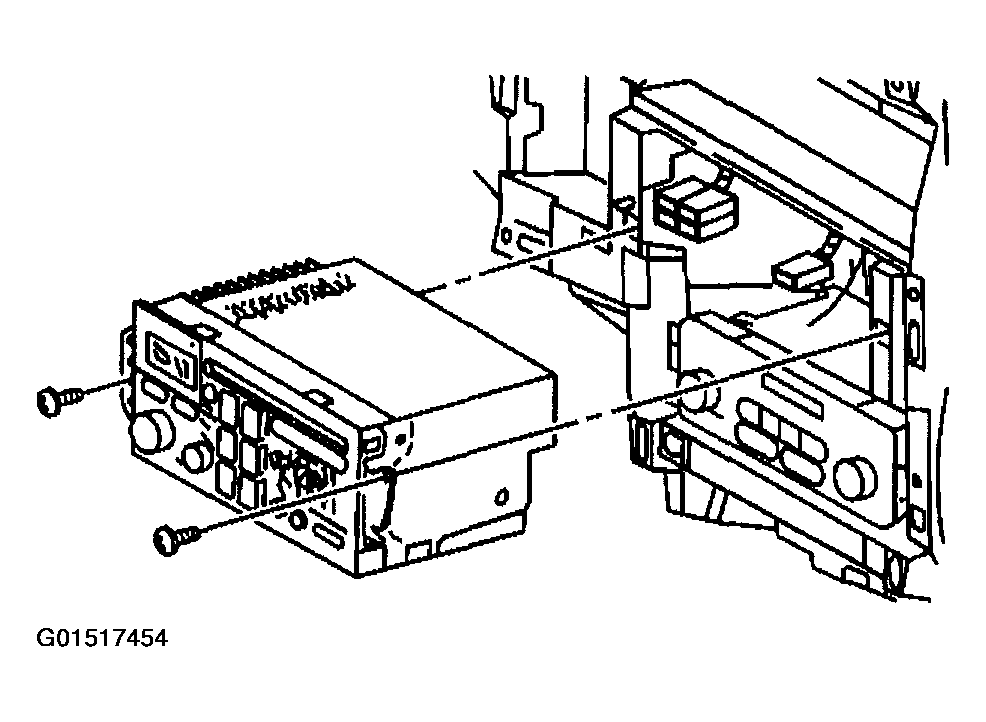

    Fig 1: Removing Radio Screws
    G01517454Courtesy of GENERAL MOTORS CORP.
  3. Pull the radio away from the instrument panel (I/P).
  4. Disconnect the electrical/audio electrical connectors from the radio.
  5. Disconnect the coaxial cable connector from the radio.
  6. Remove the radio.

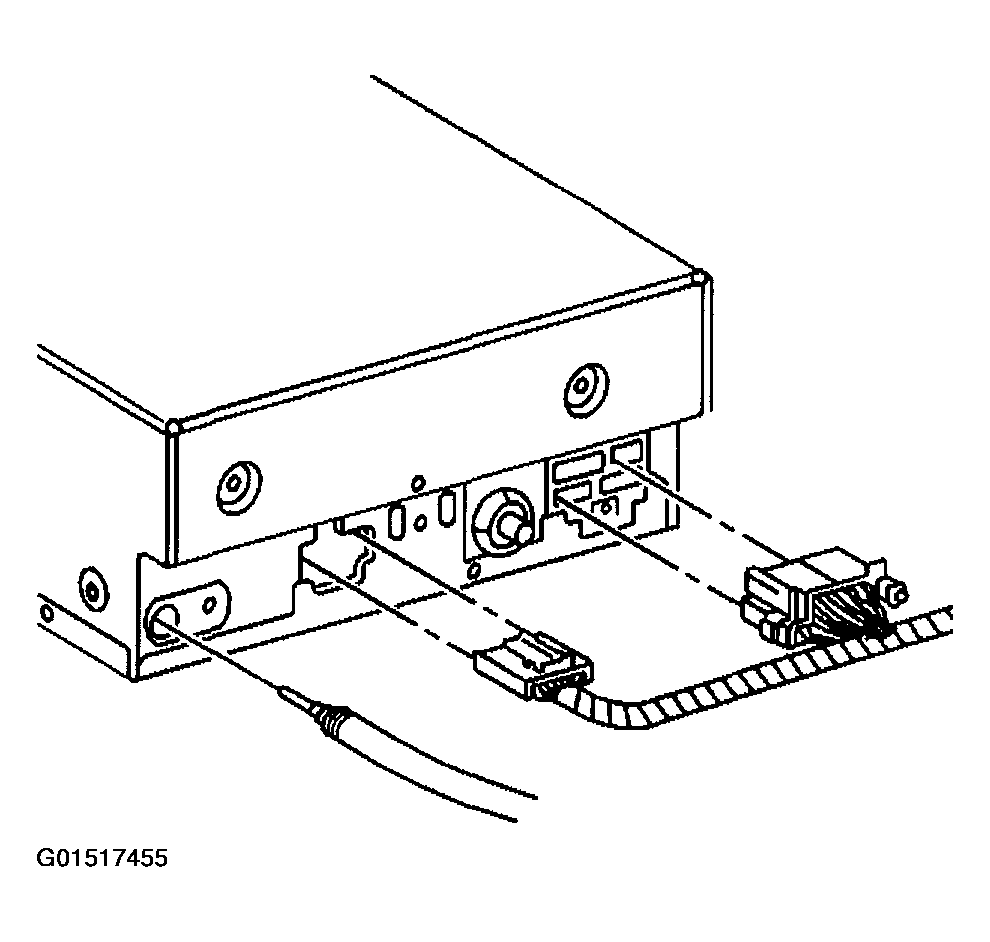

    Fig 2: Disconnecting Coaxial Cable Connector From Radio
    G01517455Courtesy of GENERAL MOTORS CORP.
