Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation actuator (2).
  2. Connect the vacuum connector to the recirculation actuator (2).
  3. Install the actuator rod to the recirculation door (1) by placing the hole in the actuator rod over the hook on the recirculation door lever.
  4. Align the recirculation actuator with the recirculation door assembly and firmly push forward to engage the recirculation actuator locking tab.
  5. Push up on the J-spring in order to return the storage compartment door to the normal position.

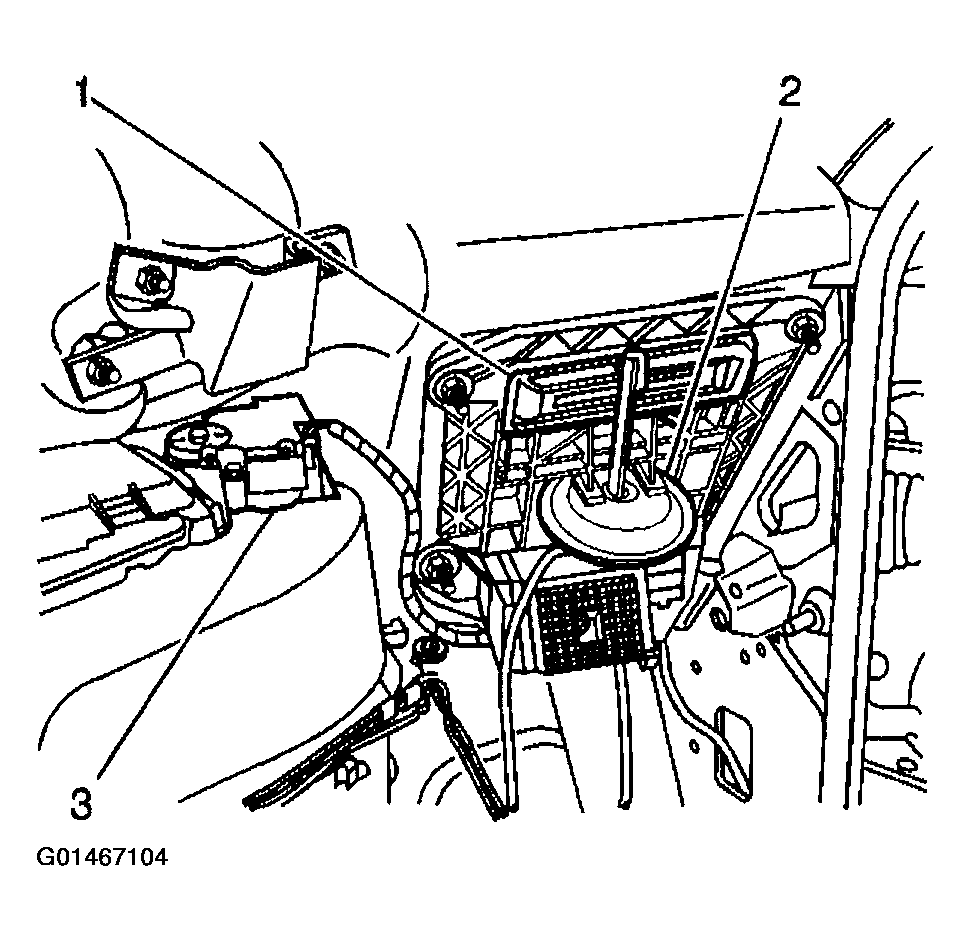

    Fig 1: Installing Actuator Rod To Recirculation Door
    G01467104Courtesy of GENERAL MOTORS CORP.
