Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector (4) from the vacuum control assembly (5).
  3. Disconnect the vacuum harness connector from the vacuum control assembly.

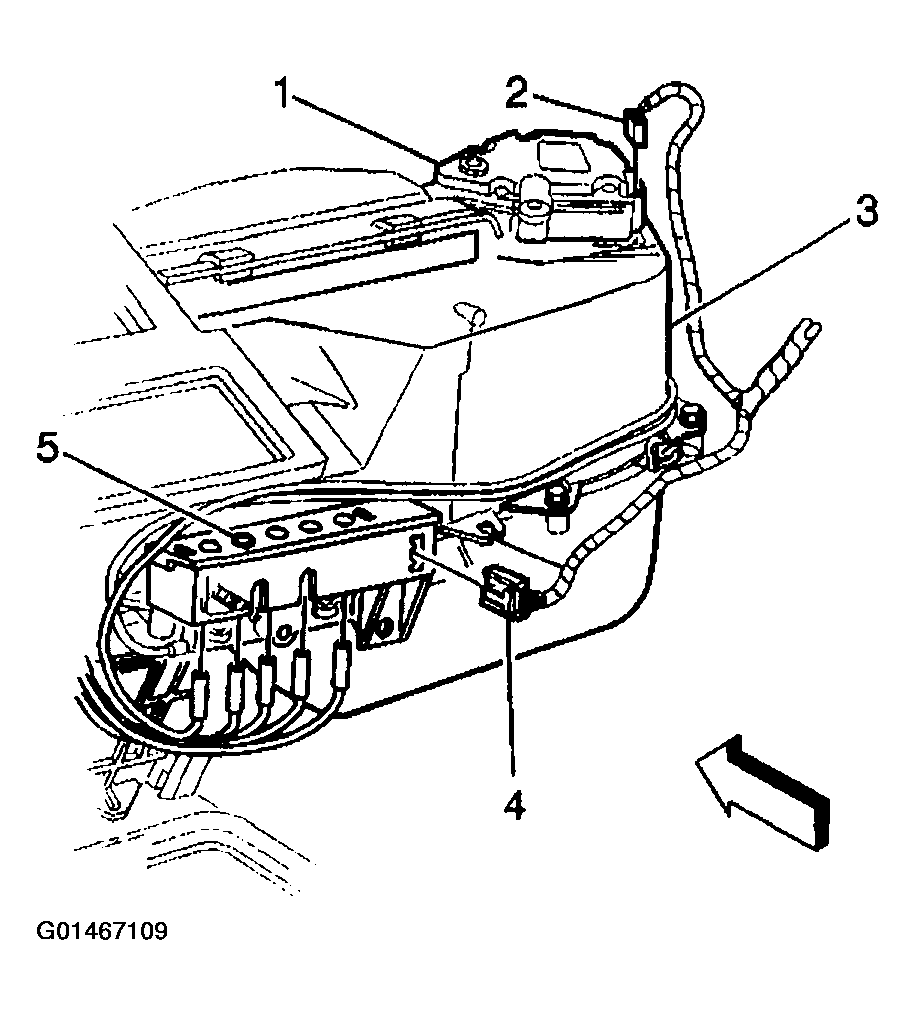

    Fig 1: Disconnecting Electrical Connector From Vacuum Control Assembly
    G01467109Courtesy of GENERAL MOTORS CORP.
  4. Remove the vacuum control assembly retaining screws.
  5. Remove the vacuum control assembly from the vehicle.

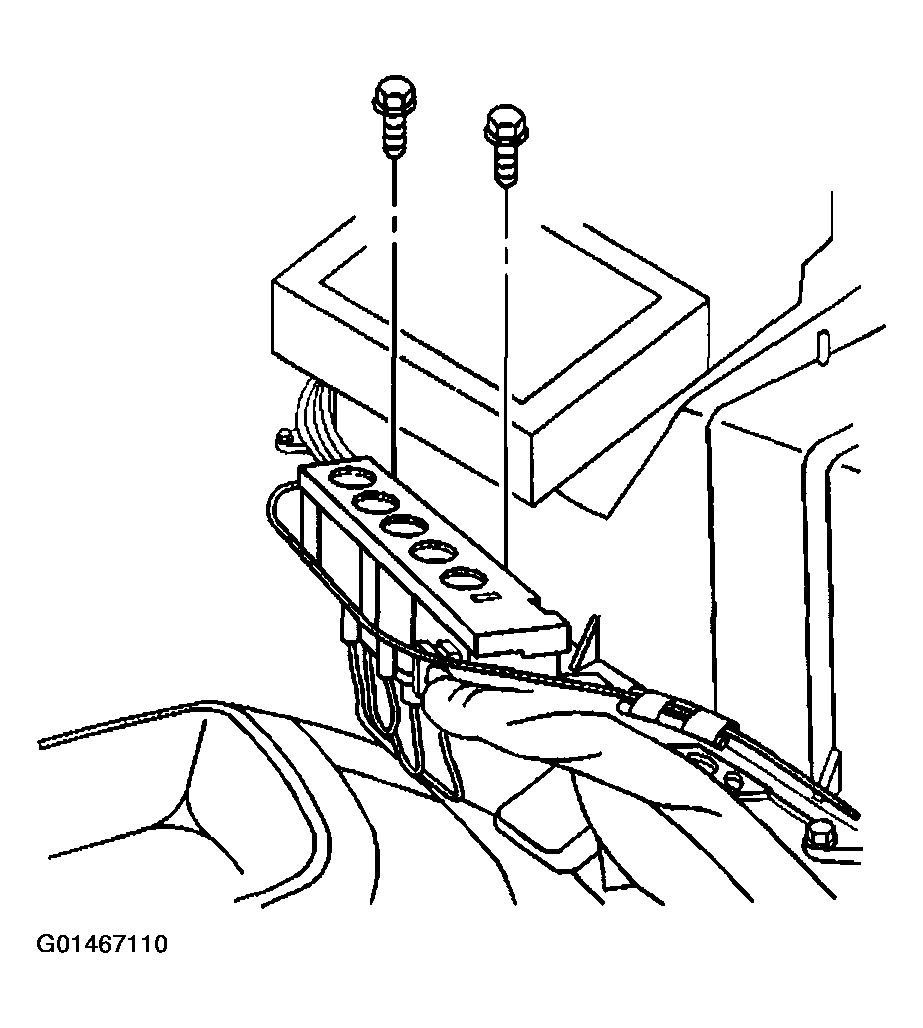

    Fig 2: Vacuum Control Assembly Retaining Screws
    G01467110Courtesy of GENERAL MOTORS CORP.
