Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry the lens from the bulb housing.
  2. Release the locking tabs in order to remove the bulb and socket from the lens.
  3. Pull the bulb straight out of the socket.

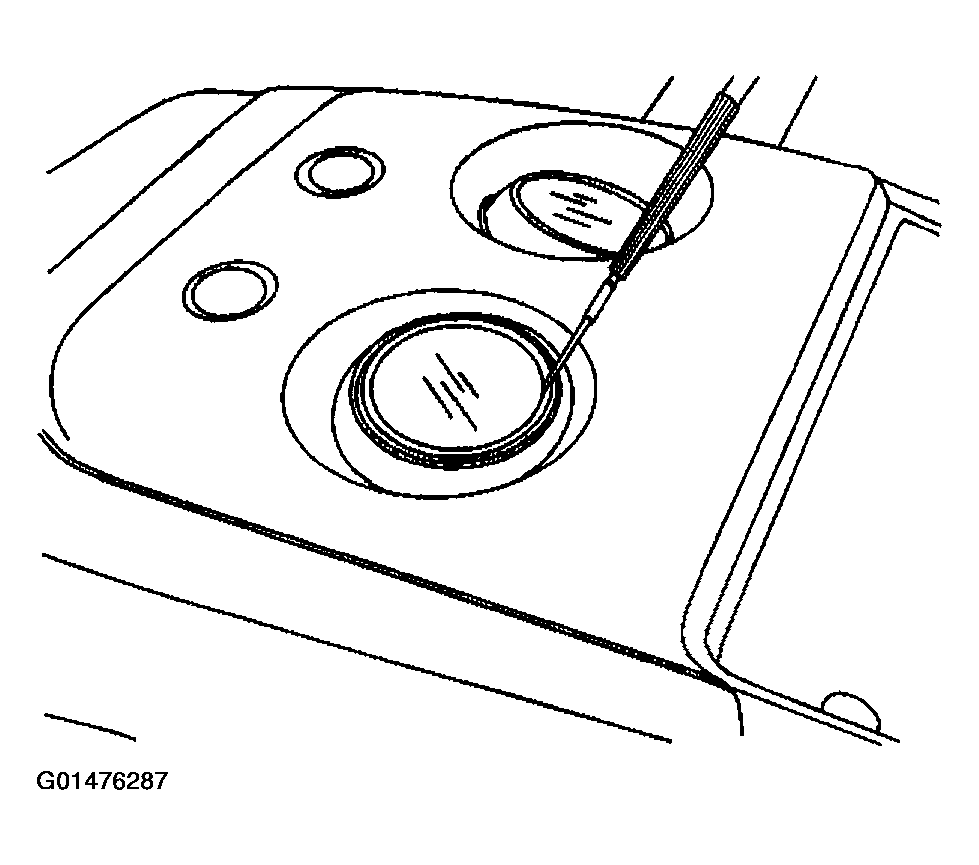

    Fig 1: Console Lamp Bulb
    G01476287Courtesy of GENERAL MOTORS CORP.
