Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

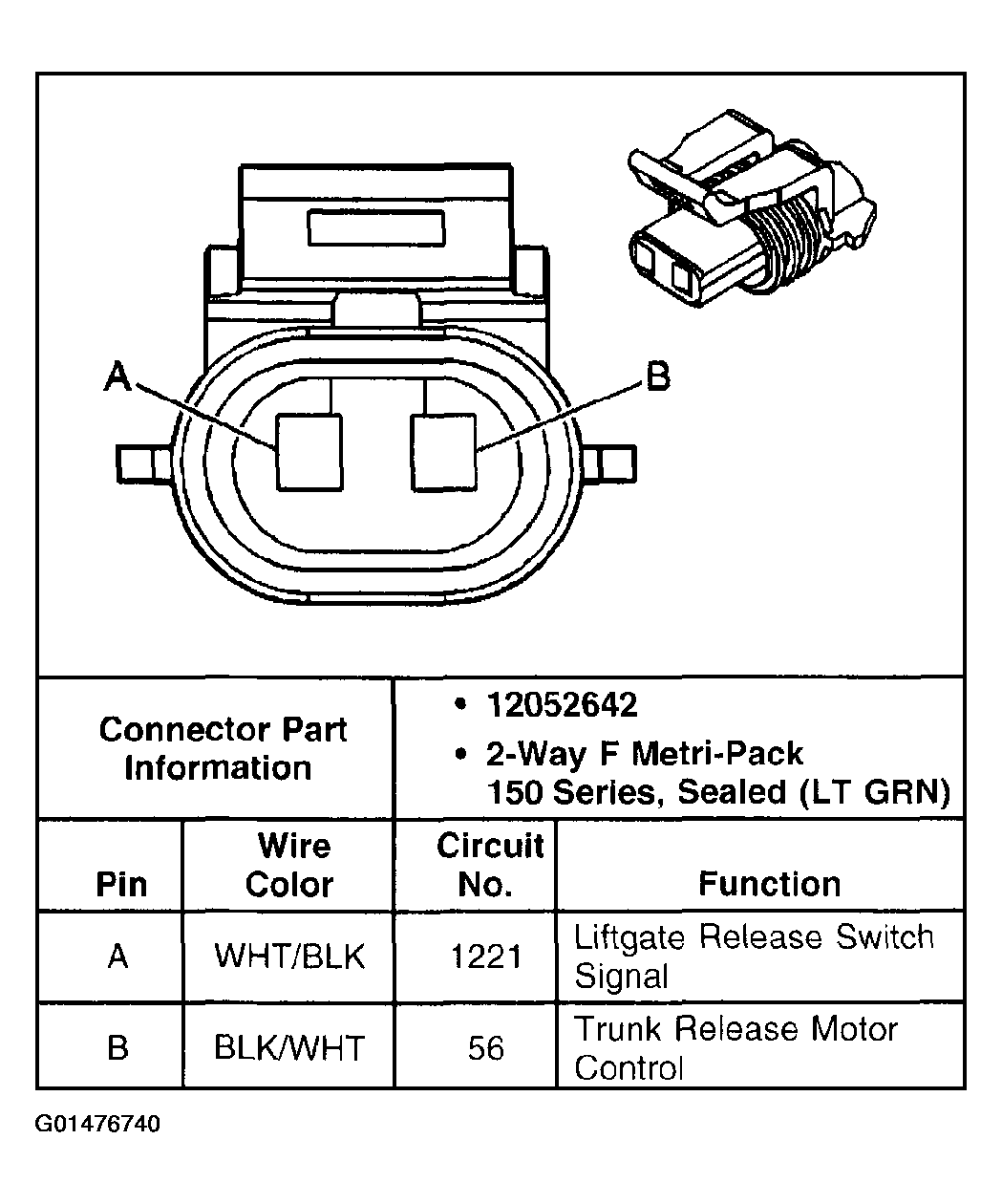

Fig 1: Door Lock Cylinder Switch - Driver (Utility, Crew Cab W/ RKE)

Courtesy of GENERAL MOTORS CORP.

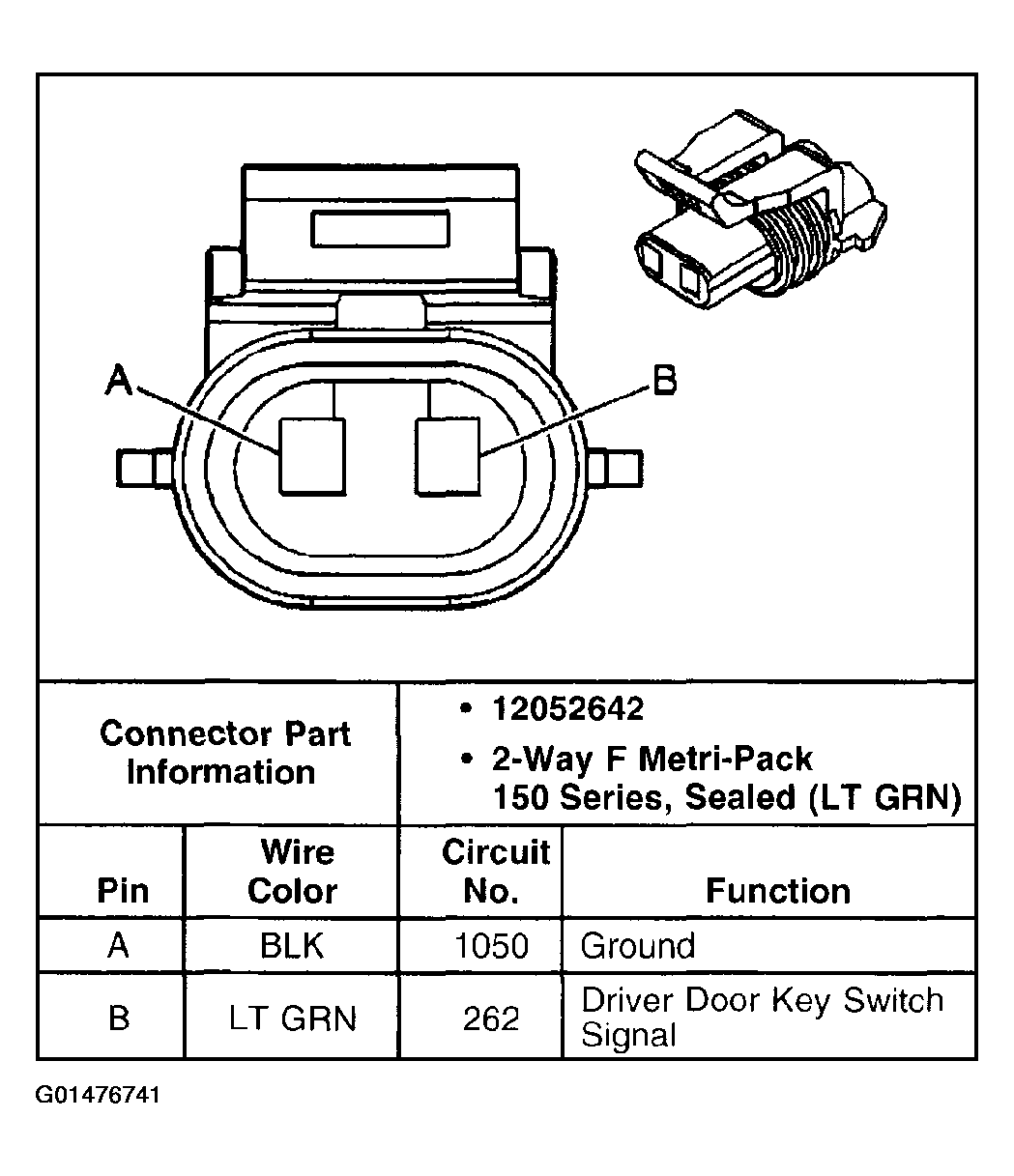

Fig 2: Door Lock Cylinder Switch - Driver (Pickup W/ RKE)

Courtesy of GENERAL MOTORS CORP.

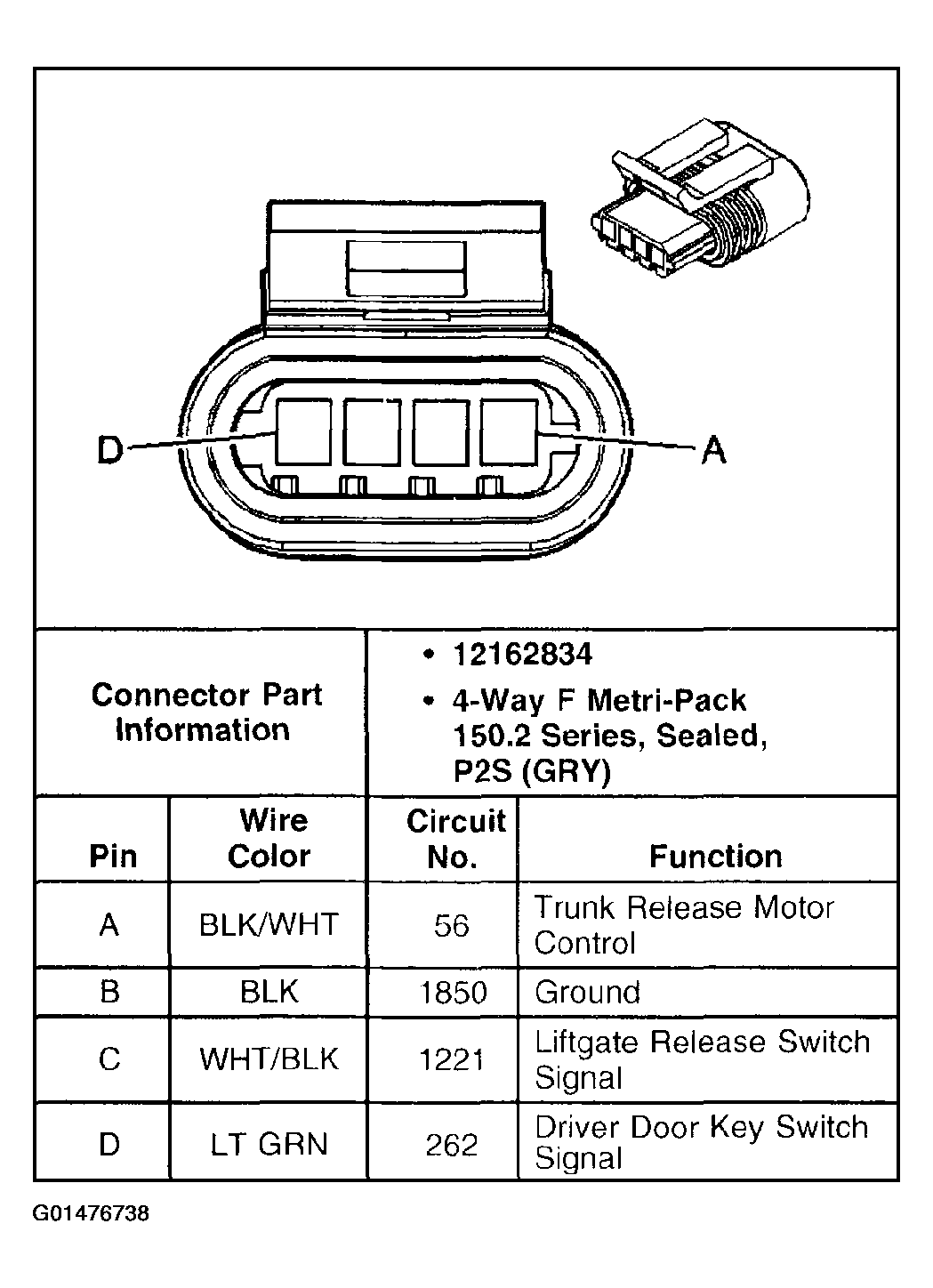

Fig 3: Door Lock Cylinder Switch - Driver (W/O RKE)

Courtesy of GENERAL MOTORS CORP.

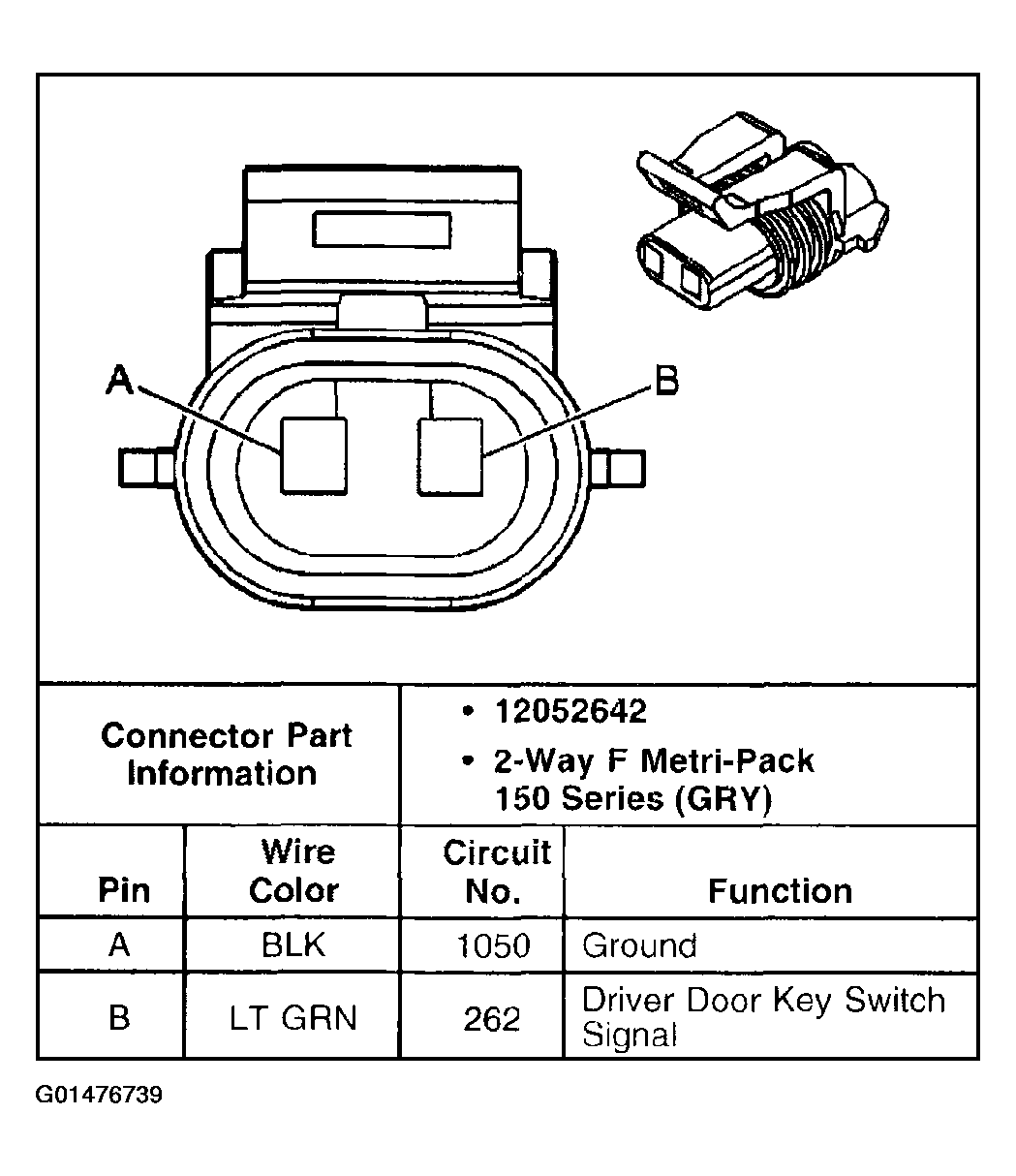

Fig 4: Door Lock Cylinder Switch - Front Passenger

Courtesy of GENERAL MOTORS CORP.
