Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION for the complete operational details.

Disconnect the electrical connector from the cruise control servo module.

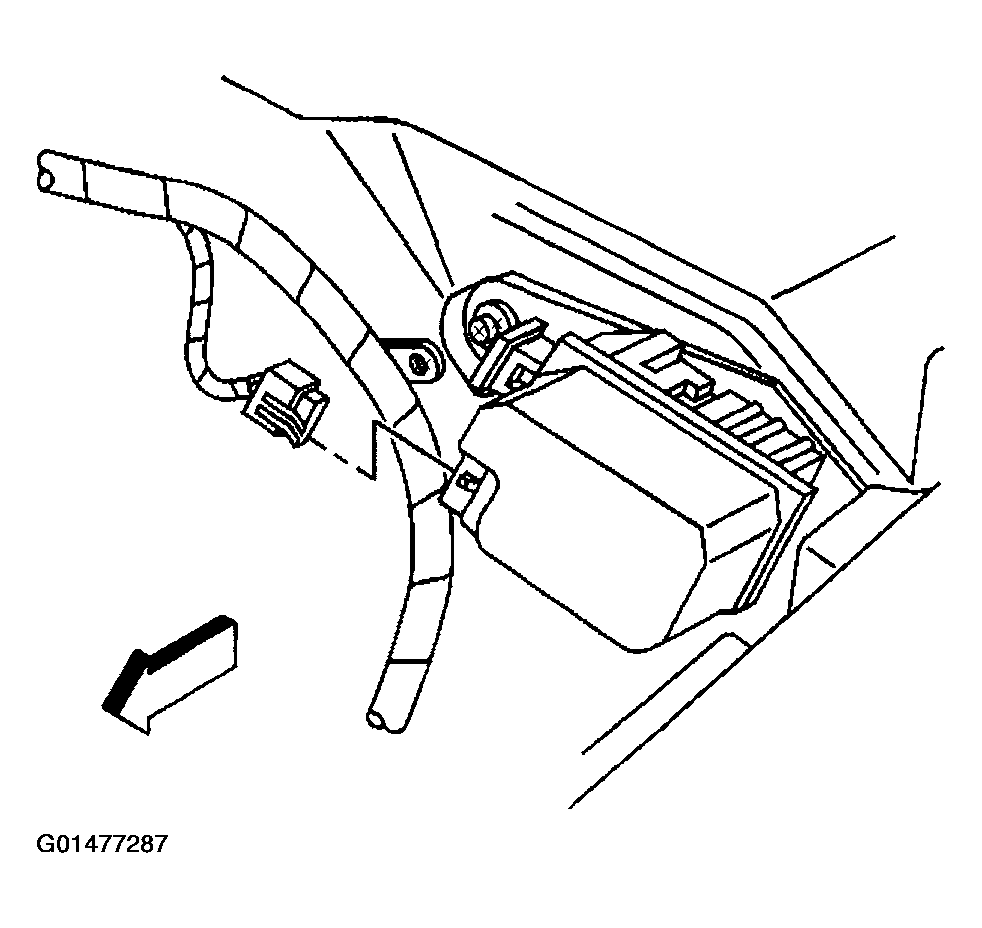

Fig 1: Disconnecting Electrical Connector From Cruise Control Servo Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable engine-end fitting (1) from the slot in the engine throttle bracket.
In order to release the tension on the cruise control adjuster, rotate the cam lever. Disconnect the cruise control cable adjuster (3) from the nail head on the throttle cam lever.

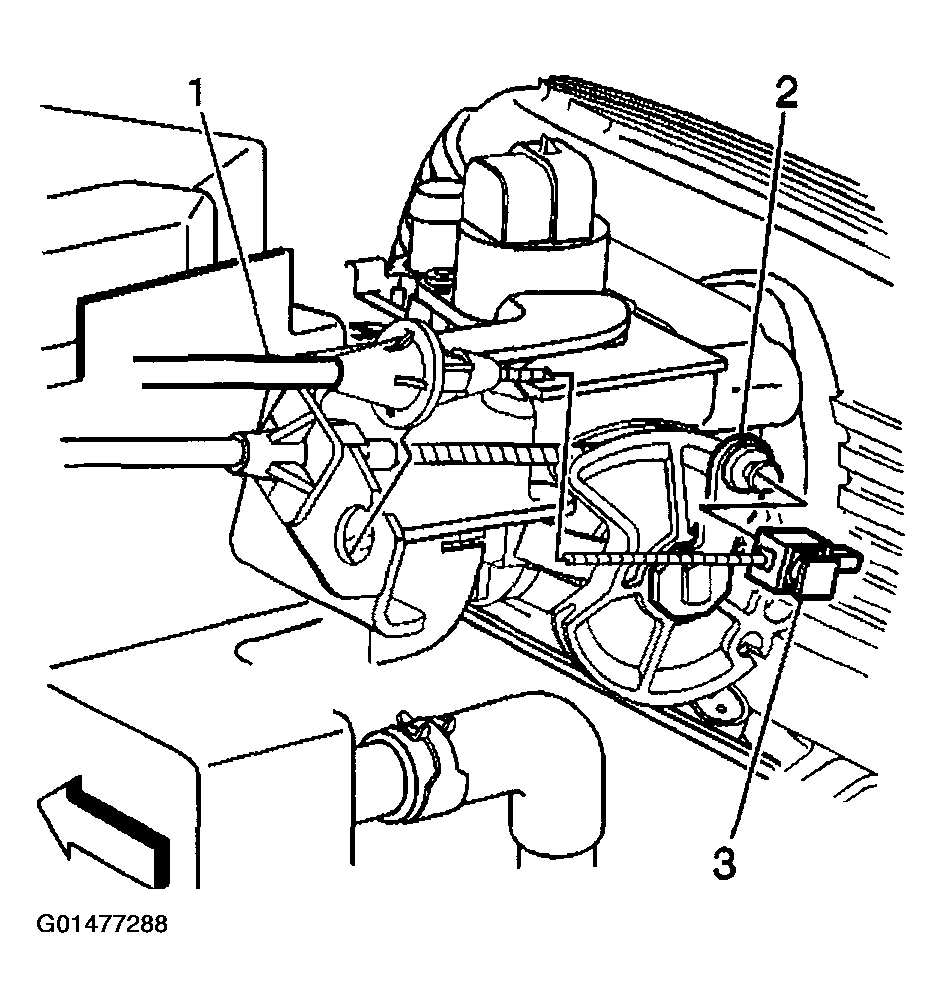

Fig 2: Disconnecting Cruise Control Cable Engine-End Fitting
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable fitting from the cruise control module by carefully prying out the fitting using a flat-bladed tool.

Fig 3: Disconnecting Cruise Control Cable Fitting From Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable bead from the fitting on the cruise control module ribbon.
Remove the cruise control cable from the vehicle.

Fig 4: Disconnecting Cruise Control Cable Bead From Fitting
Courtesy of GENERAL MOTORS CORP.
