Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION for the complete operational details.

NOTE: Do not remove the C-clip from the cruise control connector. The C-clip was not designed for removal. Damage may occur when removing.

Open the hood.

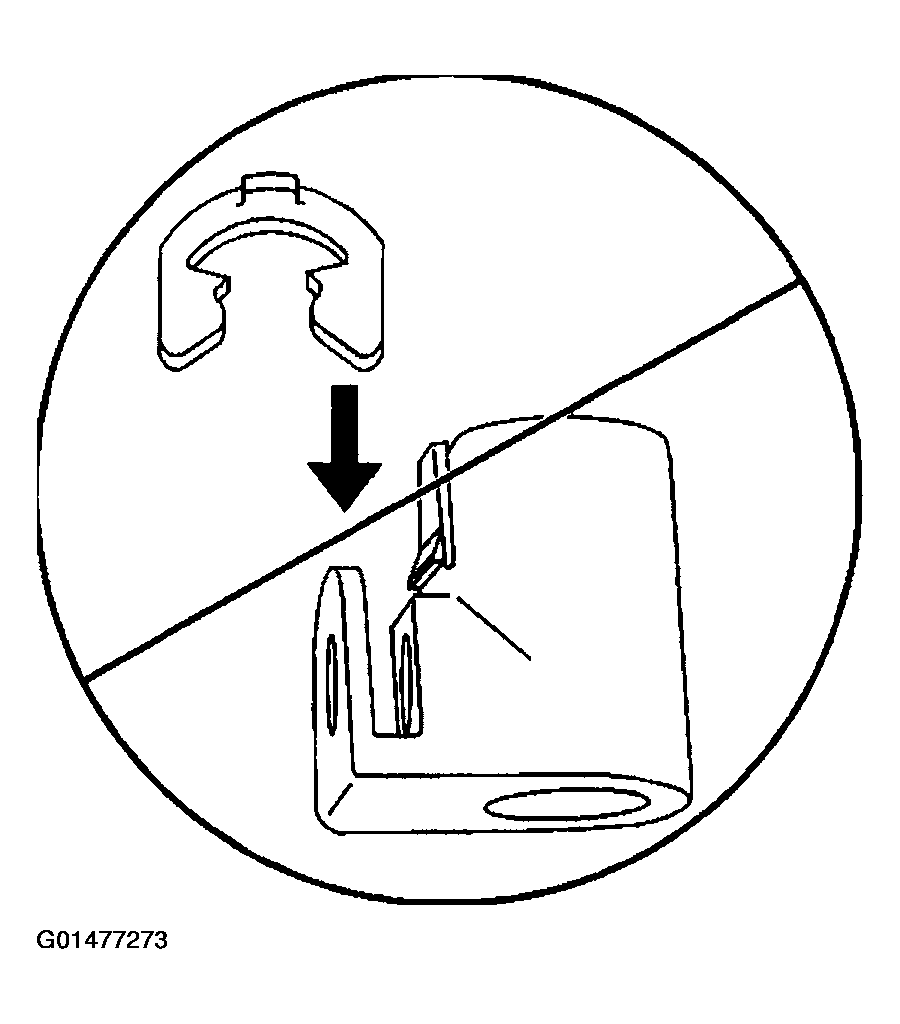

Fig 1: C-Clip At Cruise Control Connector
Courtesy of GENERAL MOTORS CORP.
Do not remove the adjuster screw from the end of the cruise control cable. No adjustment will be needed.

Fig 2: Adjuster Screw At End Of Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control cable from the throttle linkage.
Use a suitable tool to lightly pry off the end of the cruise control cable from the stud on the throttle lever.

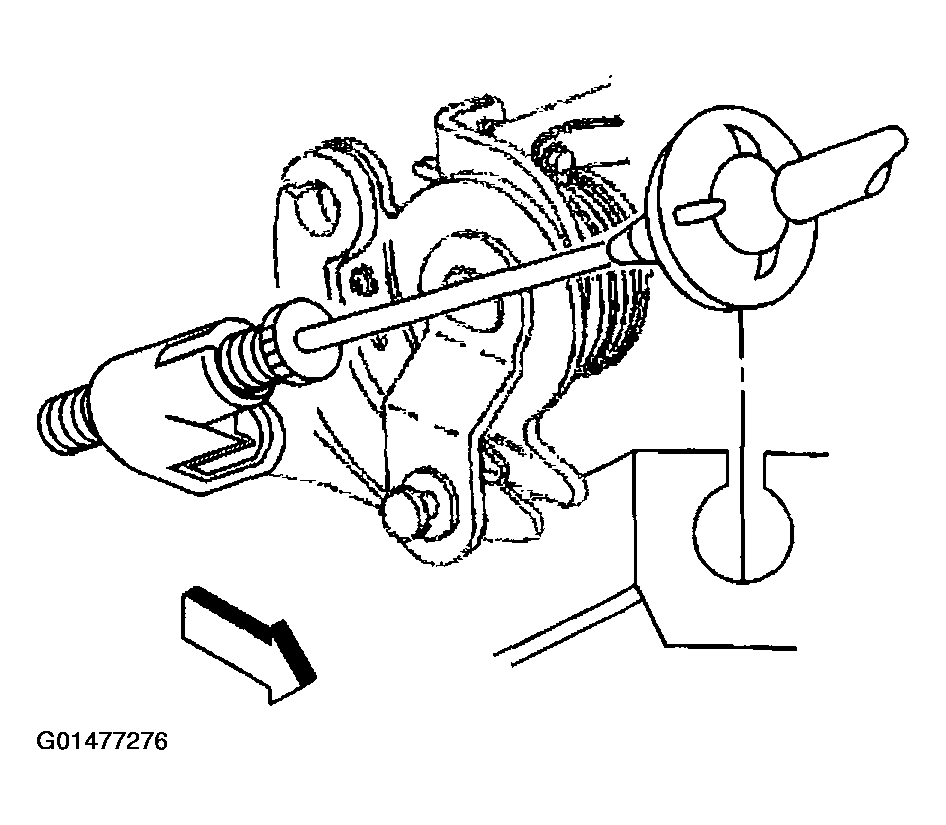

Fig 3: Removing Cruise Control Cable From Throttle Linkage
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable from the round hole in the engine cable bracket.

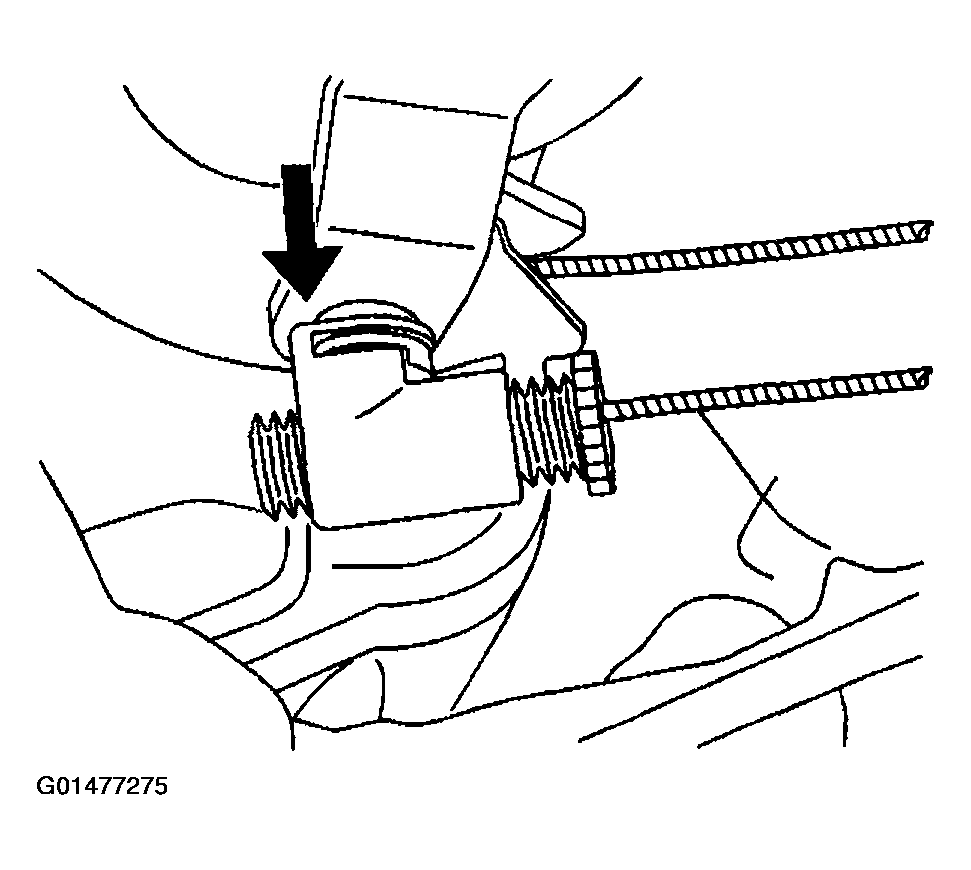

Fig 4: Disconnecting Cruise Control Cable From Round Hole In Engine Cable Bracket
Courtesy of GENERAL MOTORS CORP.

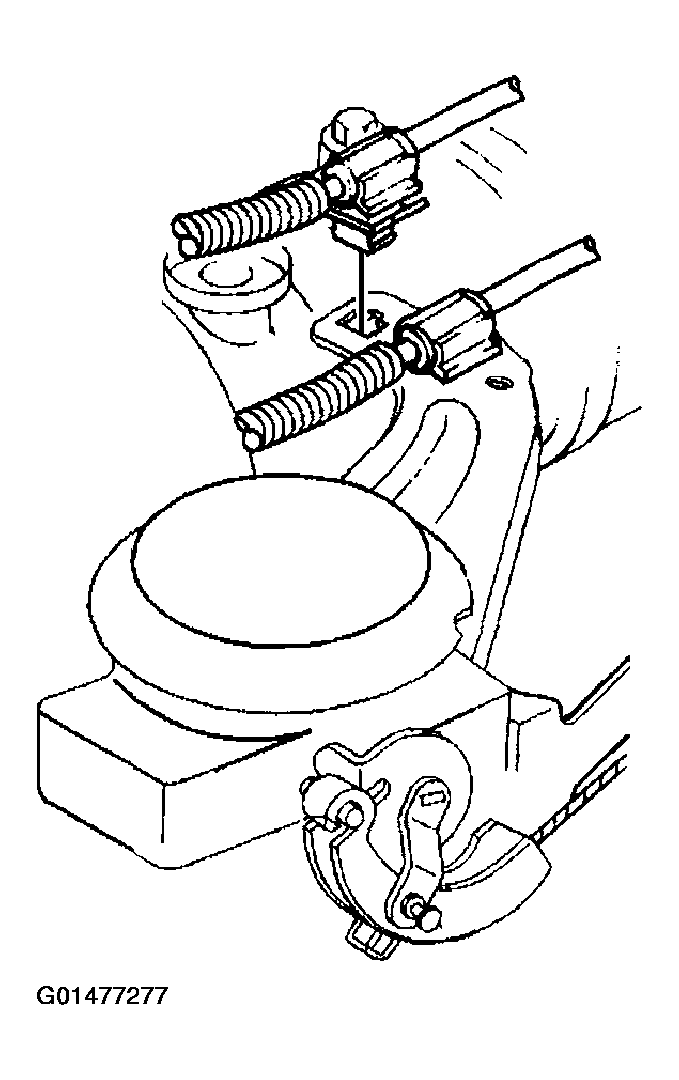

Disconnect the cruise control cable locator clip from the rectangular hole in the routing bracket.

Fig 5: Disconnecting Cruise Control Cable Locator Clip From Rectangular Hole In Routing Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control cable from the cruise control module housing.
Important: Do not allow the cruise control ribbon (1) to retract into the module assembly.
Disconnect the cruise control cable bead (2) from the end of the ribbon (1).
Remove the cruise control cable from the vehicle.

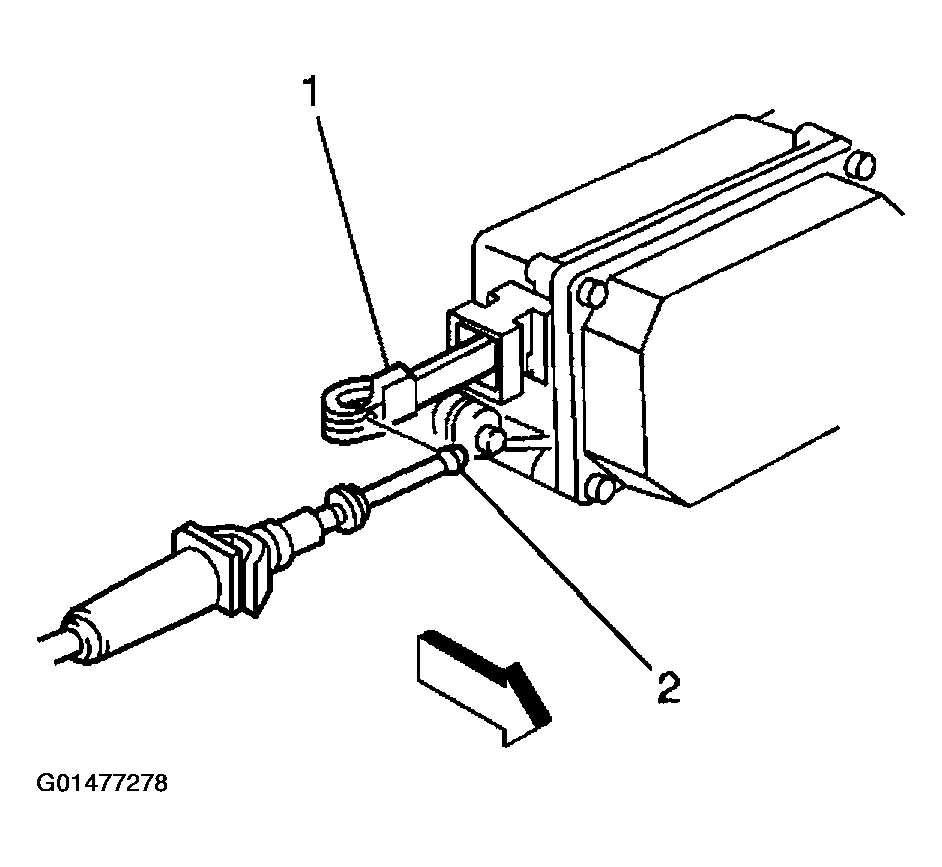

Fig 6: Disconnecting Cruise Control Cable Bead From End Of Ribbon
Courtesy of GENERAL MOTORS CORP.
