Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the air cleaner by pressing downward until the grommets are seated.

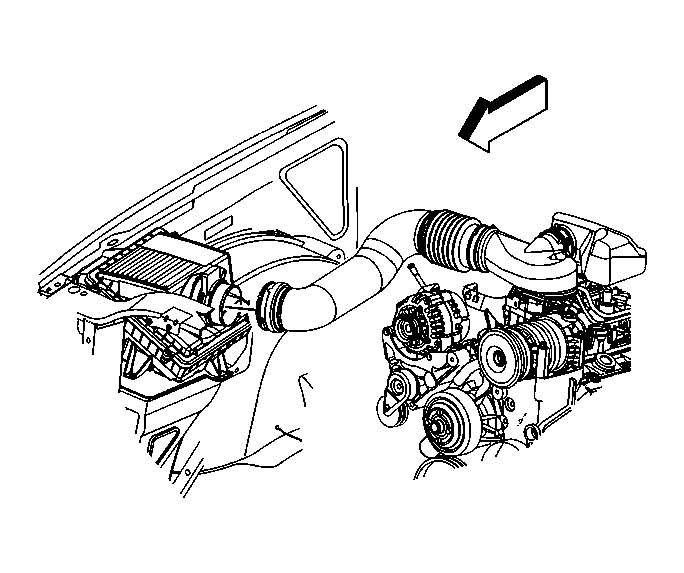

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Connect the MAF/IAT sensor electrical connector (4).

Fig 2: View Of Auxiliary Battery Relay, MAF, IAT & Coolant Level Sensor Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Install the outlet resonator to the MAT/IAT sensor.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Tighten the air cleaner outlet duct clamp at the MAF/IAT sensor.
Tighten: Tighten the clamp to 4 N.m (35 lb in).

Fig 3: View Of Air Cleaner Outlet Duct Clamp

Courtesy of GENERAL MOTORS CORP.
