Starter Relay: Locations

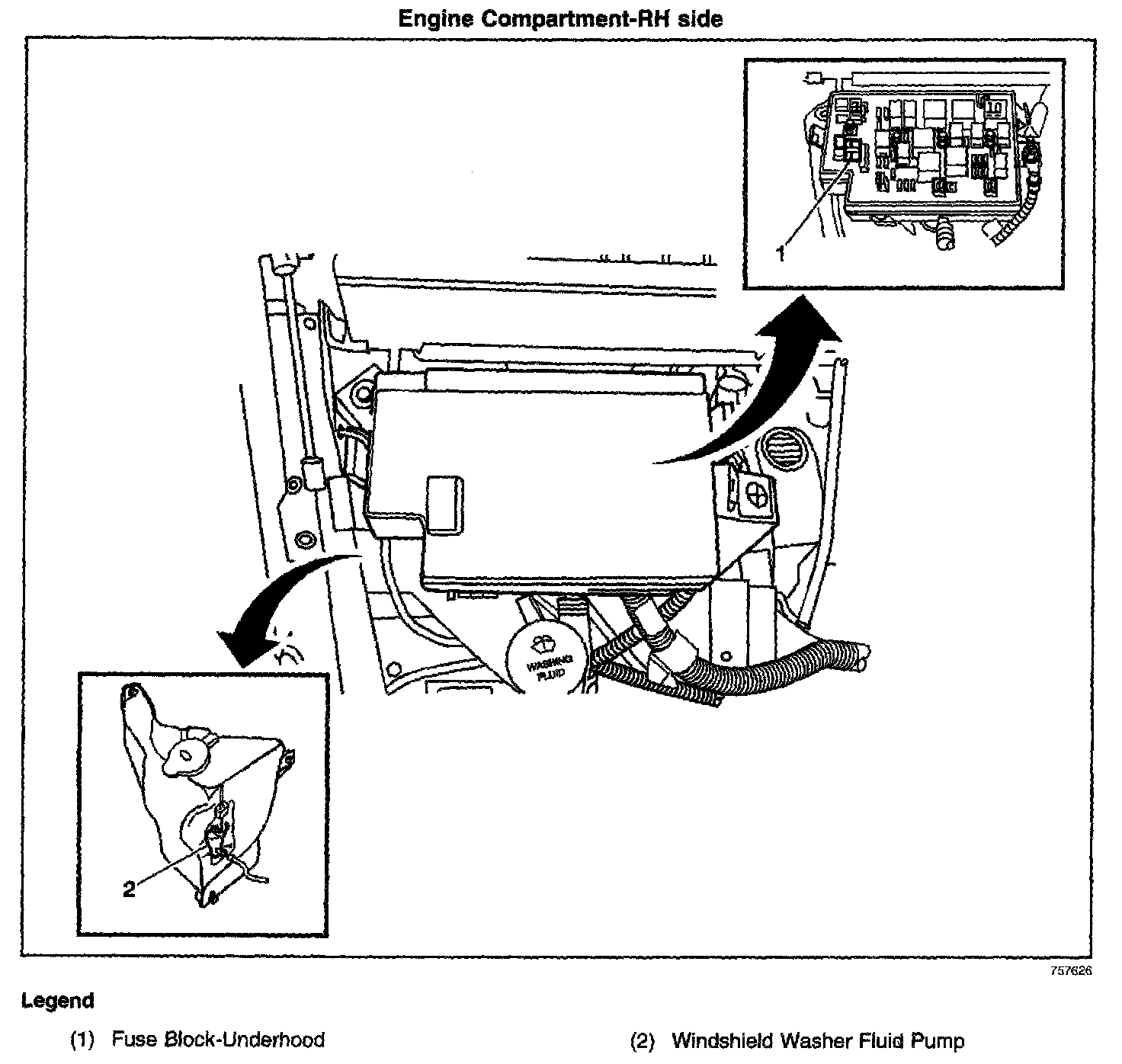

Locations View:




Engine compartment, front of the right wheelhouse, above the battery

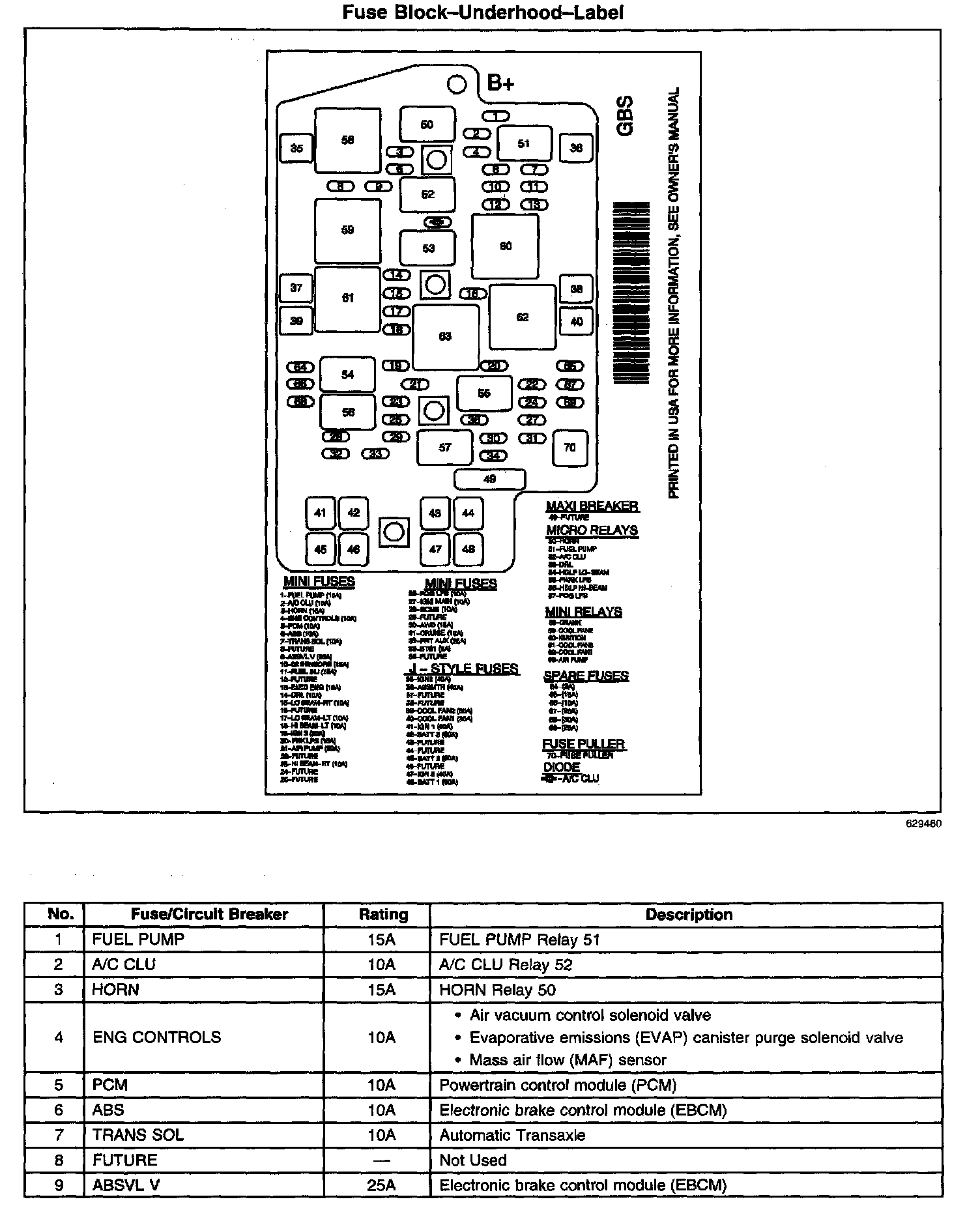

Fuse Block-Underhood-Label (Part 1 Of 3):

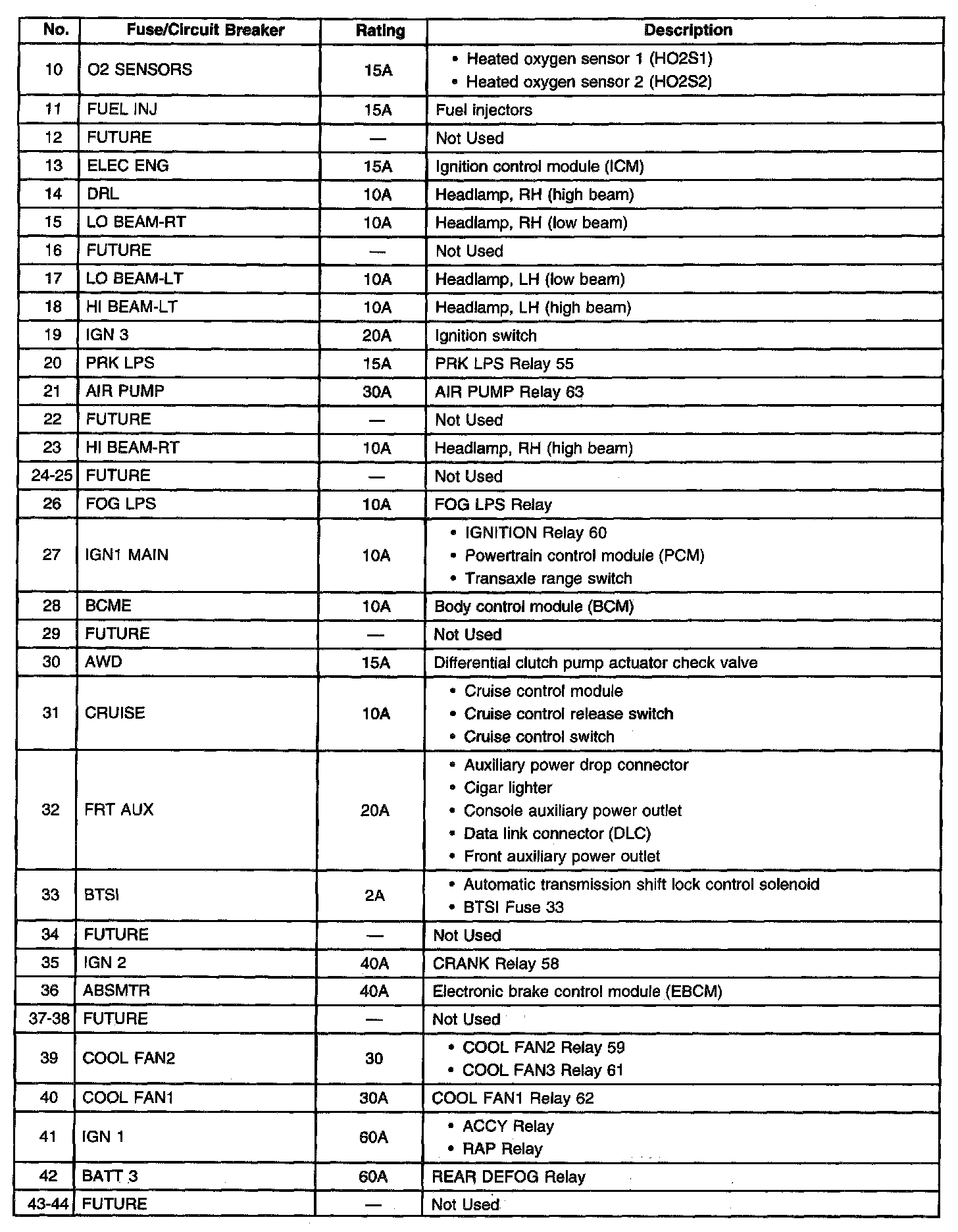

Fuse Block-Underhood-Label (Part 2 Of 3):

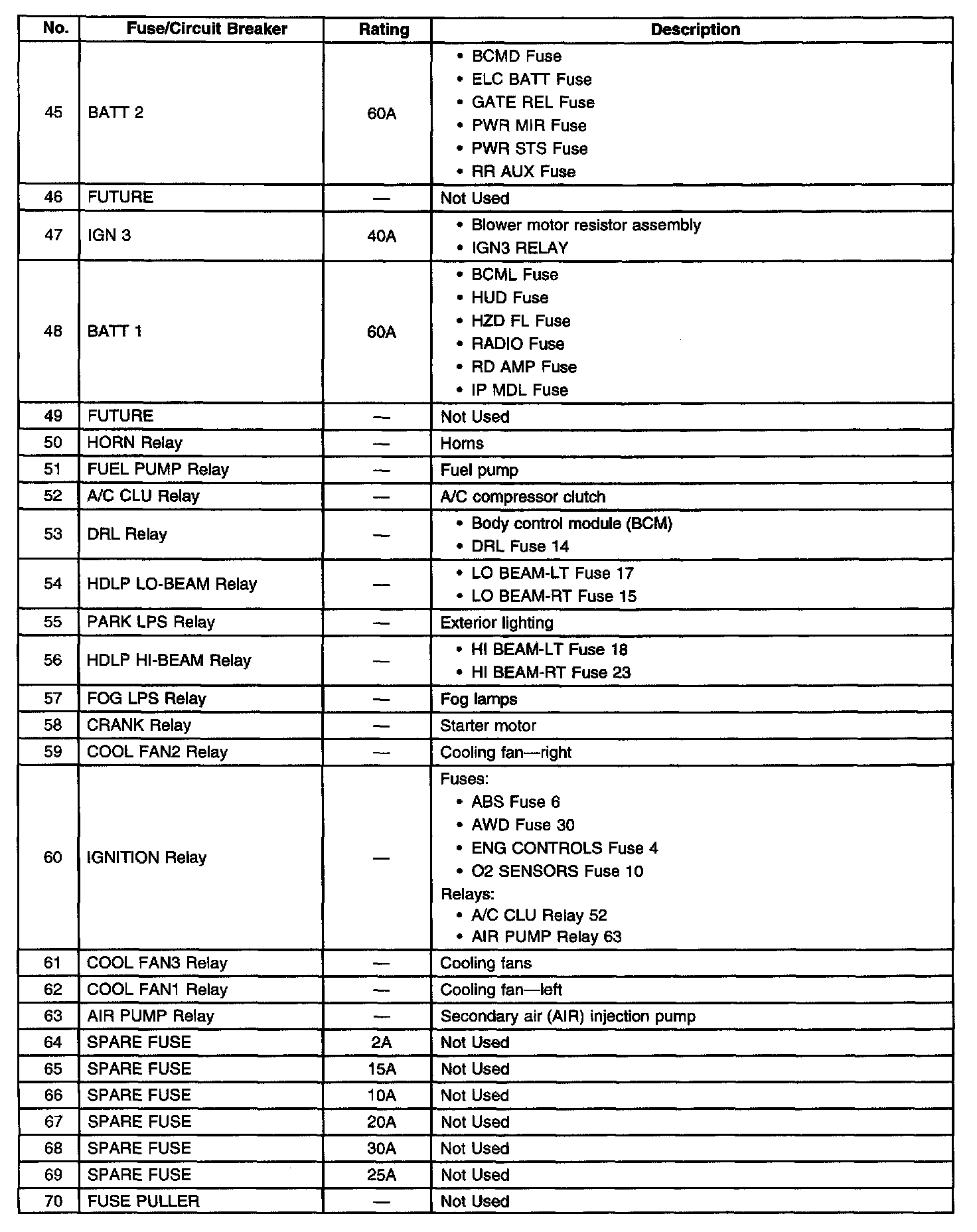

Fuse Block-Underhood-Label (Part 3 Of 3):
