Fuse Block - IP

Locations View:

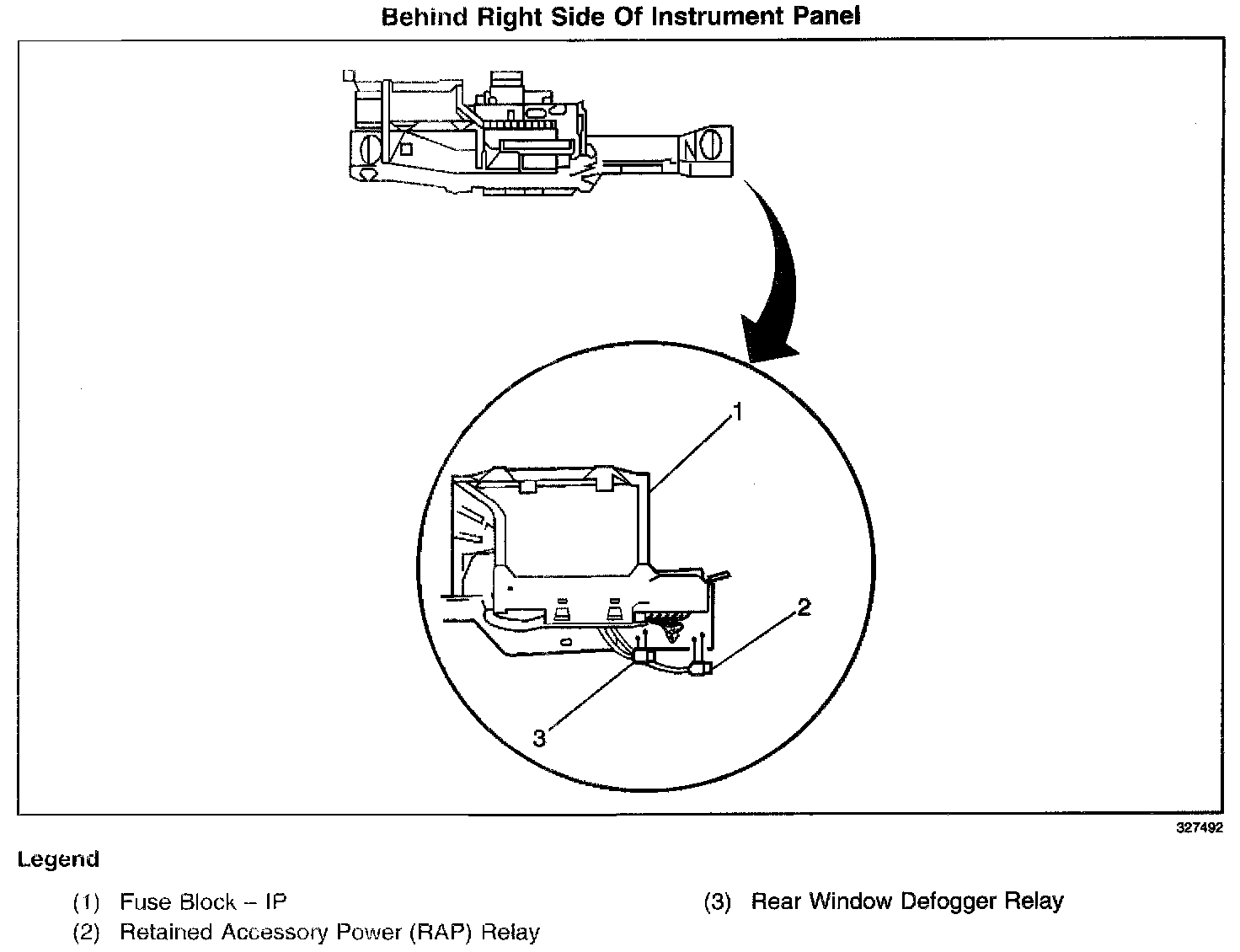

Behind Right Side Of Instrument Panel:

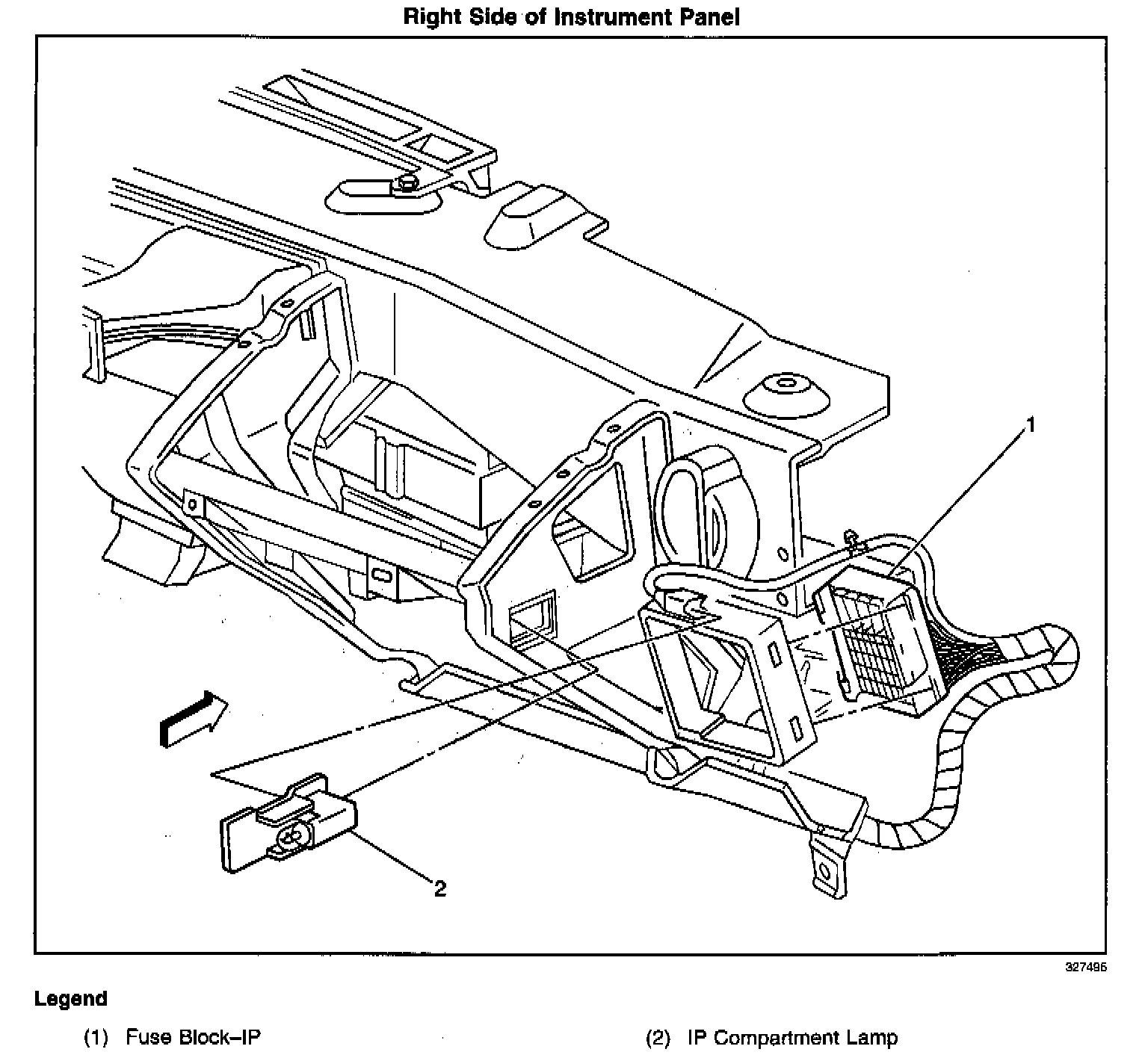

Right side of the IP, in the IP compartment opening
