Fuse Block - I/P
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuse Block - I/P

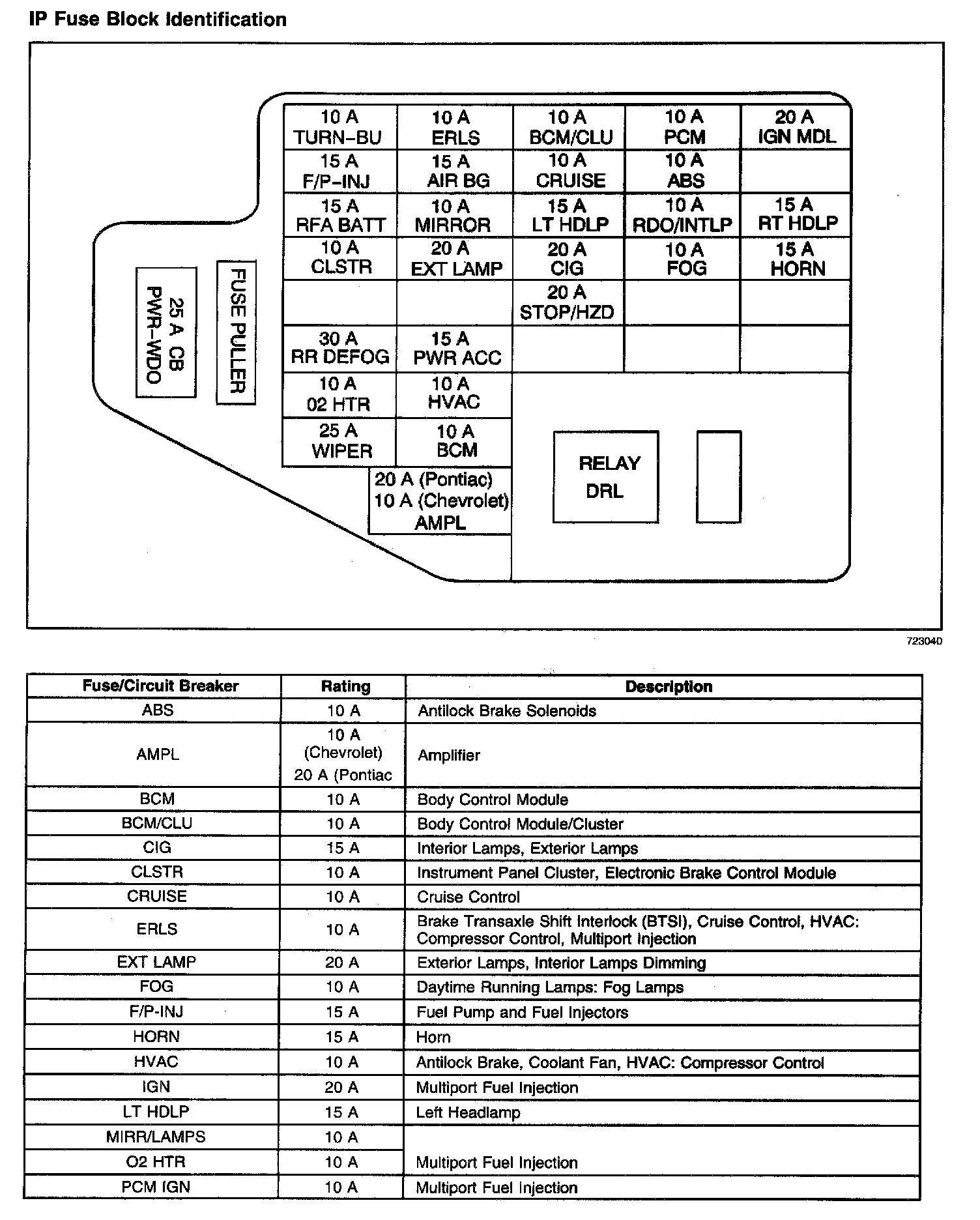

IP Fuse Block Identification (Part 1 Of 2):
IP Fuse Block Identification (Part 2 Of 2):
