Power Seat Systems Connector End Views

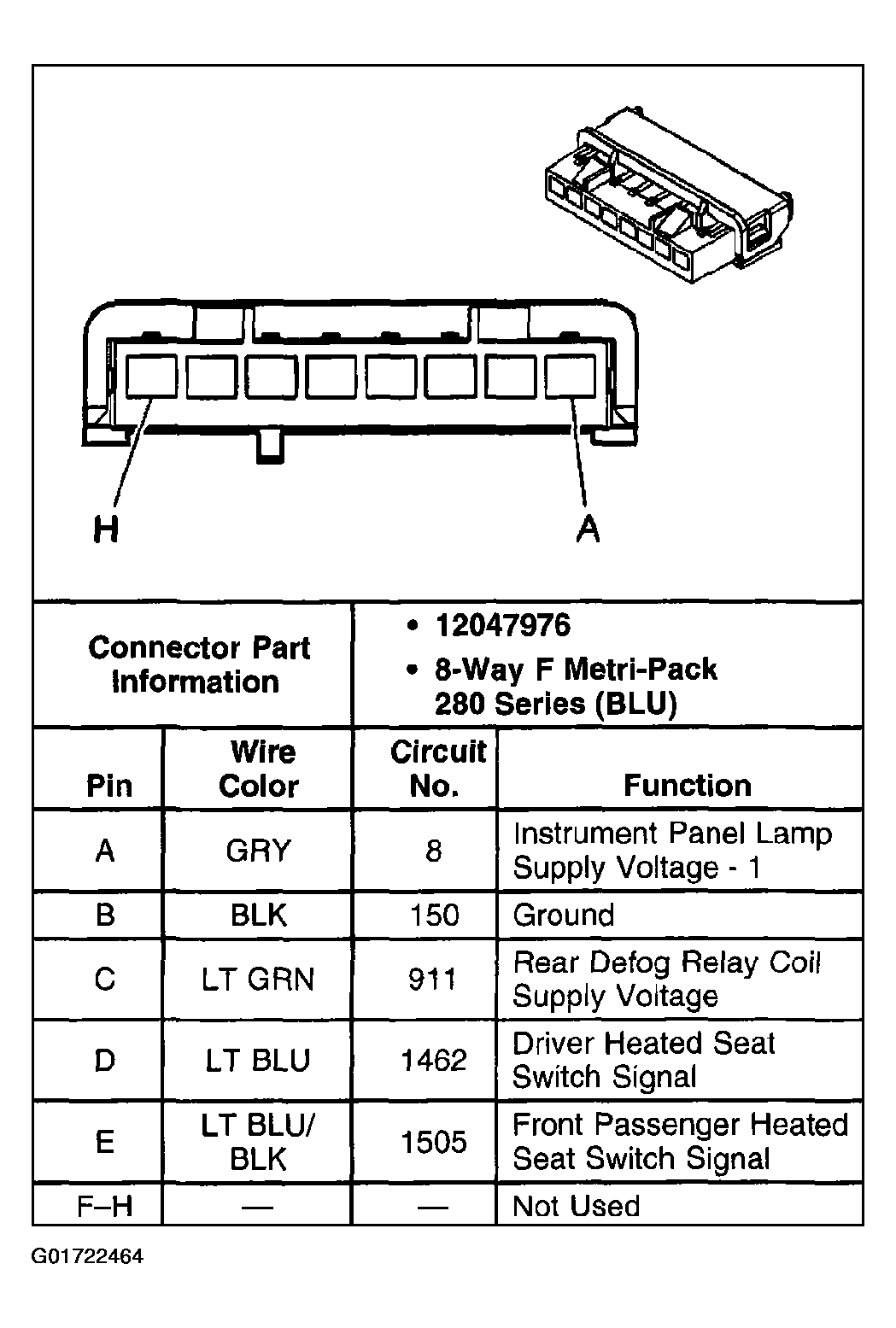

Fig 1: I/P Switch Assembly C2 Connector End Views
G01722464Courtesy of GENERAL MOTORS CORP.

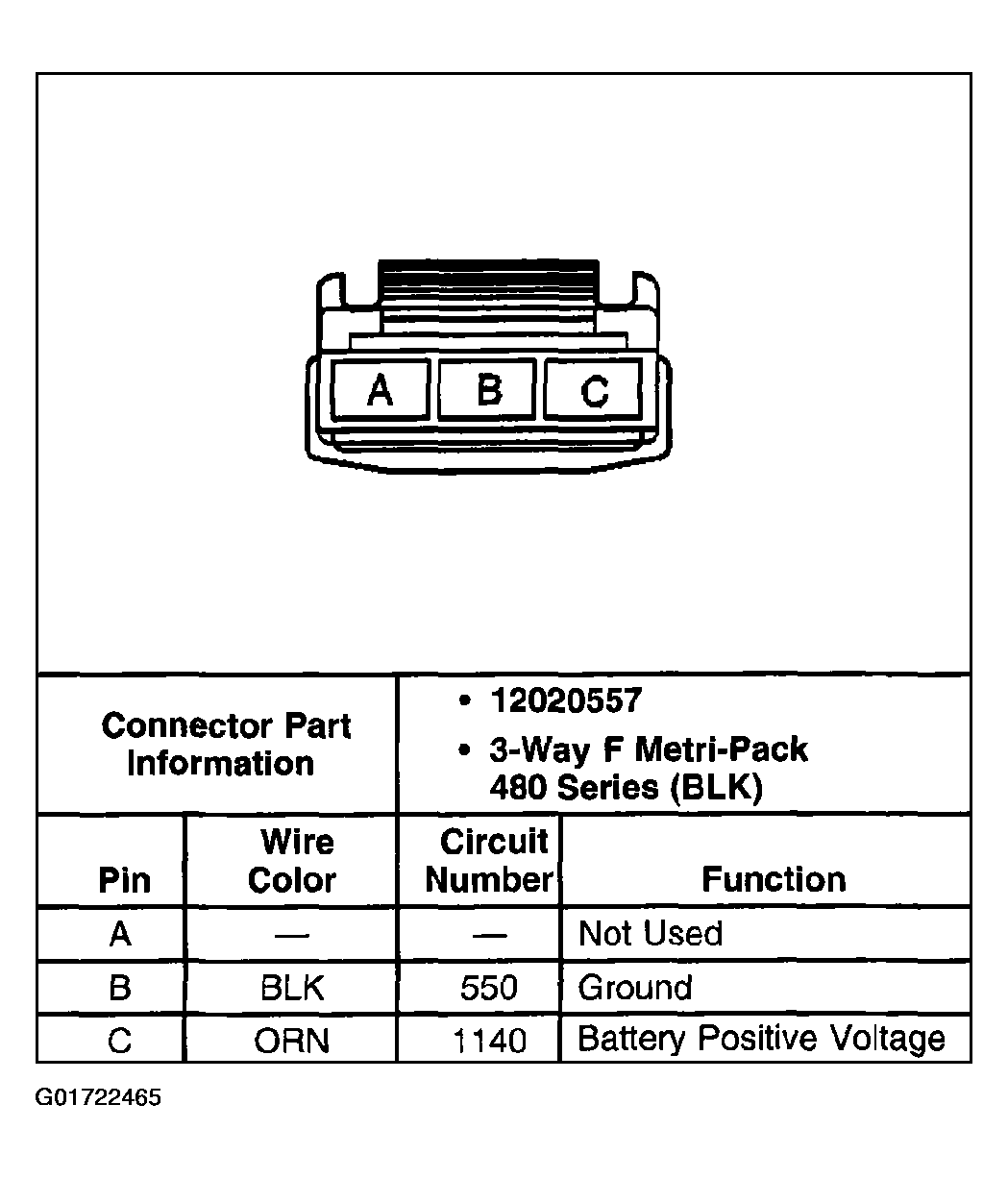

Fig 2: Memory Seat and Mirror Module C1 (A43) Connector End Views
G01722465Courtesy of GENERAL MOTORS CORP.

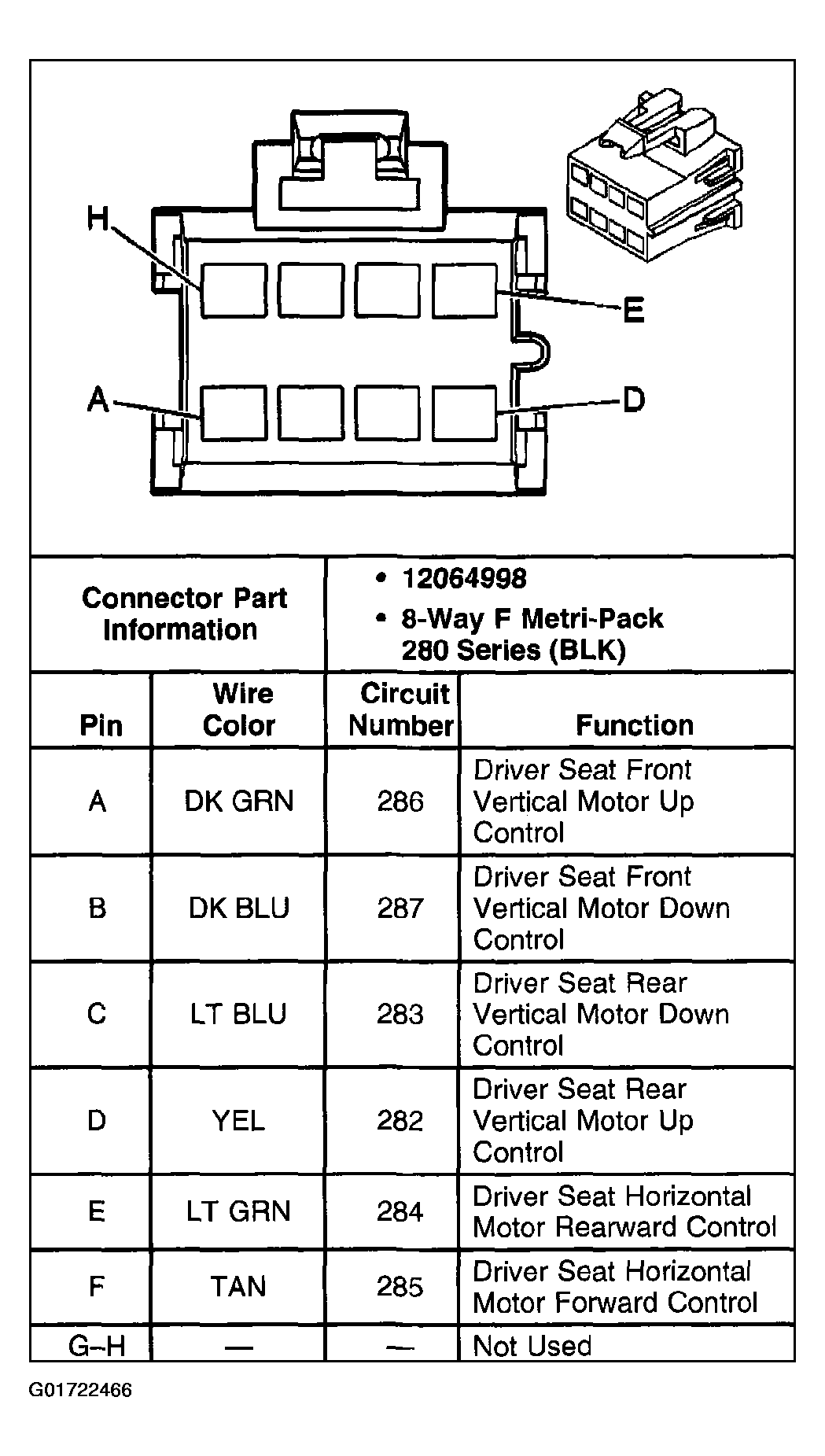

Fig 3: Memory Seat and Mirror Module C2 (A43) Connector End Views
G01722466Courtesy of GENERAL MOTORS CORP.

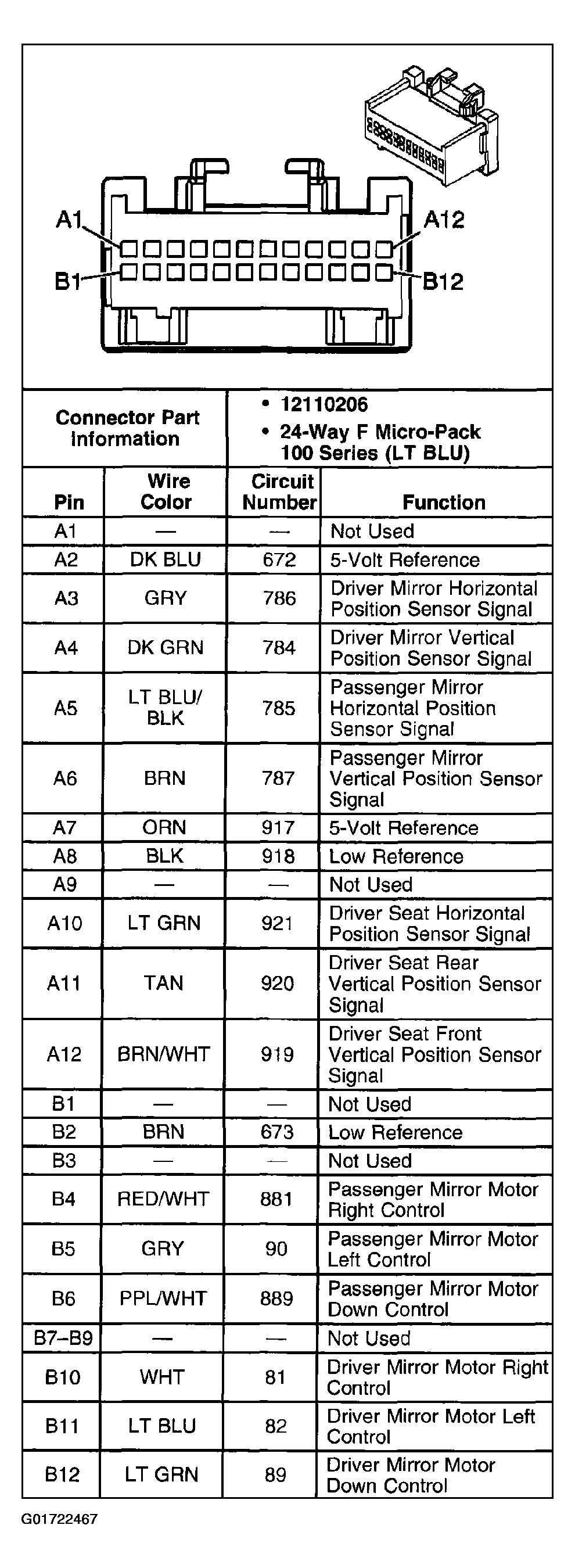

Fig 4: Memory Seat and Mirror Module C3 (A43) Connector End Views
G01722467Courtesy of GENERAL MOTORS CORP.

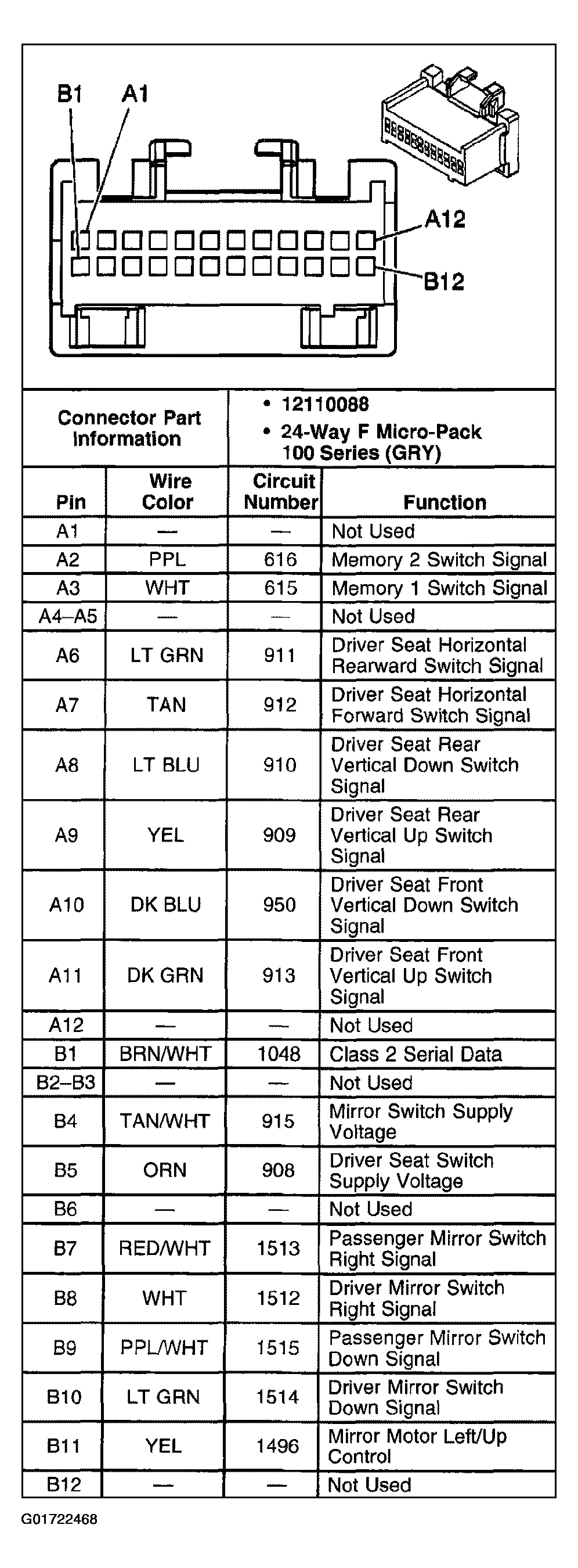

Fig 5: Memory Seat and Mirror Module C4 (A43) Connector End Views
G01722468Courtesy of GENERAL MOTORS CORP.

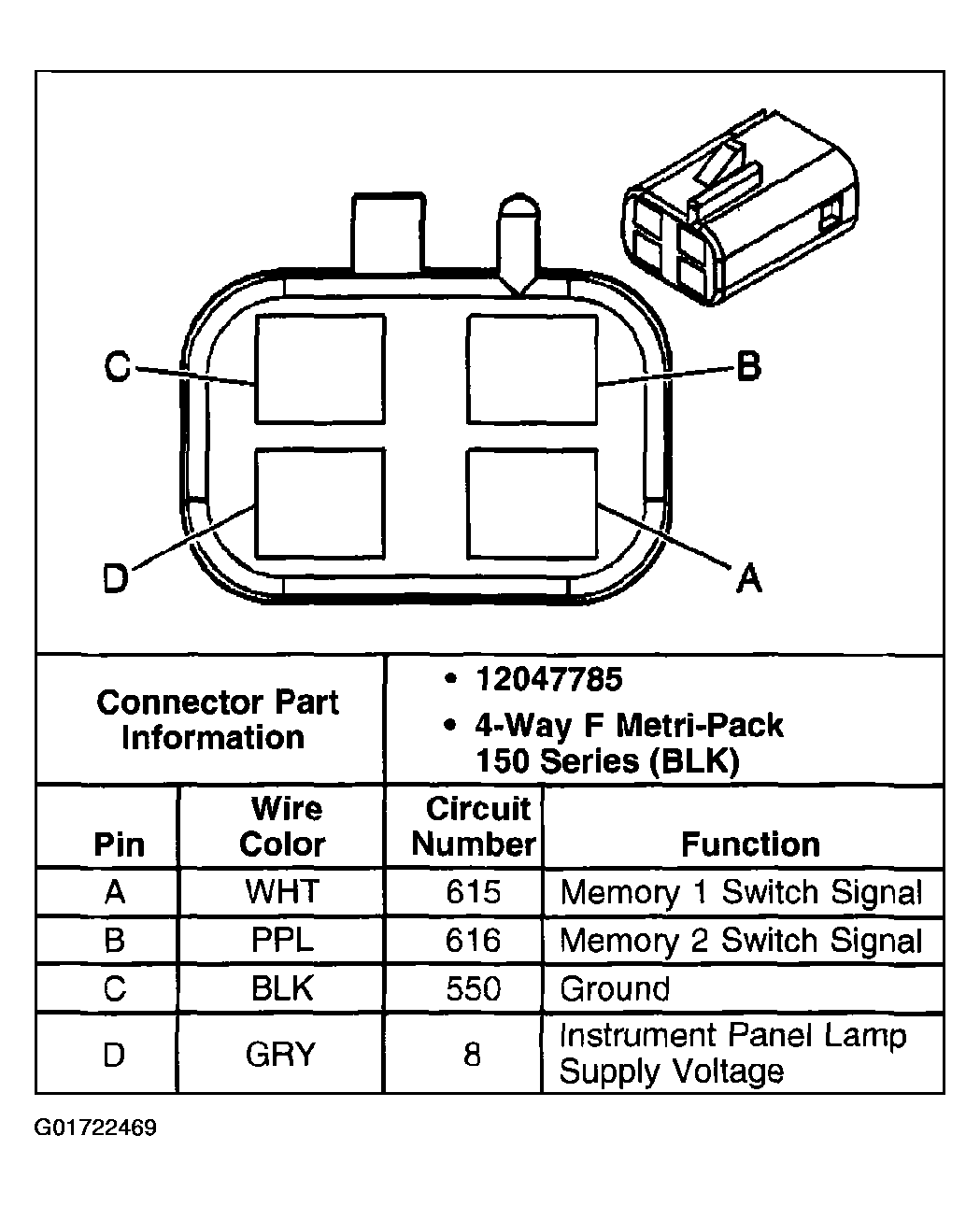

Fig 6: Memory Seat and Mirror Switch (A43) Connector End Views
G01722469Courtesy of GENERAL MOTORS CORP.

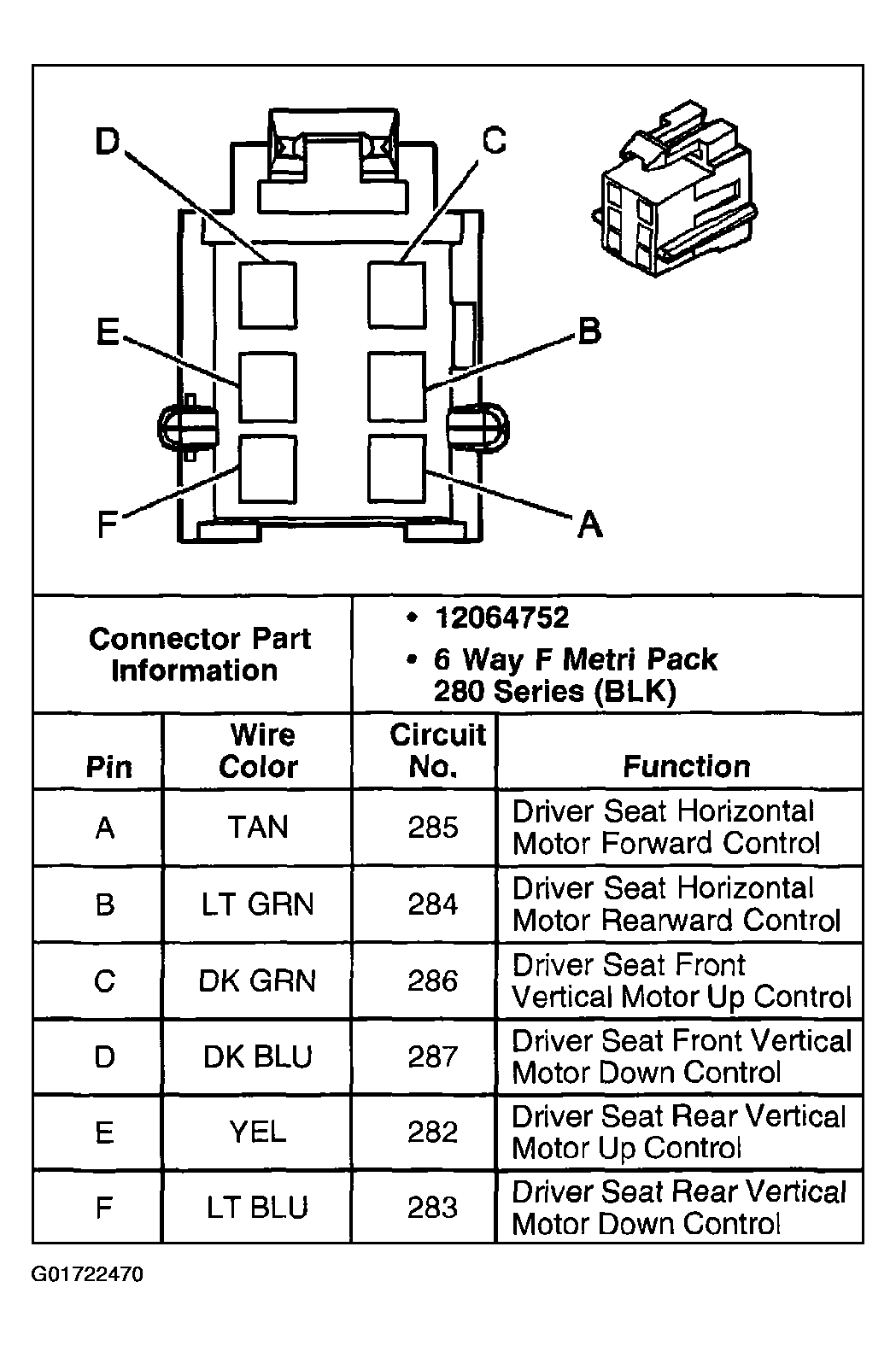

Fig 7: Seat Adjuster Motor Assembly - Driver Connector End Views
G01722470Courtesy of GENERAL MOTORS CORP.

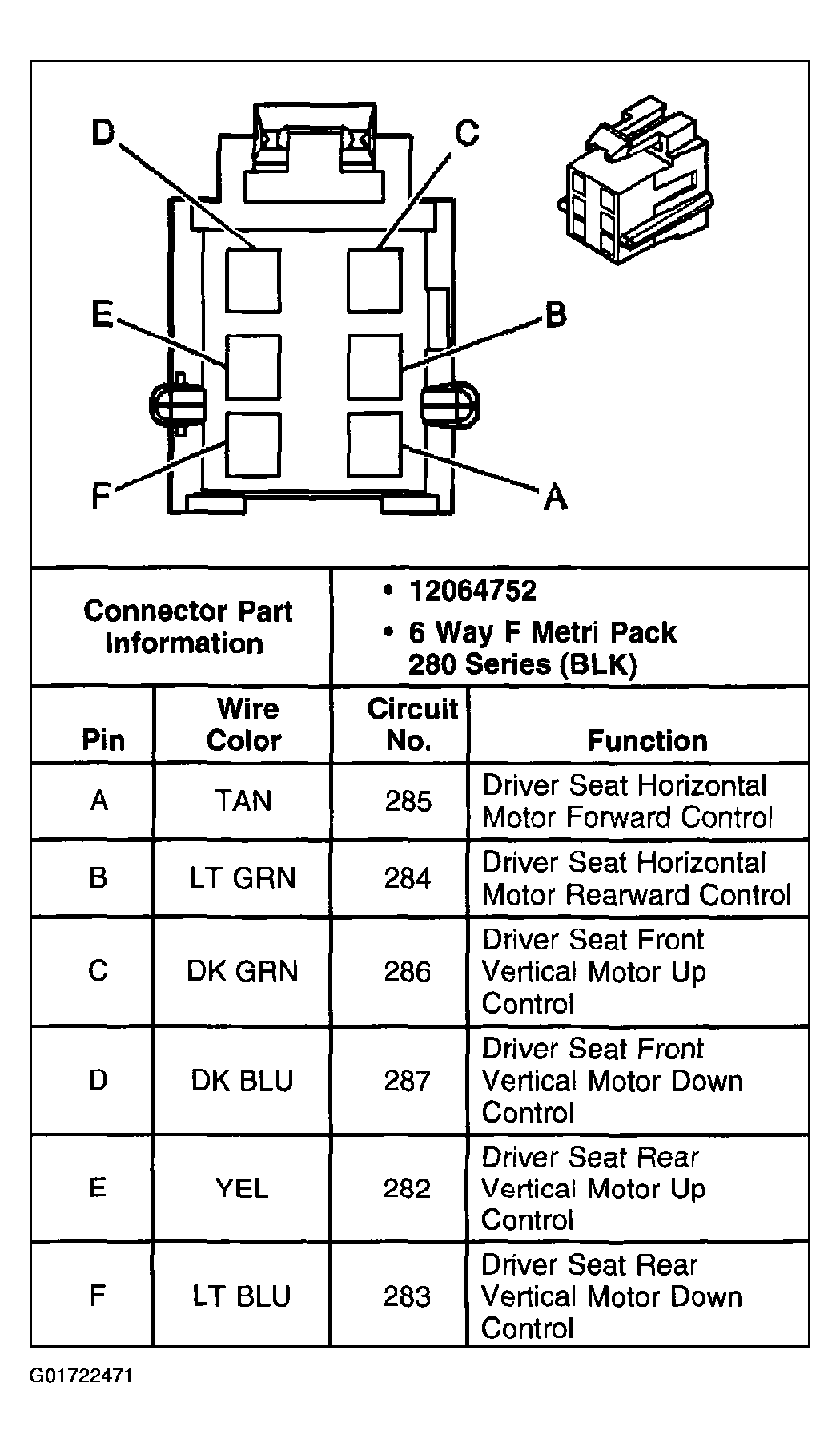

Fig 8: Seat Adjuster Motor Assembly - Front Passenger Connector End Views
G01722471Courtesy of GENERAL MOTORS CORP.

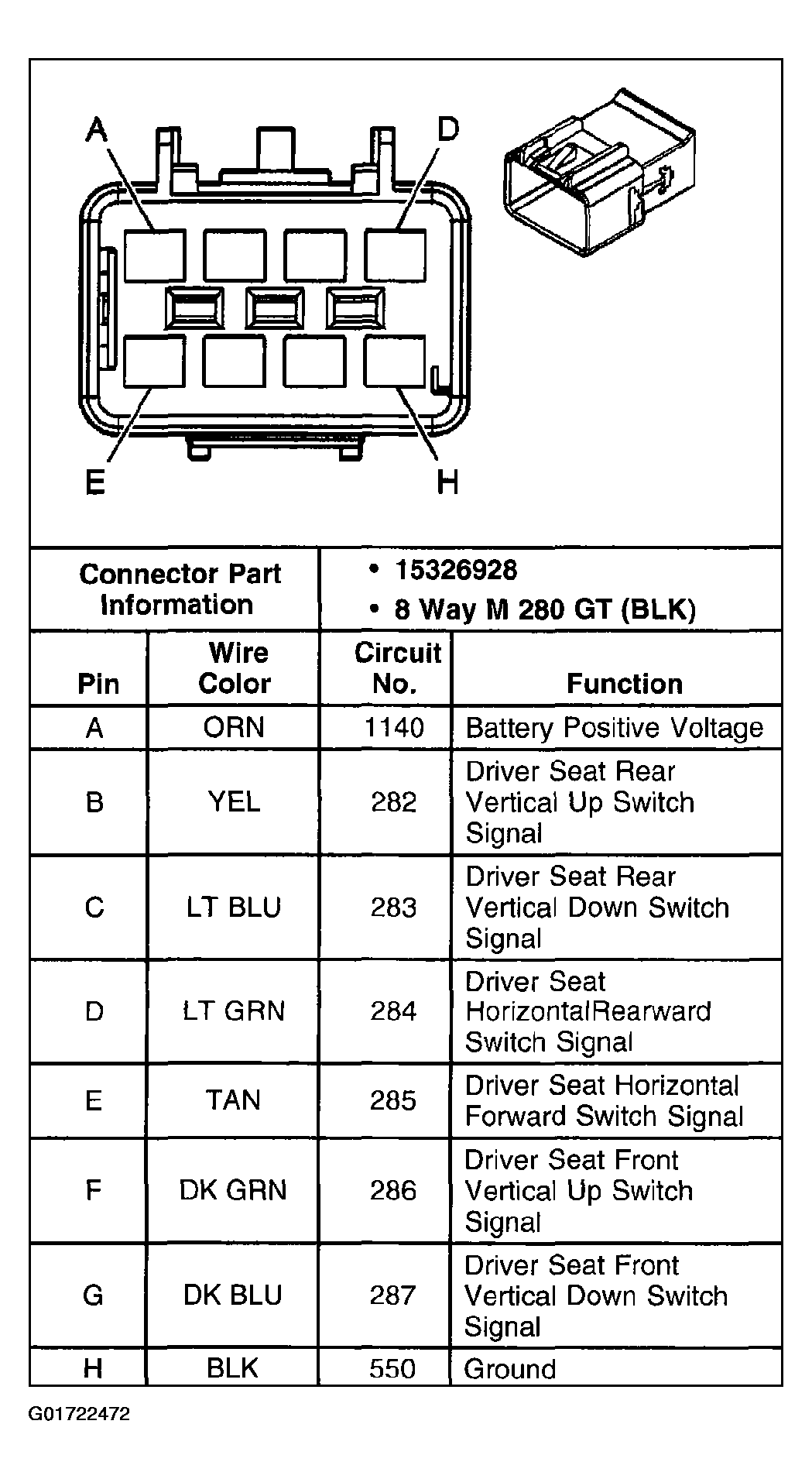

Fig 9: Seat Adjuster Switch - Driver (w/o A43) Connector End Views
G01722472Courtesy of GENERAL MOTORS CORP.

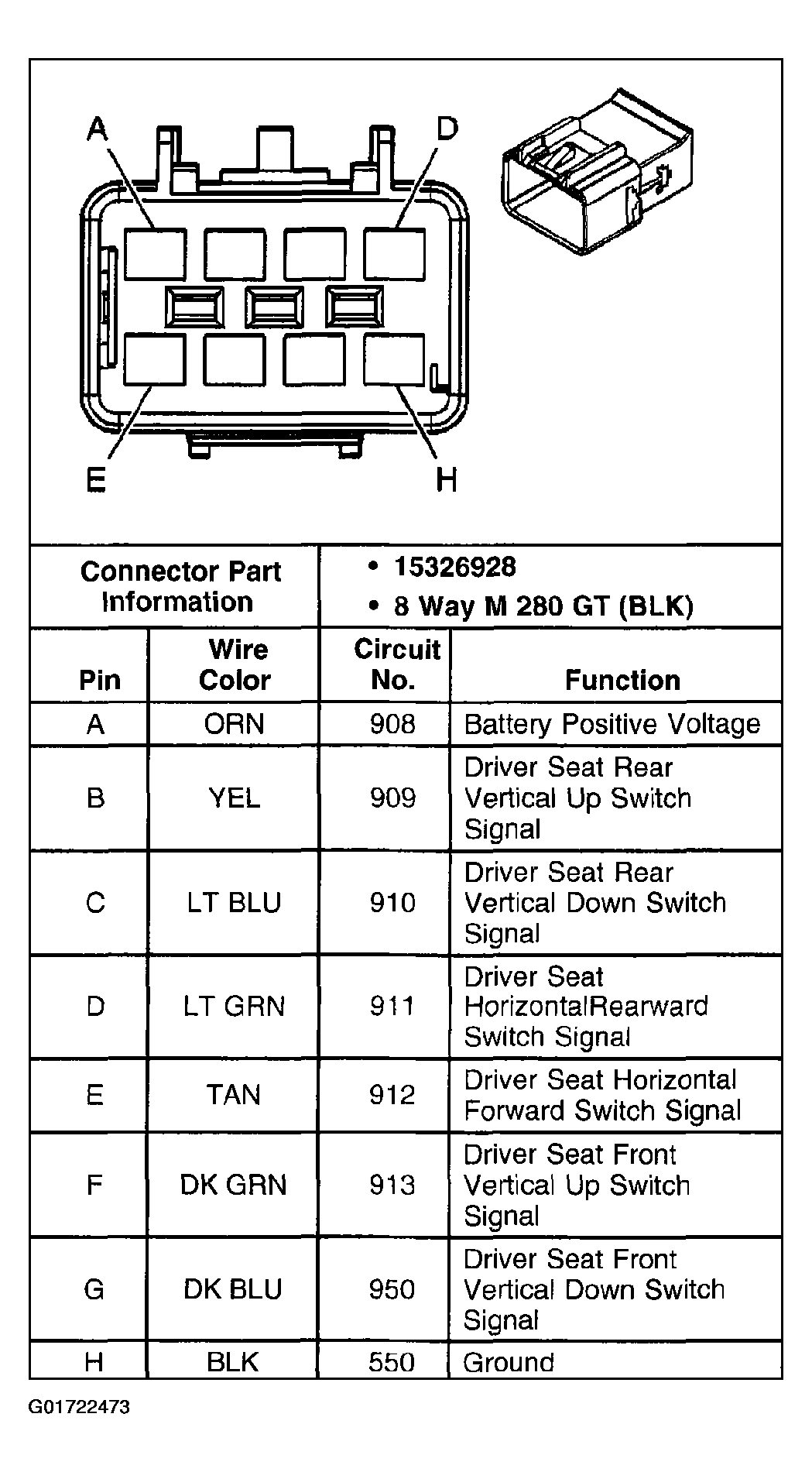

Fig 10: Seat Adjuster Switch - Driver (A43) Connector End Views
G01722473Courtesy of GENERAL MOTORS CORP.

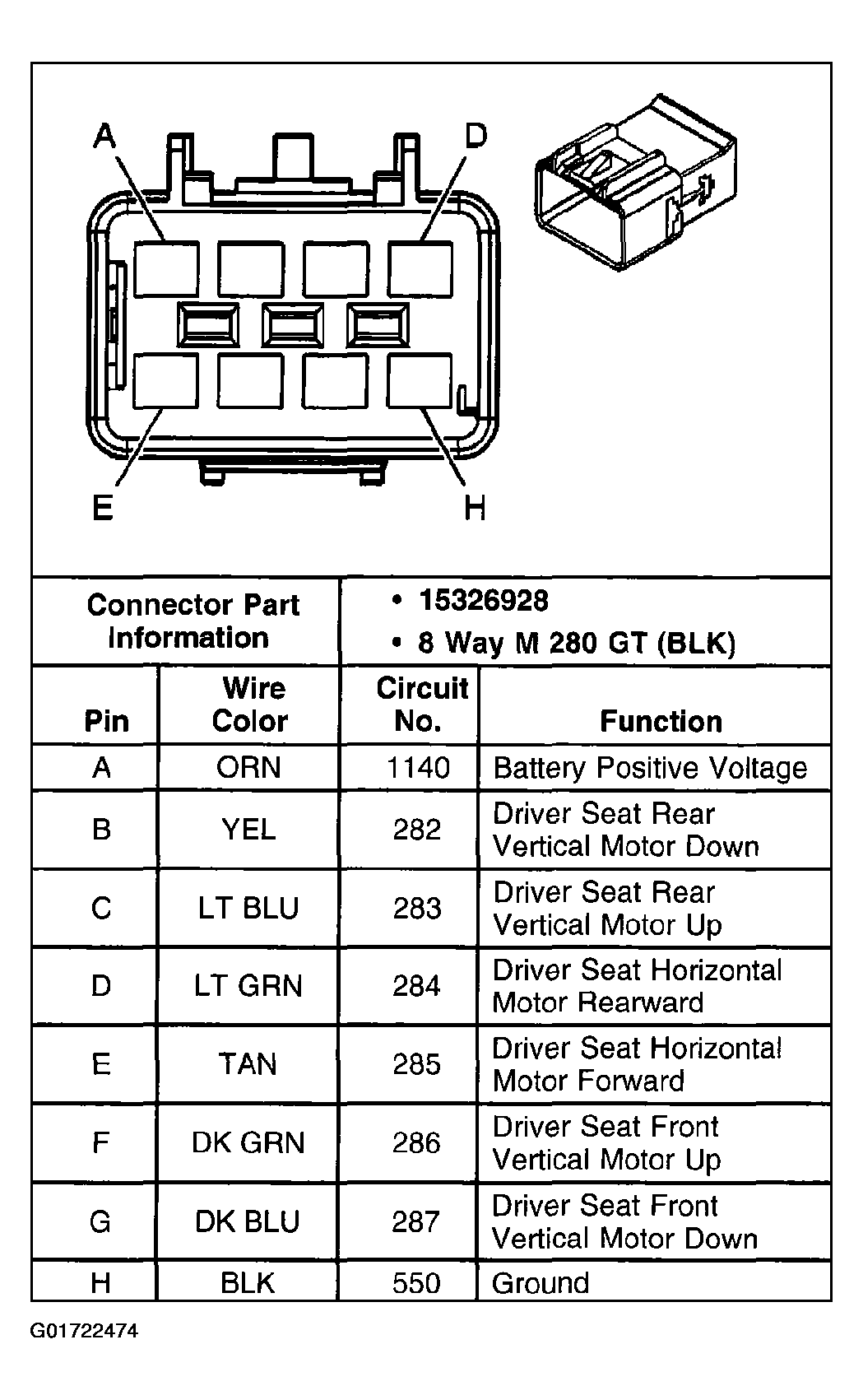

Fig 11: Seat Adjuster Switch - Front Passenger Connector End Views
G01722474Courtesy of GENERAL MOTORS CORP.
