Memory Seats Schematics

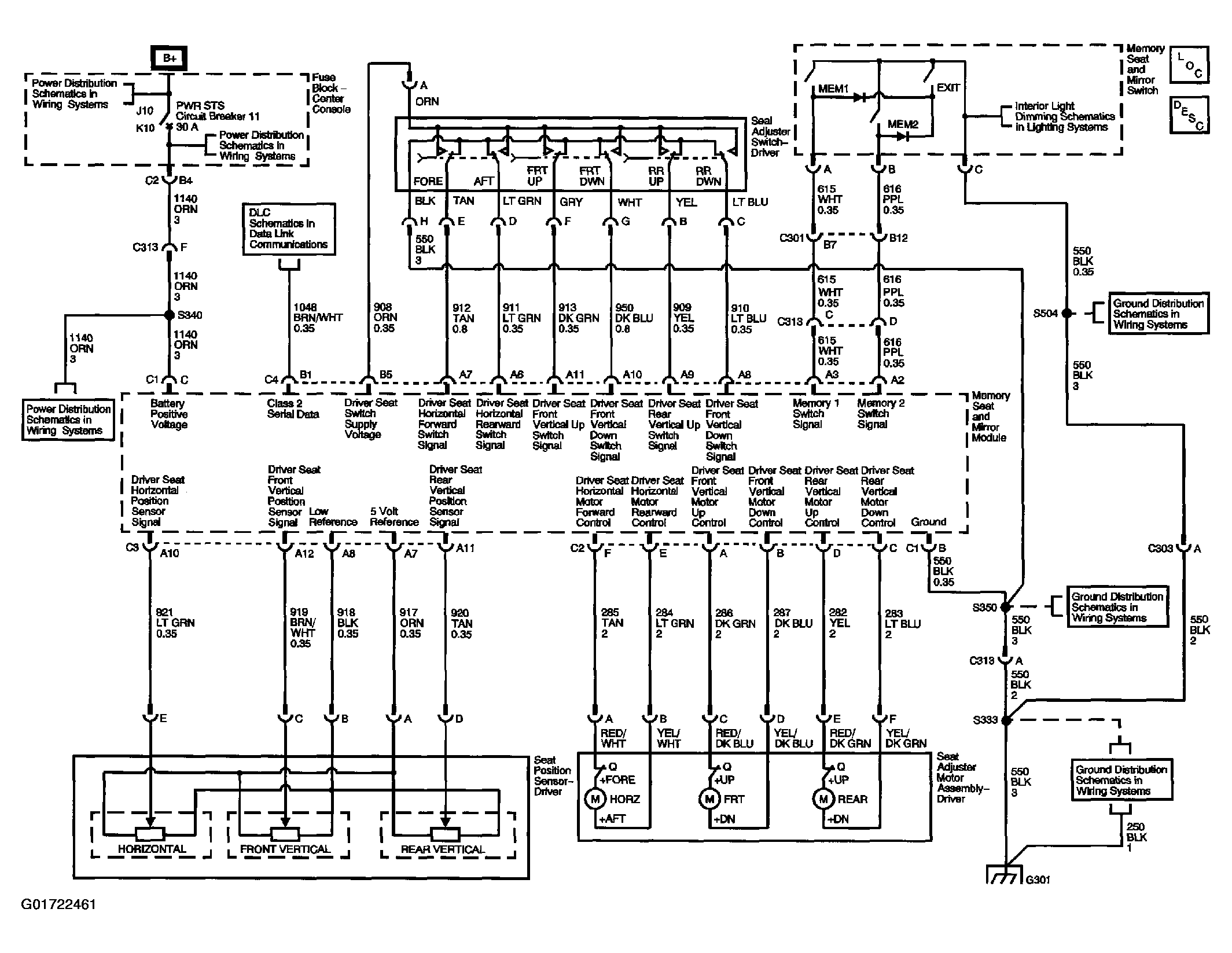

Fig 1: Memory Seats Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
