Installation Procedure

  1. Install the power window switch into the power window switch plate. Press the switch into place until fully seated.
  2. Connect the electrical connectors to the power window switch.
  3. Install the power window switch plate to the front door panel. Press the plate into place until fully seated.

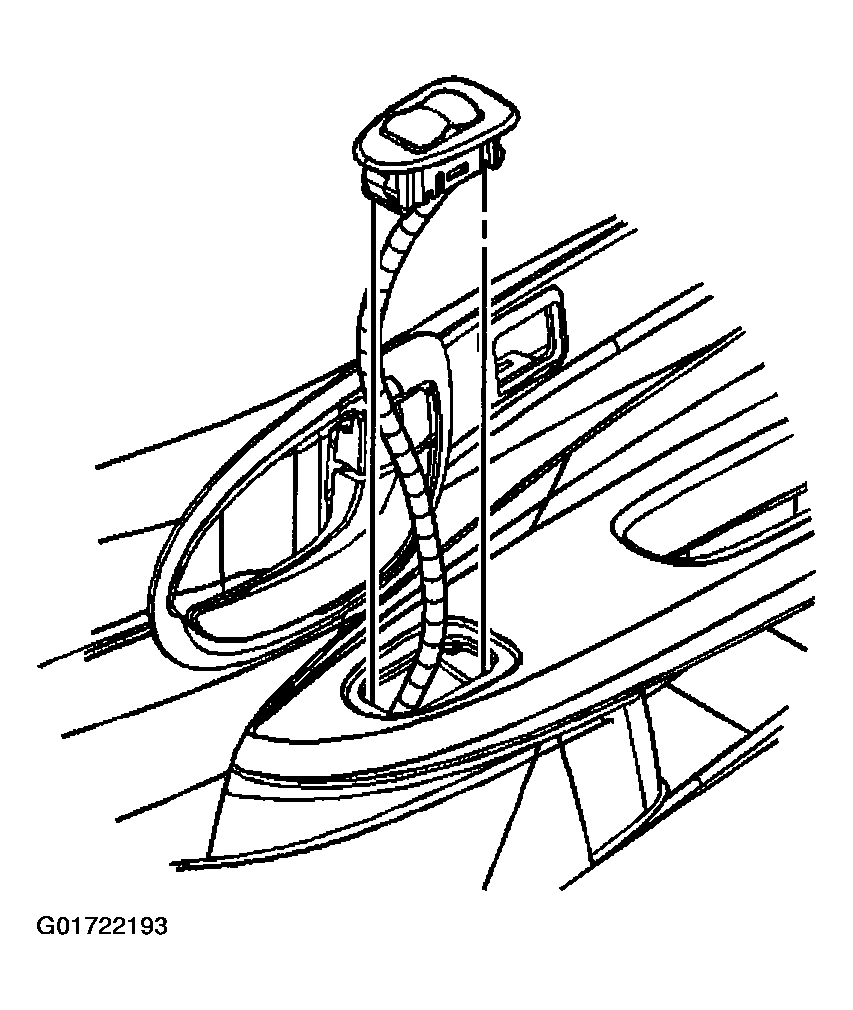

    Fig 1: Installing Power Window Switch (Right Front)
    G01722193Courtesy of GENERAL MOTORS CORP.
