Removal Procedure

  1. Open the rear door.
  2. Remove the rear pillar auxiliary weatherstrip using J 38778.
    Fig 1: Removing Rear Pillar Auxiliary Weatherstrip Using J 38778
    G01722358Courtesy of GENERAL MOTORS CORP.
  3. Open the front and rear doors.
  4. Remove the center pillar auxiliary weatherstrip using J 38778.

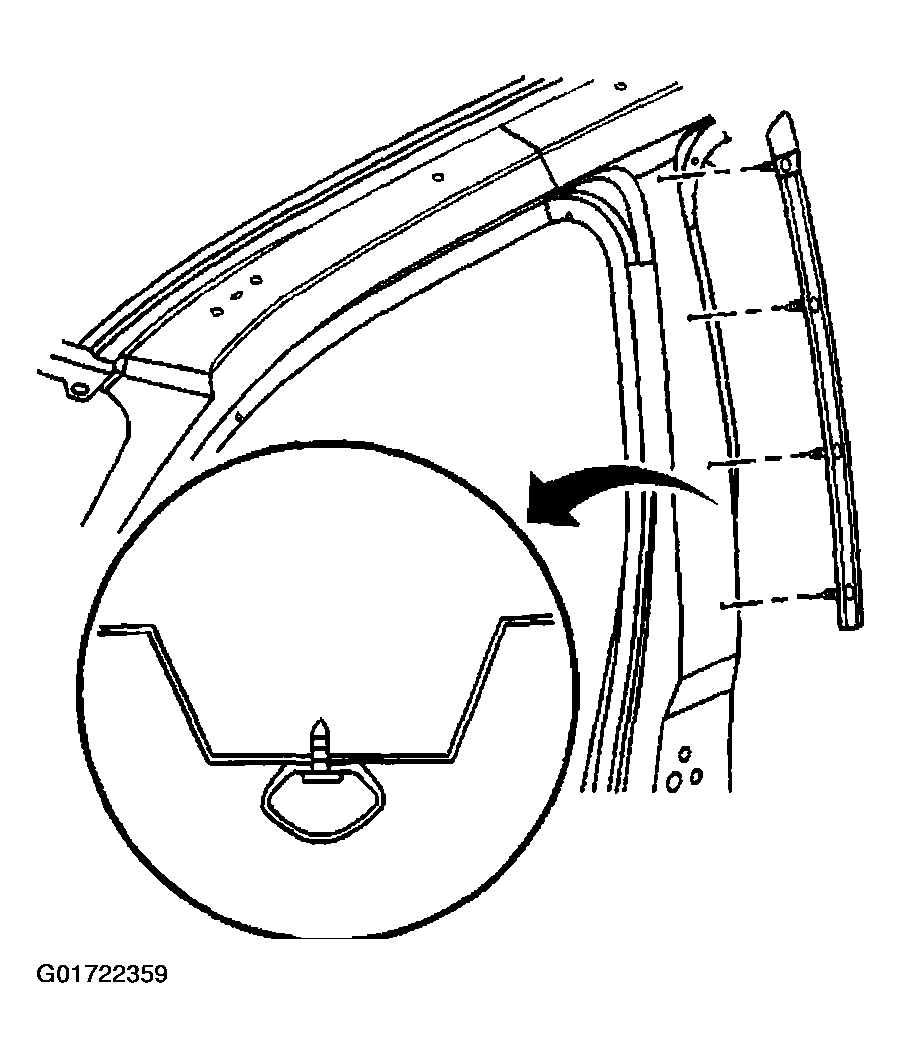

    Fig 2: Removing Center Pillar Auxiliary Weatherstrip Using J 38778
    G01722359Courtesy of GENERAL MOTORS CORP.
  5. Remove the roof-rail auxiliary weatherstrip push-in retainers from the rear pillar using J 38778.
  6. Remove the roof-rail auxiliary weatherstrip from the roof rail flange pulling from the rear to front. Bending back the roof-rail auxiliary weatherstrip onto itself to open the carrier while pulling forward will ease the removal effort.

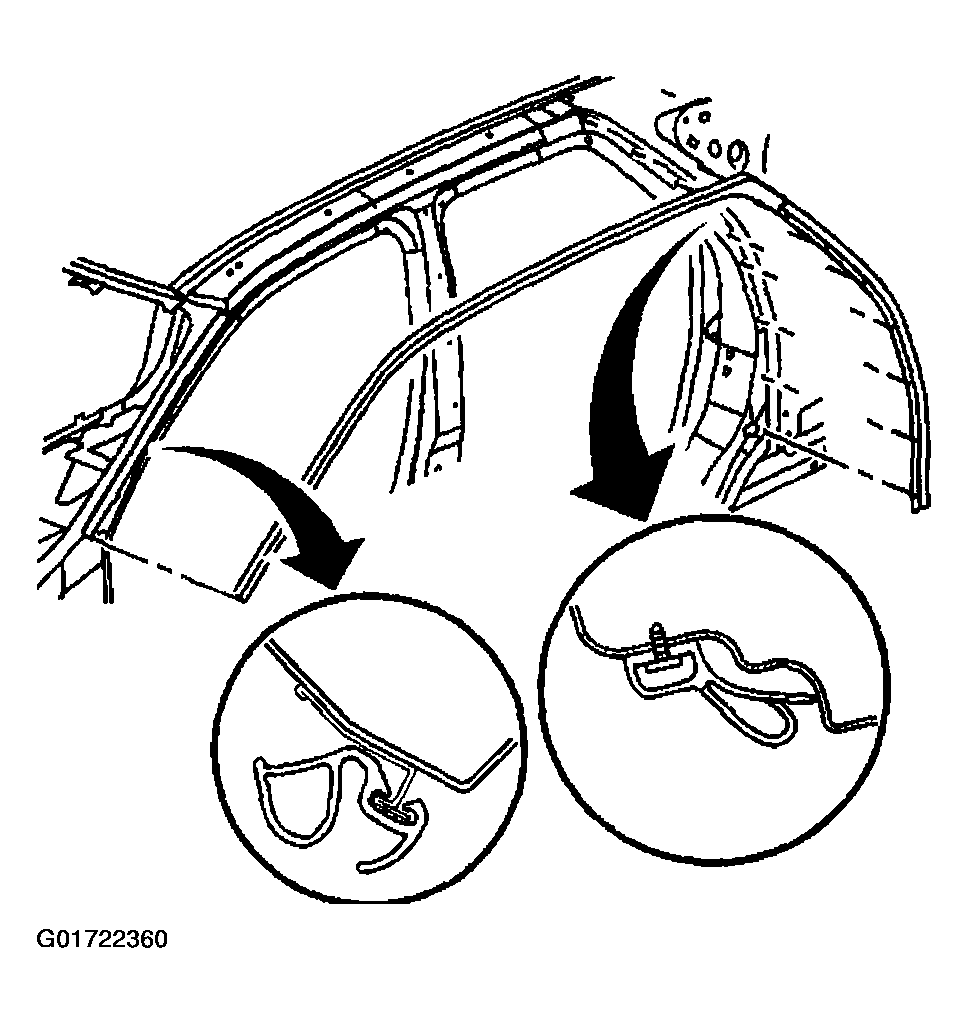

    Fig 3: Removing Roof-Rail Auxiliary Weatherstrip Push-In Retainers Using J 38778
    G01722360Courtesy of GENERAL MOTORS CORP.
