Power Window Schematics

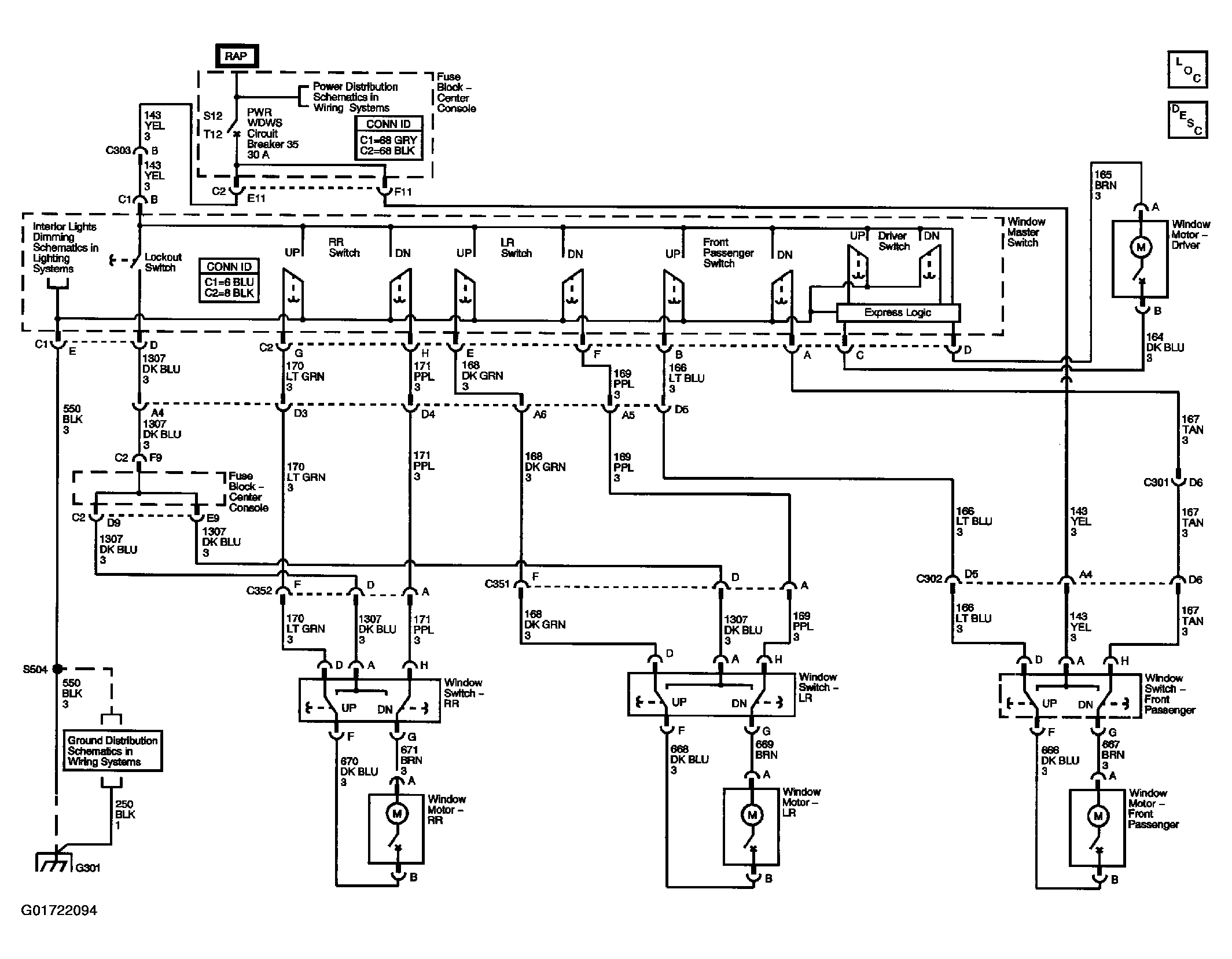

Fig 1: Power Window Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
