ABS Component Views

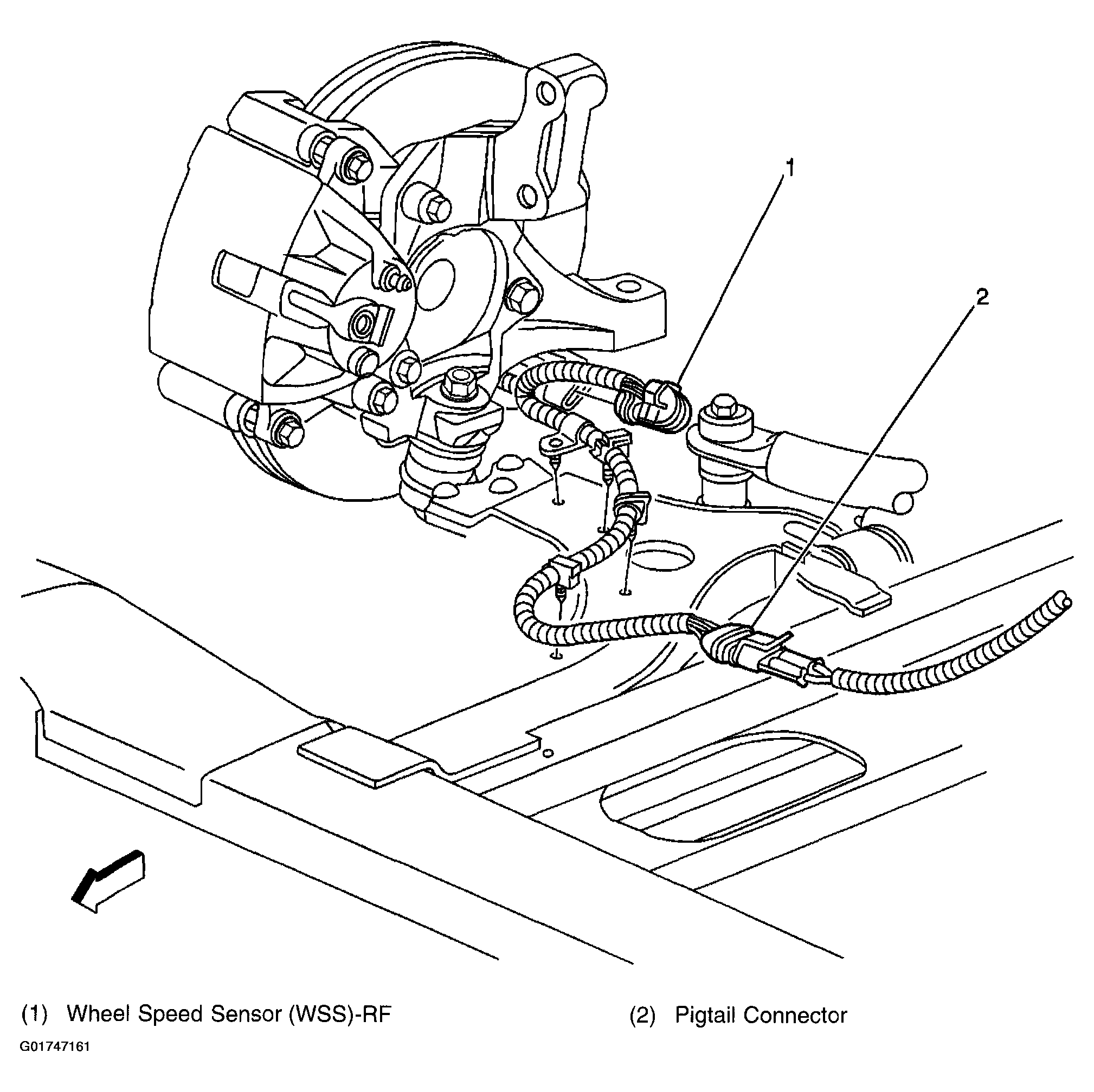

Fig 1: Right Front Wheel
G01747161Courtesy of GENERAL MOTORS CORP.

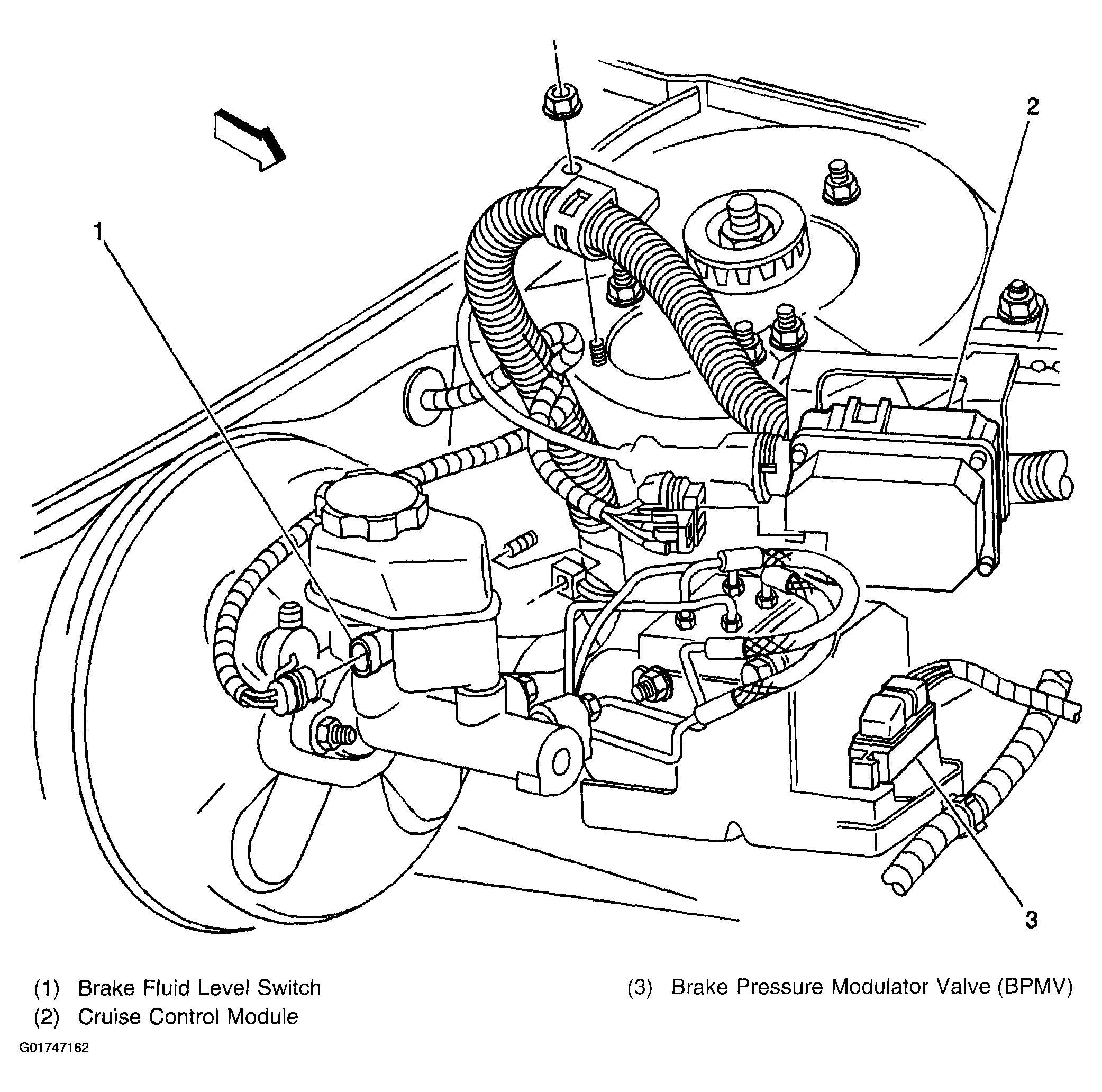

Fig 2: LR Engine Compartment
G01747162Courtesy of GENERAL MOTORS CORP.

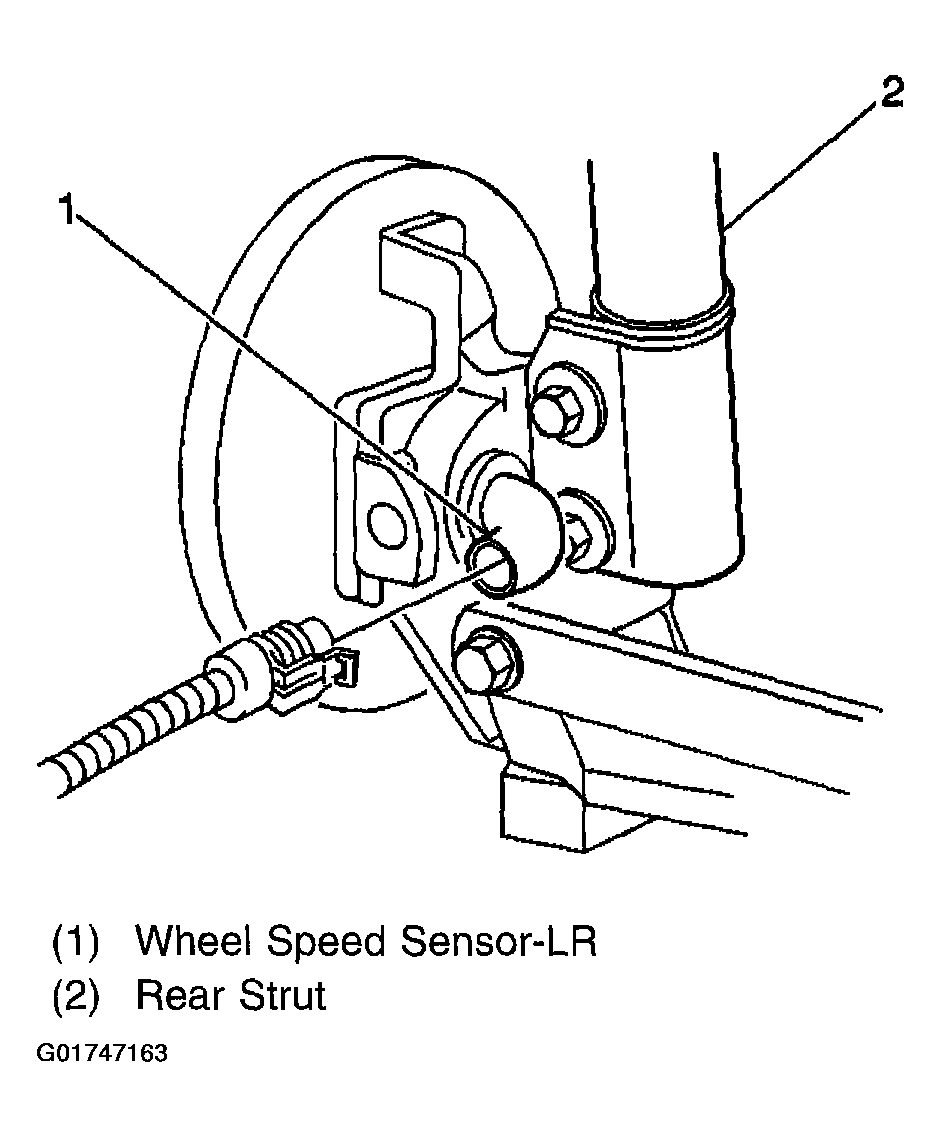

Fig 3: LR Wheel Speed Sensor
G01747163Courtesy of GENERAL MOTORS CORP.
