Removal Procedure

  1. Disconnect the front wheel speed sensor jumper harness to ABS harness connector (8).
  2. Raise and support the vehicle on a suitable hoist. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the harness (4) from the splash shield retaining clip (5).
  4. Remove the harness (4) from the control arm retaining clips (3).
  5. Disconnect the front wheel speed jumper harness connector (2) from the front wheel sensor.

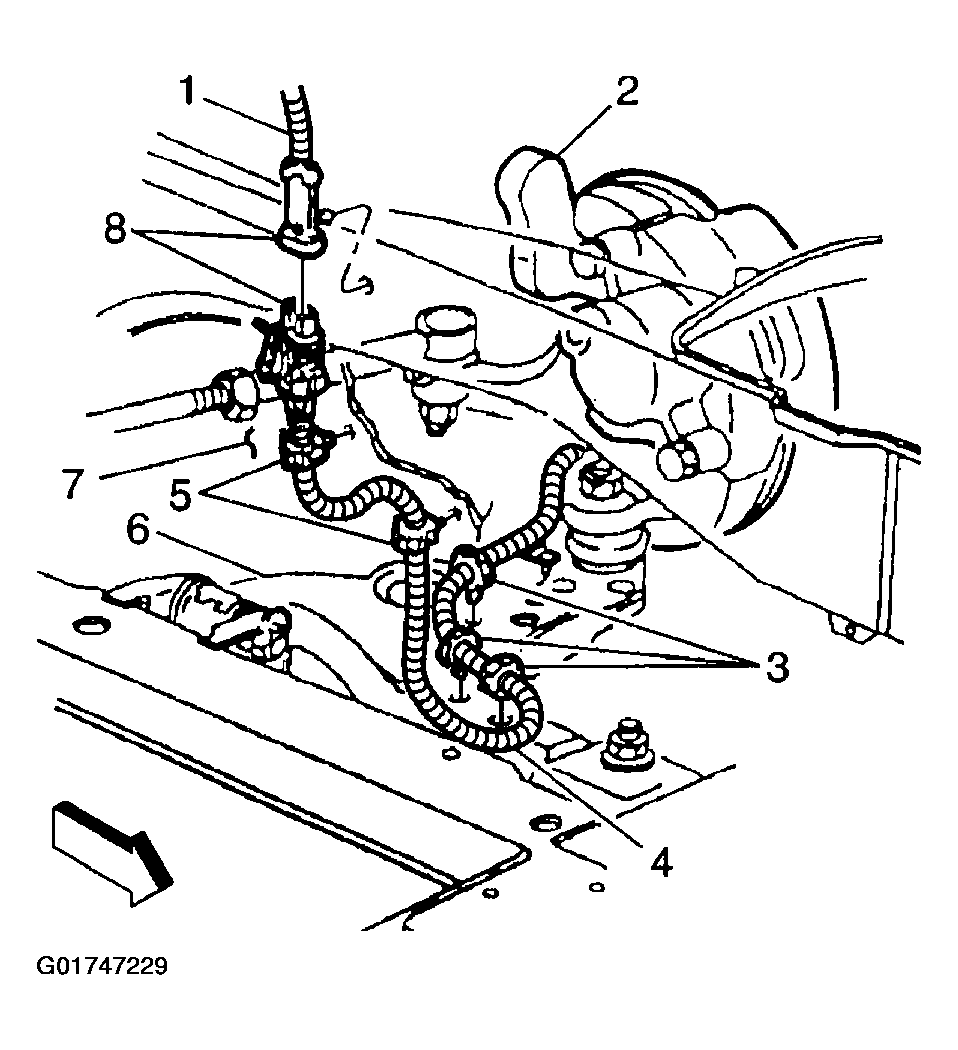

    Fig 1: Removing Front Wheel Speed Jumper Harness From Components
    G01747229Courtesy of GENERAL MOTORS CORP.
  6. Remove the front wheel speed sensor jumper harness (1).

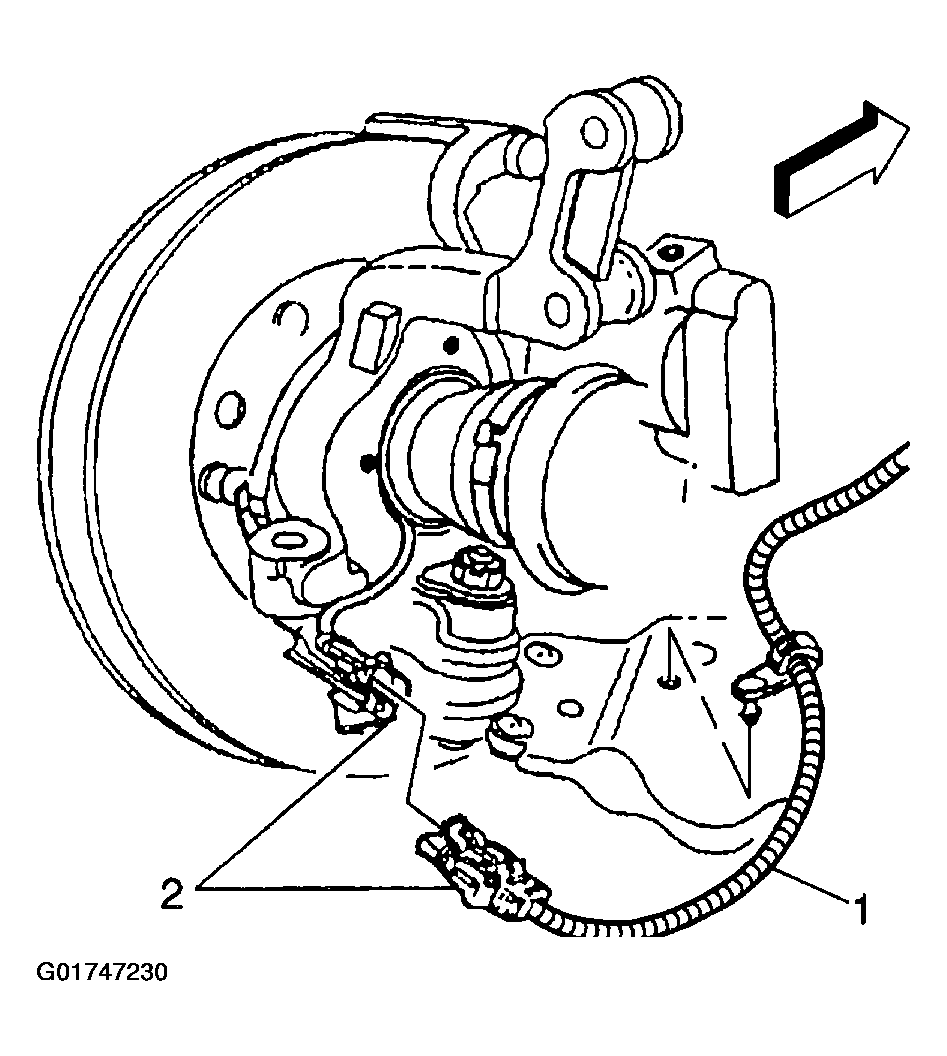

    Fig 2: Disconnecting Front Wheel Speed Jumper Harness Connector
    G01747230Courtesy of GENERAL MOTORS CORP.
