Installation Procedure

Align the front floor console to the floor.
Connect the required electrical connectors.

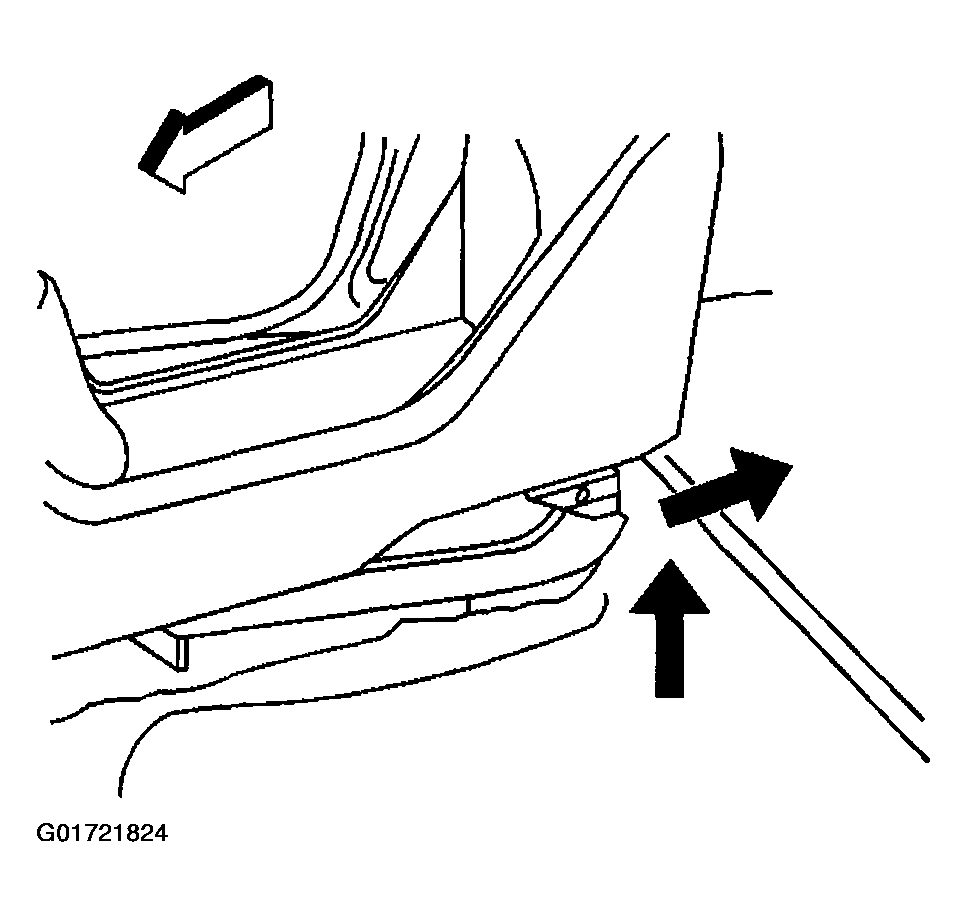

Fig 1: Aligning Front Floor Console To Floor (Aztek)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the nuts to the front of the front floor console.
Tighten

Tighten the nuts to 6 N.m (53 lb in).

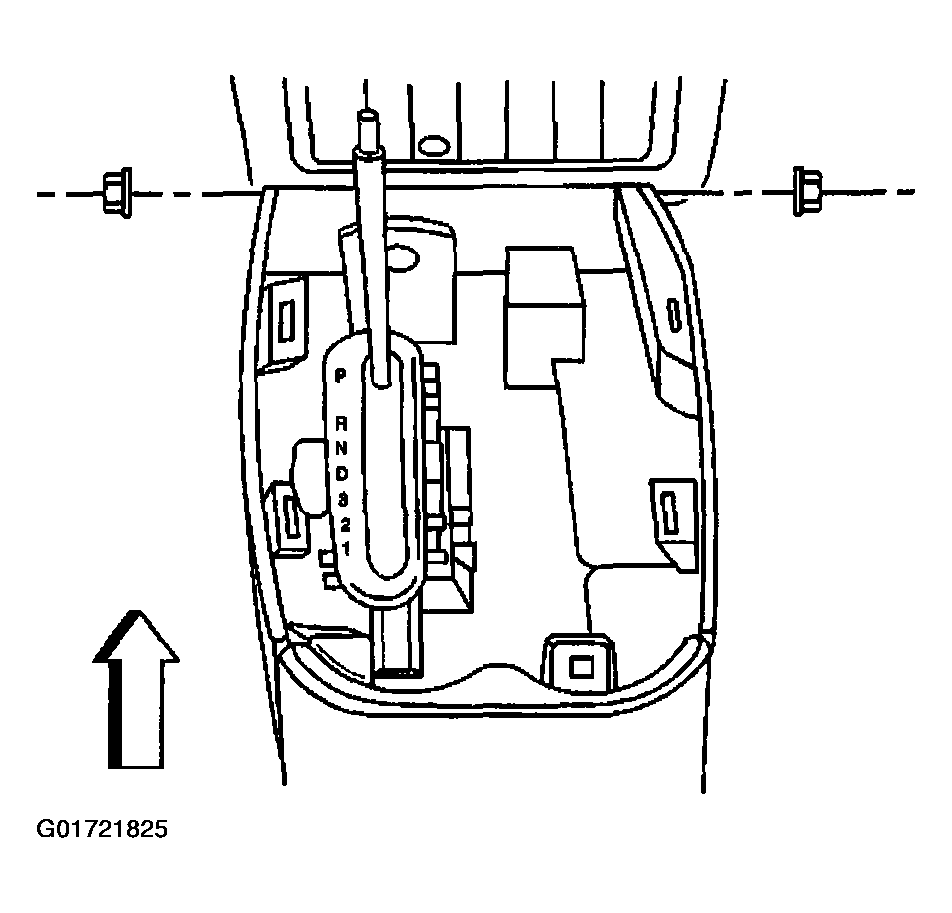

Fig 2: Installing Front Of Front Floor Console Nuts
Courtesy of GENERAL MOTORS CORP.
Install the nuts to the rear of the front floor console.
Tighten

Tighten the nuts to 6 N.m (53 lb in).
Install the front floor console trim plate. Refer to Trim Plate Replacement - Front Floor Console (Aztek) or Trim Plate Replacement - Front Floor Console (Rendezvous) .

Fig 3: Installing Rear Of Front Floor Console Nuts
Courtesy of GENERAL MOTORS CORP.
