Removal Procedure

Use a flat-bladed tool to press down and release the clip at the top of the Driver Information Center Switch.

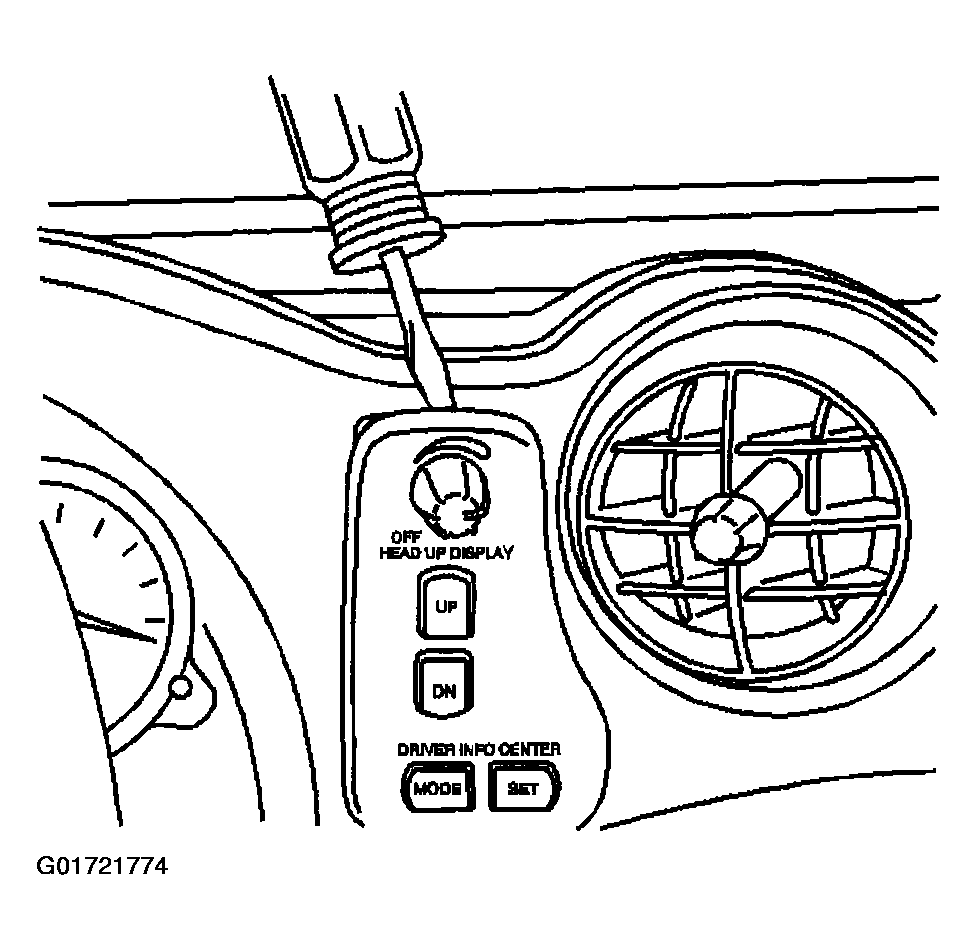

Fig 1: Releasing Driver Information Center Switch Clip
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors.
Remove the driver information center switch.

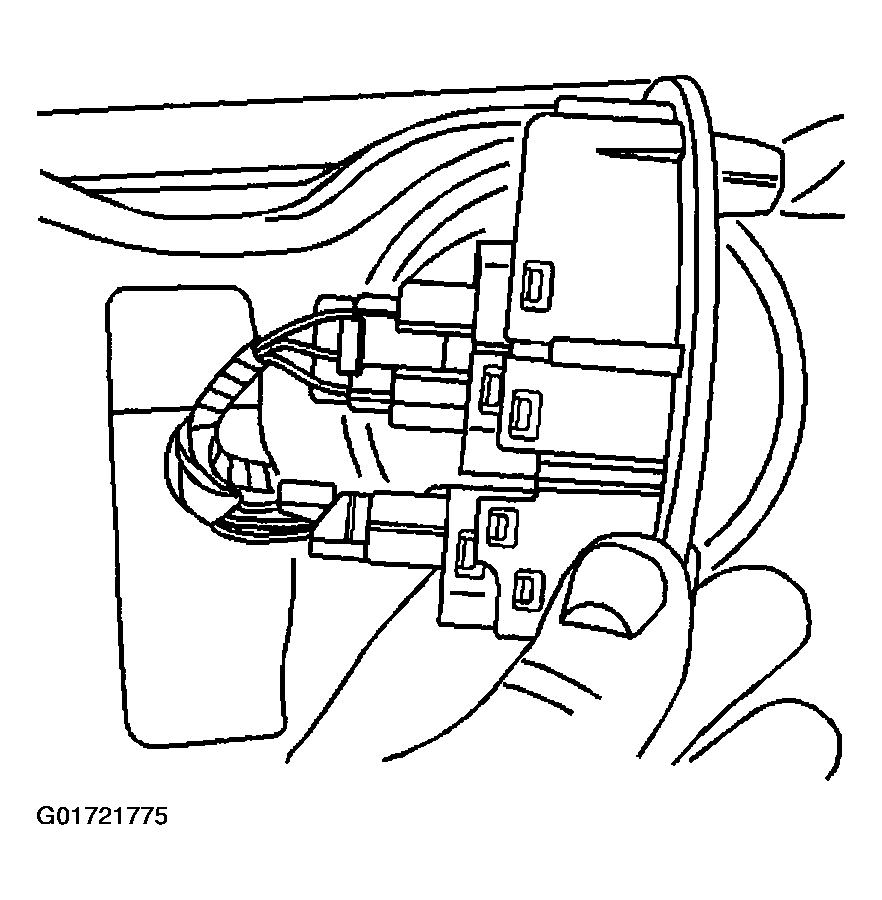

Fig 2: Disconnecting Driver Information Center Switch Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
