Installation Procedure

  1. Install the water pump gasket.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the water pump bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

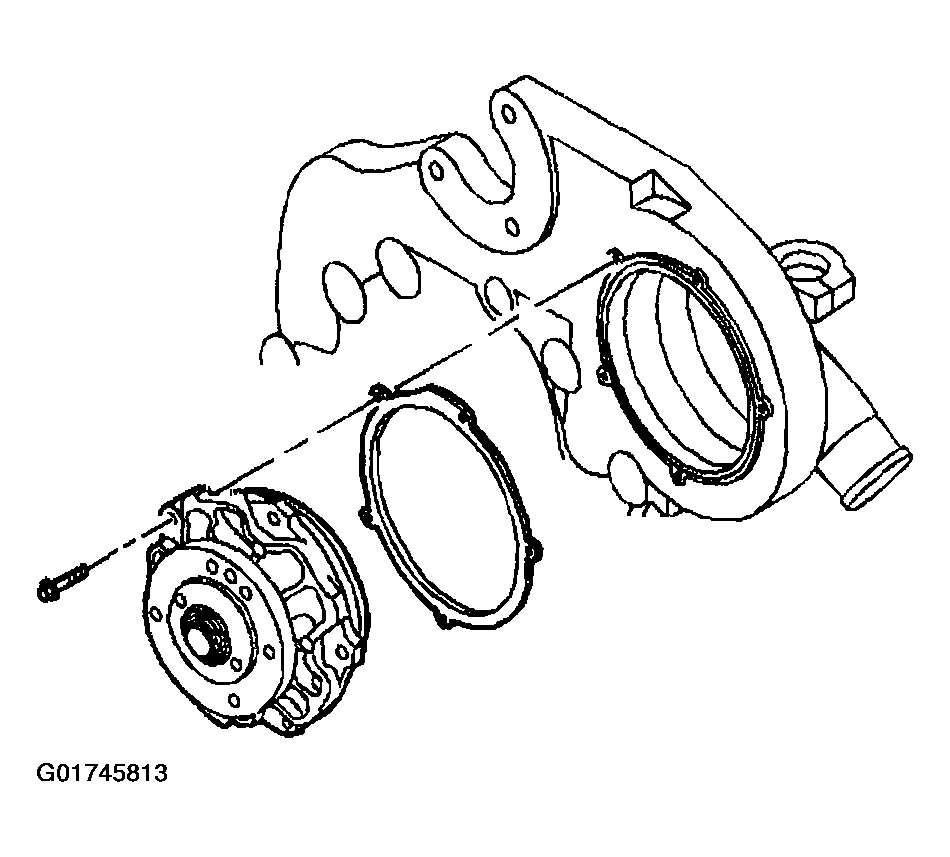

    4. Fig 1: Installing Water Pump, Gasket & Bolts
    G01745813Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.
  6. Install the drive belt. Refer to DRIVE BELT REPLACEMENT .

    Tighten

    Tighten the water pump pulley bolts to 25 N.m (18 lb in).

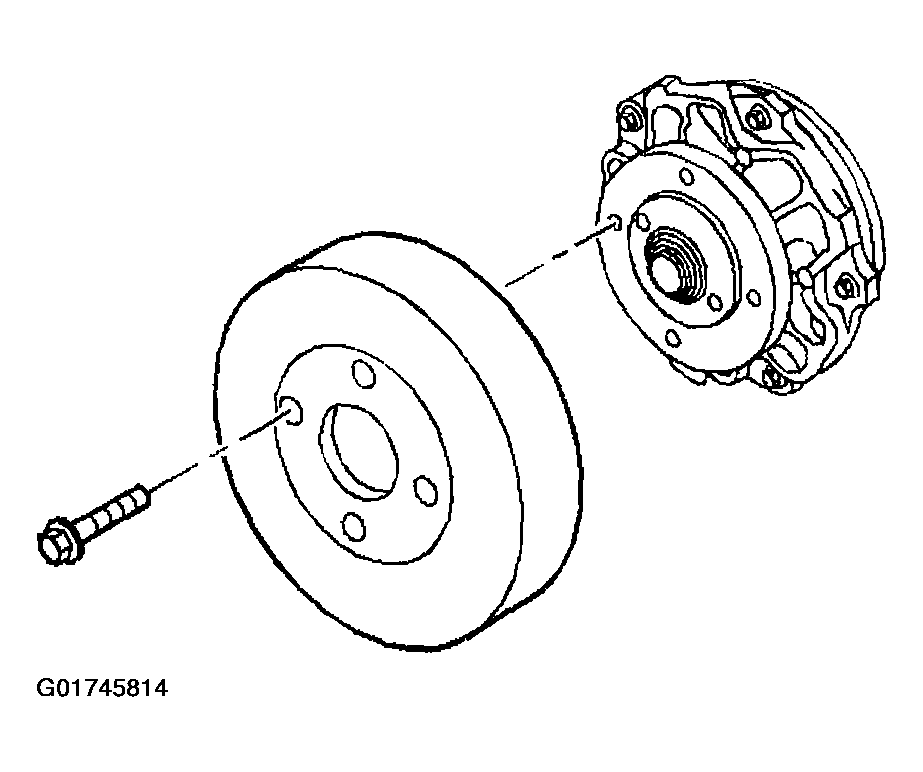

    7. Fig 2: Installing Water Pump Pulley & Bolts
    G01745814Courtesy of GENERAL MOTORS CORP.
  7. Install the drive belt guard.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .

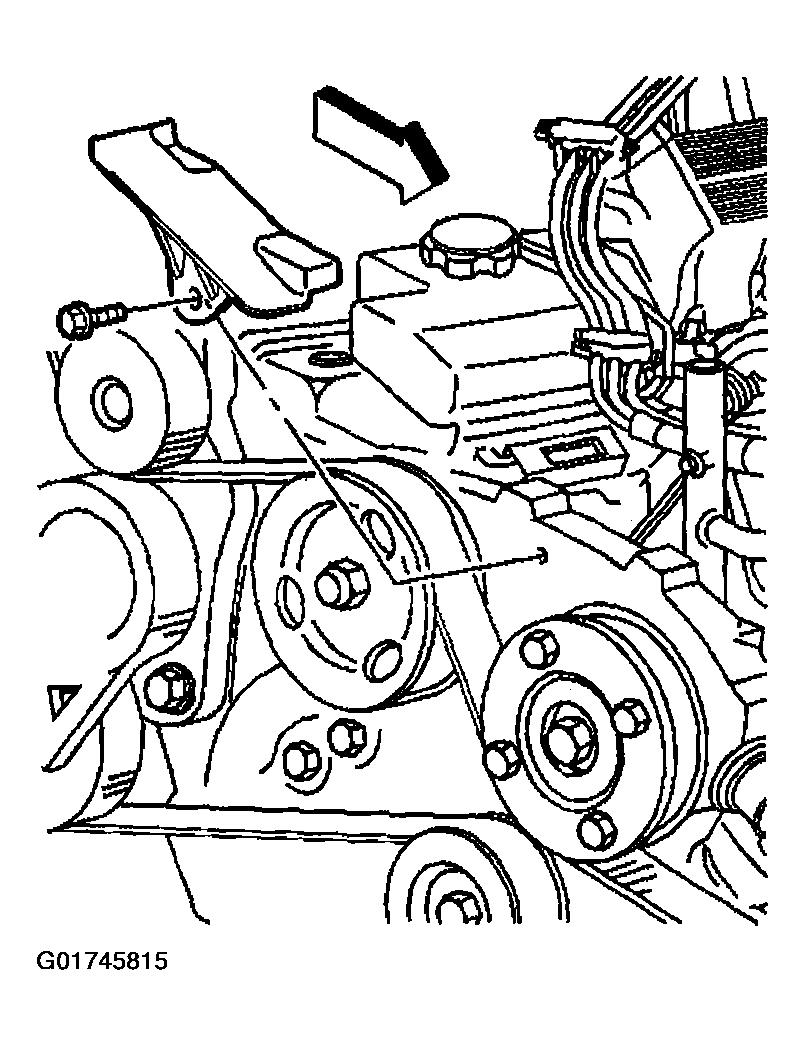

    Fig 3: Installing Drive Belt Guard
    G01745815Courtesy of GENERAL MOTORS CORP.
