Installation Procedure

  1. Remove the right engine mount strut. Refer to Engine Mount Strut Replacement - Right
  2. Install the J 45057  to the right engine mount strut bracket (1).

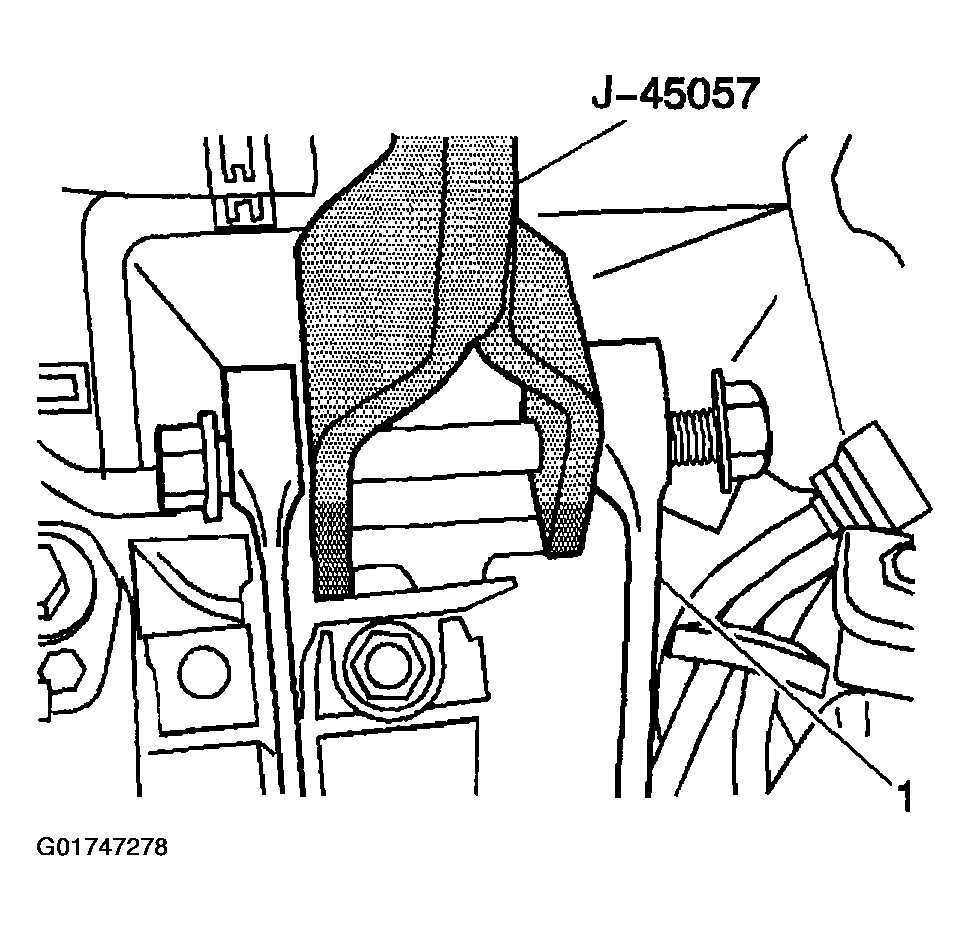

    Fig 1: Engine Support Bar Assembly (Right)
    G01747278Courtesy of GENERAL MOTORS CORP.
  3. Install the J 45057  to the left side engine lift bracket.

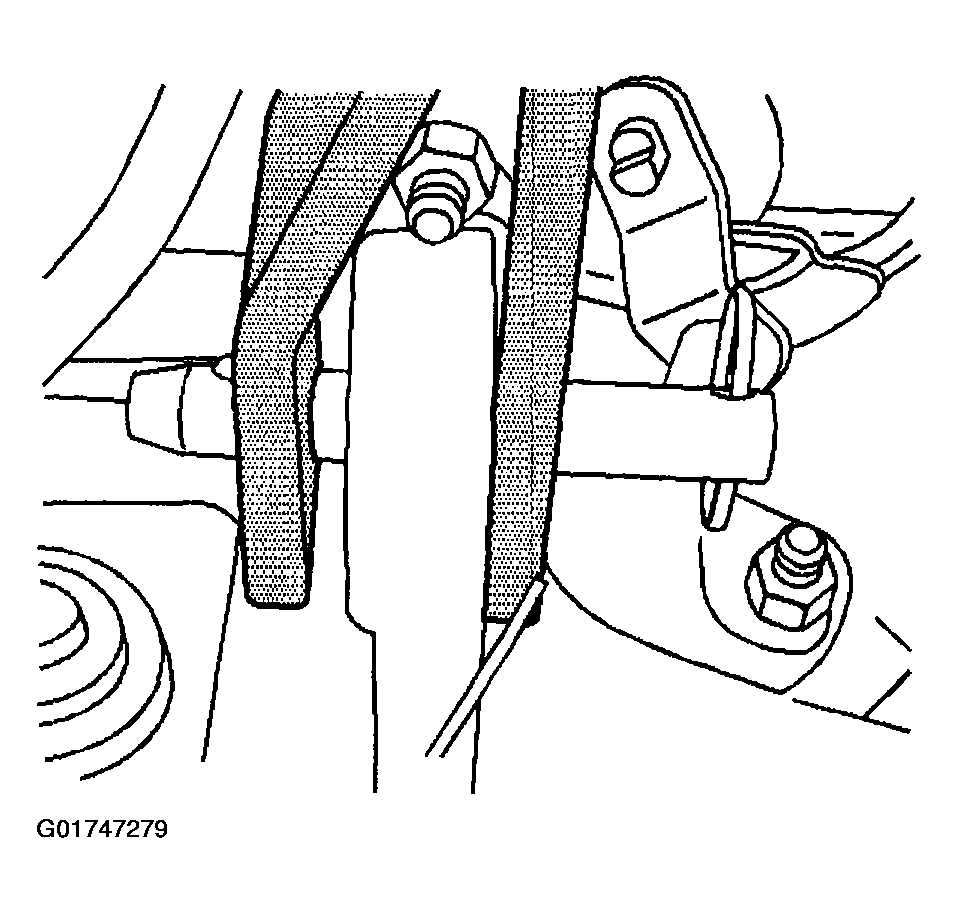

    Fig 2: Engine Support Bar Assembly (Left)
    G01747279Courtesy of GENERAL MOTORS CORP.
  4. Install the J 45057  to the right rear engine lift bracket.

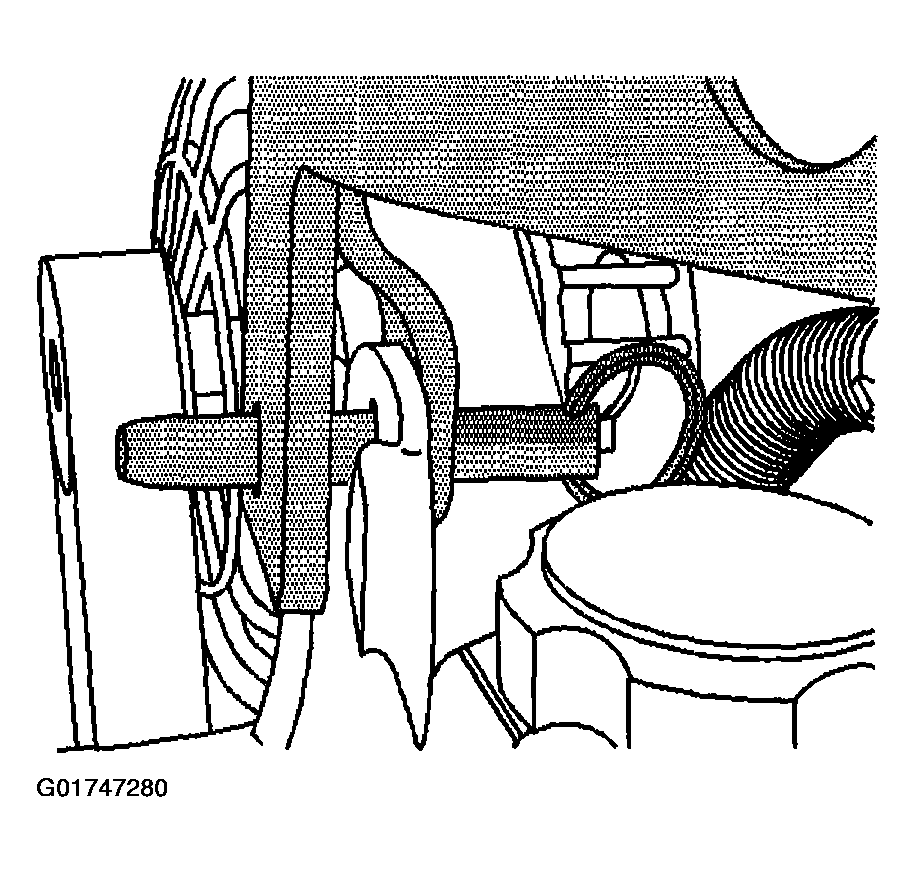

    Fig 3: Engine Support Bar Assembly (Right Rear)
    G01747280Courtesy of GENERAL MOTORS CORP.
  5. Remove the headlamps.
  6. Disconnect the hood strut assist rods from the fenders.
  7. Carefully open and secure the hood in 90 degree position.
  8. Install the J 28467-B.

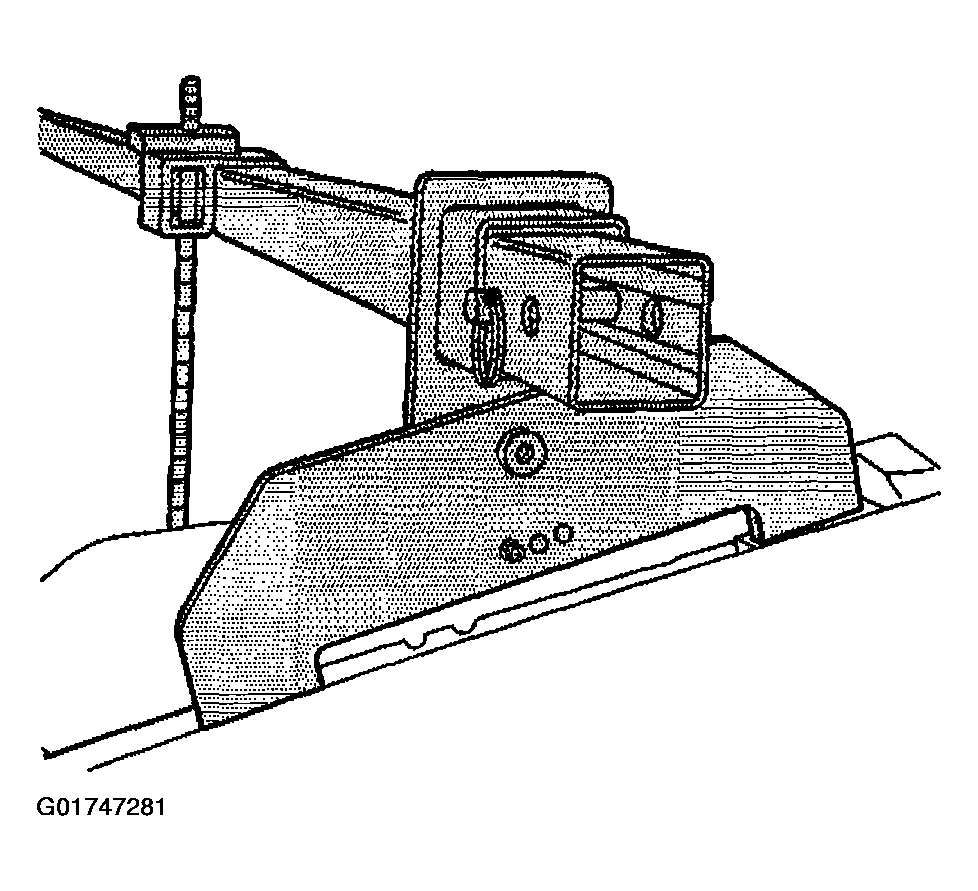

    Fig 4: Installing J 28467-B.
    G01747281Courtesy of GENERAL MOTORS CORP.
  9. Install the J28467-7A  (1) and the J28467-34  to the J 28467-500  and the rear hole on the right side of the J-45057 (2).

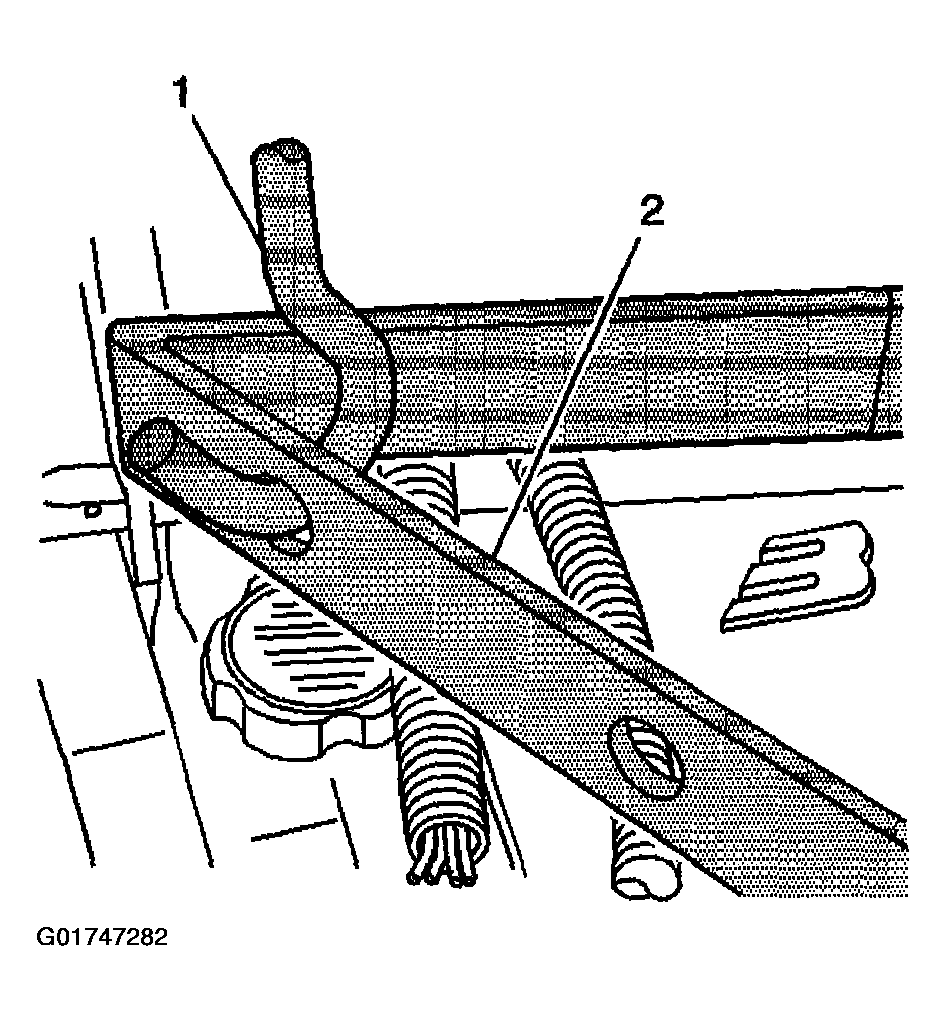

    Fig 5: Installing J28467-7A (1) & J-45057 (2) - (Right Side)
    G01747282Courtesy of GENERAL MOTORS CORP.
  10. Install the J 28467-7A  (1) and the J 28467-34  to the J 28467-500  and the left side of the J 45057 (2).

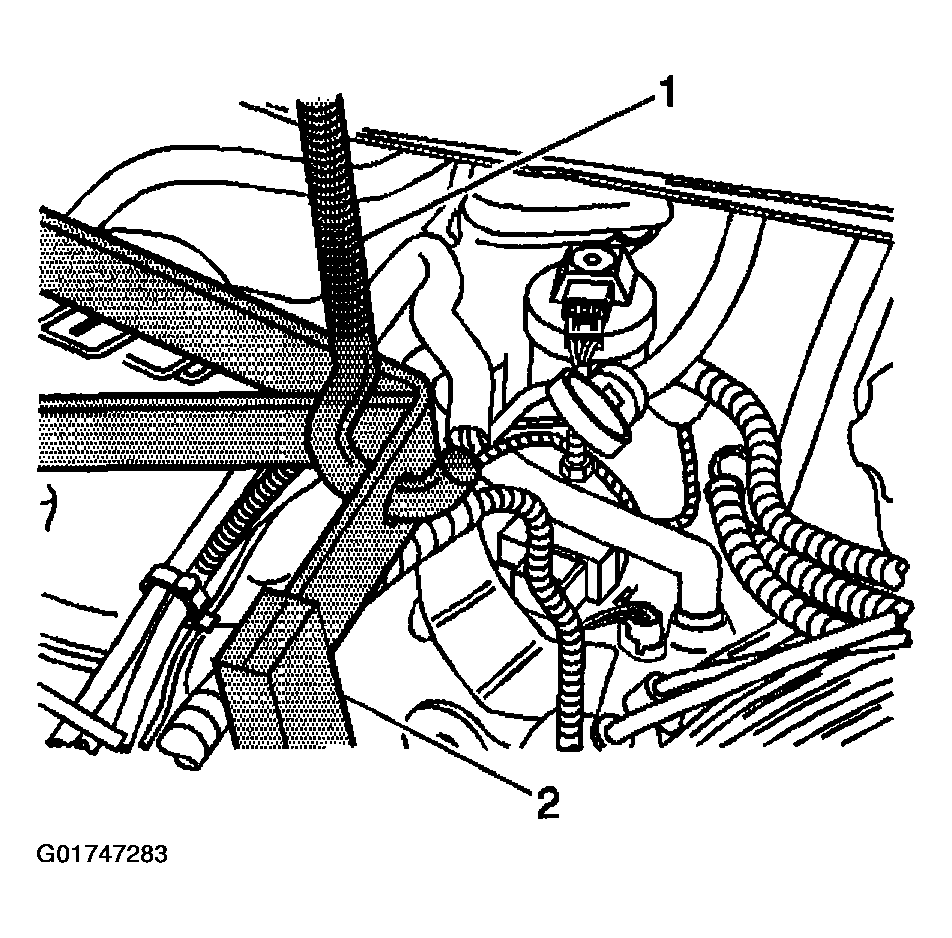

    Fig 6: Installing J28467-7A (1) & J-45057 (2) - (Left Side)
    G01747283Courtesy of GENERAL MOTORS CORP.
  11. Gently tighten the J 28467-34  lift hook wing nuts.
  12. Raise the vehicle.
  13. Remove the lower air baffle assembly.
  14. Remove the engine mount bolt.
  15. Install the J 45057-2  to the core support.

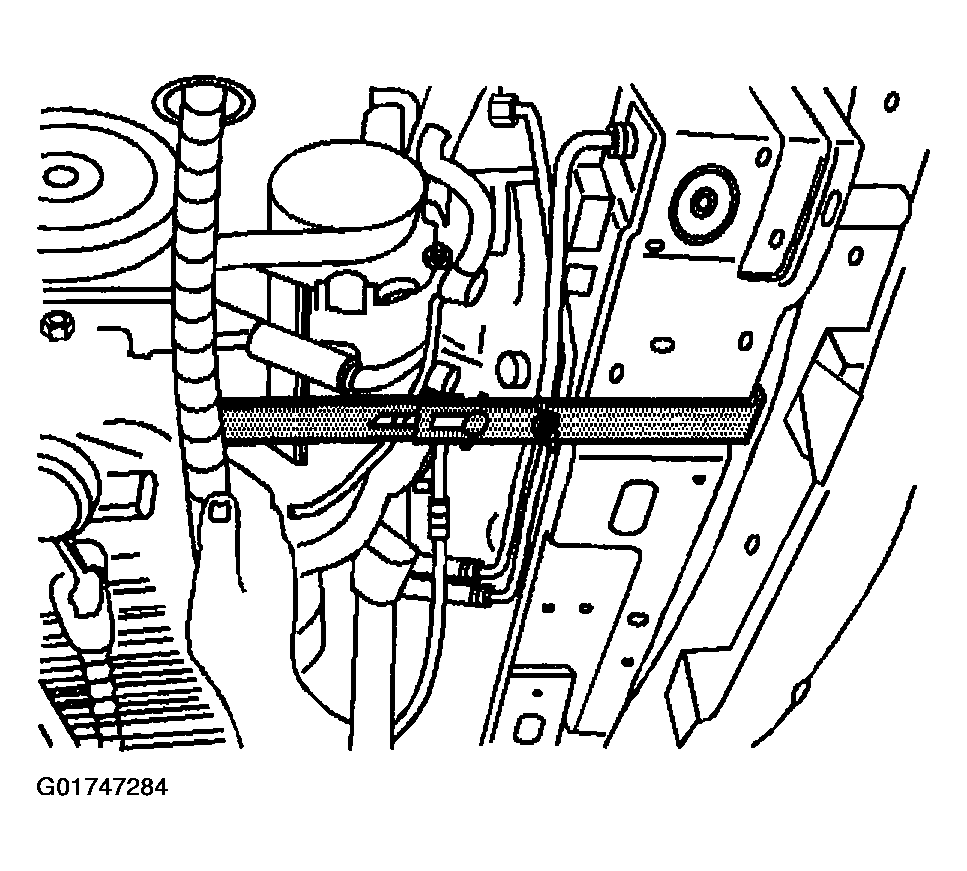

    Fig 7: Installing J 45057-2 To Core Support
    G01747284Courtesy of GENERAL MOTORS CORP.
  16. Install the J 45057-2  to the engine using the engine mount bolt.

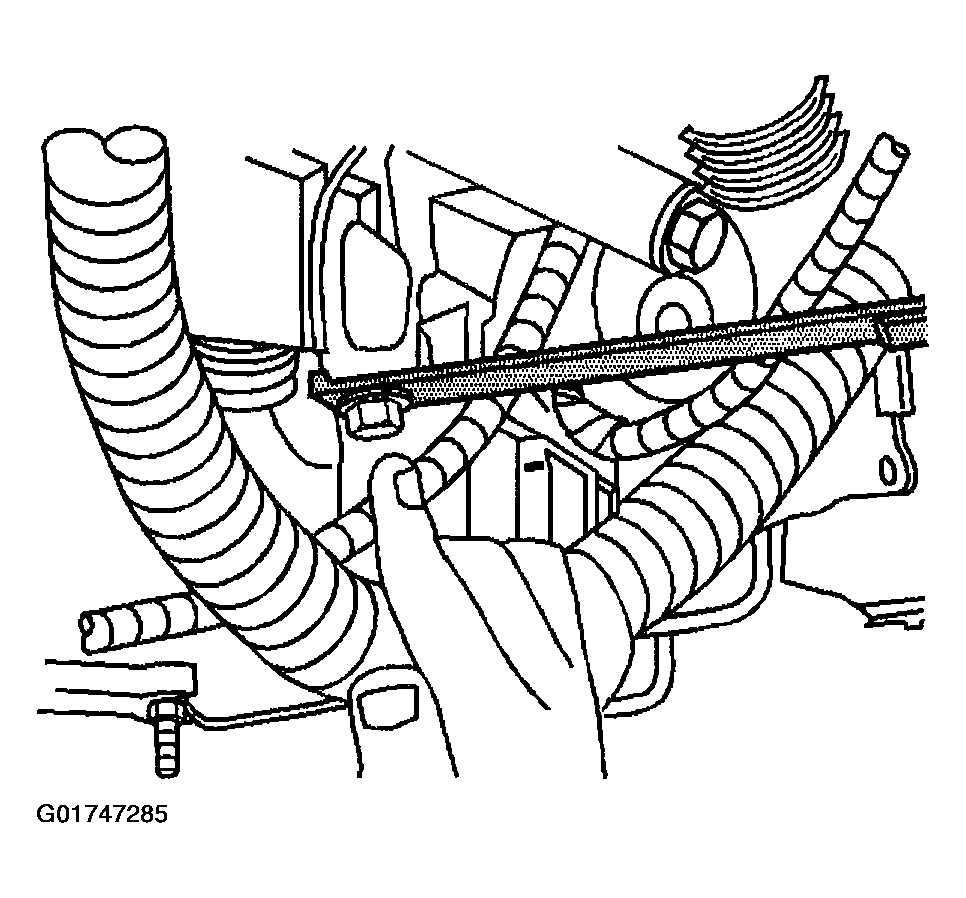

    Fig 8: Installing J 45057-2 To Engine
    G01747285Courtesy of GENERAL MOTORS CORP.
  17. Assemble the J 45057-2  and hand tighten the fasteners.
    Fig 9: Hand Tighten Fasteners
    G01747286Courtesy of GENERAL MOTORS CORP.
