Engine Lift Bracket and Generator Bracket Installation

  1. Install the front engine lift hook.
  2. Install the generator bracket.
  3. Install the generator bracket bolts.

    Tighten

    Tighten the generator bracket bolts in sequence (1, 2, 3) to 50 N.m (37 ft. lbs).

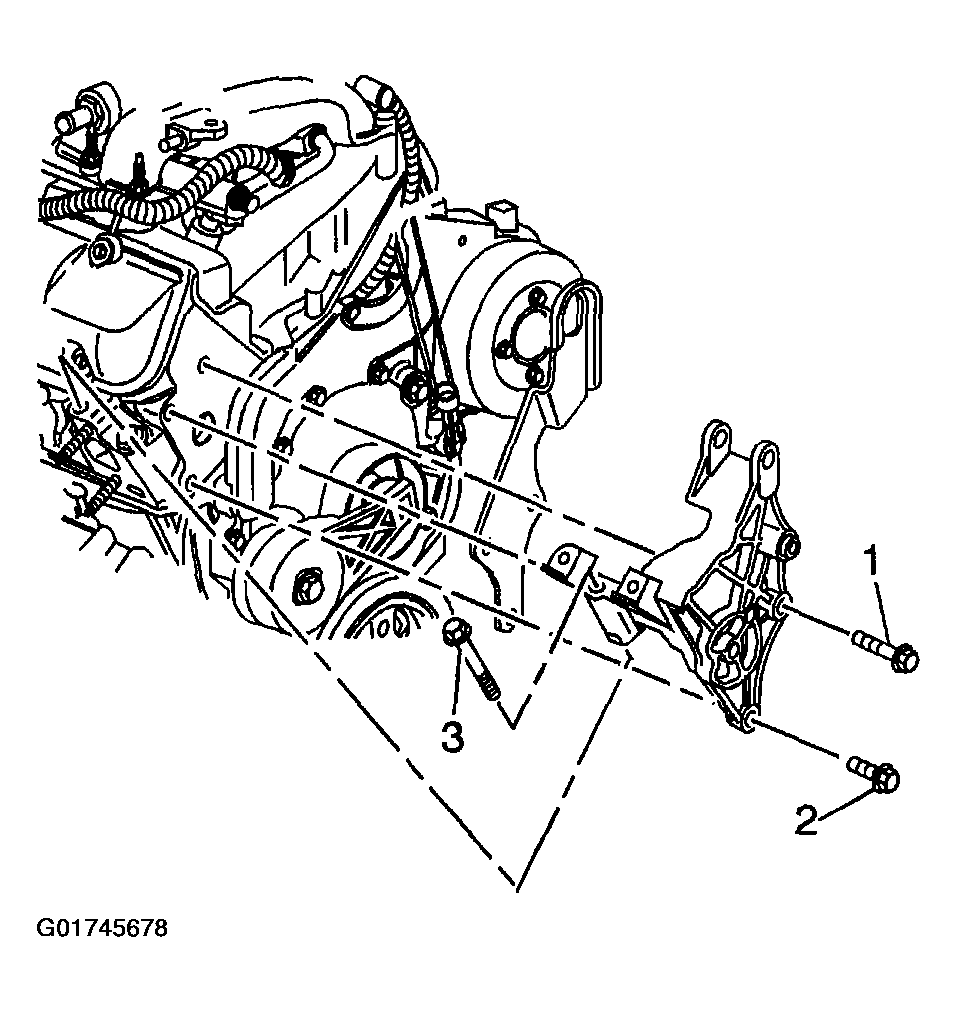

    Fig 1: Installing Lift Bracket & Generator Bracket
    G01745678Courtesy of GENERAL MOTORS CORP.
